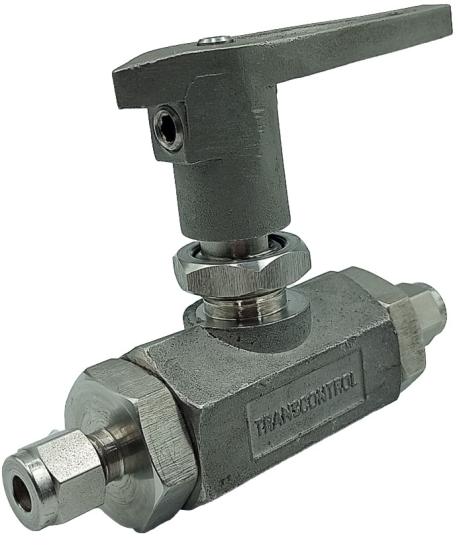

TransControl Stainless Steel Ball Valve TVE 065 1/4 OD/DA 10000 Psi
4 in stock- Code
- WS6610
- Category
- Automation Control Components
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Transcontrol
- SKU / Internal code
- WS6610
- Product type
- Automation Control Components
- Condition
- Condition shown in specs
- Stock
- 4 in stock
- Simple and efficient
- The design is simple, ensuring effective sealing and ease of operation.
- Fast operation
- Can be opened or closed quickly (usually with a quarter turn, or 90 degrees).
- Reliable sealing
- Offers efficient sealing, even at high pressures.
- Low maintenance
- Due to the simplicity of the mechanism, it requires little maintenance.
- Application
- Primarily recommended for shut-off and control services in gas, liquid, and vapor lines. Subsea application with the use of an adapter for ROV interface.
- Working Pressure
- 10000 Psi
- Connection
- 1/4" OD/DA Double Ferrule Threaded (NPT), Ferrule for tubing (OD), BSP, SW (Socket Weld).
- Construction Material
- Stainless Steel ASTM
- Sealing
- Peek, KEL-F or PTFE.
- Sealing type
- Soft Seal.
- Weight
- 0.635 kg
About this item
New product out of manufacturer's box
Brand: TransControl
Model: TVE 065 F
A ball valve is a type of valve used to control the flow of fluids in a system, whether liquid or gas. Its operation is based on a perforated ball that rotates inside the valve body to open or close the flow. When the ball's bore is aligned with the flow, the fluid passes freely; when the ball is rotated 90 degrees, the flow is blocked.
Simple and efficient: The design is simple, ensuring effective sealing and ease of operation.
Fast operation: Can be opened or closed quickly (usually with a quarter turn, or 90 degrees).
Reliable sealing: Offers efficient sealing, even at high pressures.
Low maintenance: Due to the simplicity of the mechanism, it requires little maintenance.
TVE valves are suitable for
meeting the needs of quick shut-off of
gas or liquid flows through a ball
with rotary movement, supported by two seats.
Application: Primarily recommended for shut-off and control services in gas, liquid, and vapor lines. Subsea application with the use of an adapter for ROV interface.
Technical Specification:
Working Pressure: 10000 Psi
Connection: 1/4" OD/DA Double Ferrule Threaded (NPT), Ferrule for tubing (OD), BSP, SW (Socket Weld).
Construction Material: Stainless Steel ASTM
A351 GR CF8m, ASTM A564 tp630, AISI 316 and carbon steel
(other materials upon request).
Sealing: Peek, KEL-F or PTFE.
Sealing type: Soft Seal.
Date 09/16/2022
Weight: 0.635KG
Dimensions 9x9x11
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may be applied. If the operation is subject to this tax, the responsibility for payment is exclusively the buyer's.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Review the product condition, availability, and technical specifications below before placing your order. For resale or special commercial terms, contact our team before purchasing.
TransControl Stainless Steel Ball Valve TVE 065 1/4 OD/DA 10000 Psi
New product out of manufacturer's box
Brand: TransControl
Model: TVE 065 F
A ball valve is a type of valve used to control the flow of fluids in a system, whether liquid or gas. Its operation is based on a perforated ball that rotates inside the valve body to open or close the flow. When the ball's bore is aligned with the flow, the fluid passes freely; when the ball is rotated 90 degrees, the flow is blocked.
Key features:
Simple and efficient: The design is simple, ensuring effective sealing and ease of operation.
Fast operation: Can be opened or closed quickly (usually with a quarter turn, or 90 degrees).
Reliable sealing: Offers efficient sealing, even at high pressures.
Low maintenance: Due to the simplicity of the mechanism, it requires little maintenance.
TVE valves are suitable for
meeting the needs of quick shut-off of
gas or liquid flows through a ball
with rotary movement, supported by two seats.
Application: Primarily recommended for shut-off and control services in gas, liquid, and vapor lines. Subsea application with the use of an adapter for ROV interface.
Technical Specification:
Working Pressure: 10000 Psi
Connection: 1/4" OD/DA Double Ferrule Threaded (NPT), Ferrule for tubing (OD), BSP, SW (Socket Weld).
Construction Material: Stainless Steel ASTM
A351 GR CF8m, ASTM A564 tp630, AISI 316 and carbon steel
(other materials upon request).
Sealing: Peek, KEL-F or PTFE.
Sealing type: Soft Seal.
Date 09/16/2022
Weight: 0.635KG
Dimensions 9x9x11
