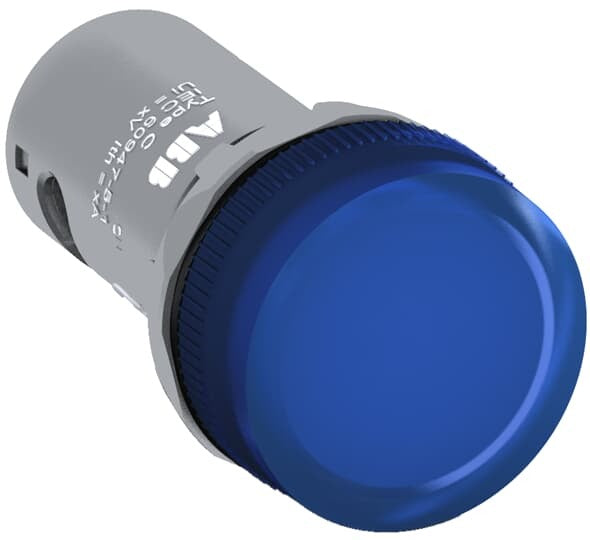

Pilot Light BLUE ABB CL2-507L 1SFA619403R5074 48-60vdc
Only 2 left- Code
- WS1612
- GTIN
- 7320500556214
- Category
- Traffic light
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- ABB
- SKU / Internal code
- WS1612
- GTIN
- 7320500556214
- Product type
- Traffic light
- Condition
- Condition shown in specs
- Stock
- Only 2 left
- A luz piloto CL2-507L é
- Compacta - Luz piloto - Cabeça de luz piloto - Azul - Iluminada - 48...60V AC/DC
- Temperatura do ar ambiente
- Operação -25 ... +70 °C
- Cor
- Azul
- Tipo de atuador
- Cabeça de luz piloto
- Iluminação
- Iluminado
- Tipo de lâmpada
- 48...60 Vca/cc, LED integrado
- Grau de proteção
- Frontal IP66
- Tipo de invólucro NEMA
- Tipo1
- Grau de poluição
- 3
- Frequência nominal (f)
- Circuito de Alimentação 50/60 Hz
- Tensão operacional nominal
- Circuito de Alimentação 48...60V CA/CC V
- Capacidade de conexão
- Flexível com virola 1 x 0,75...2,5 mm²
About this item
Pilot Light BLUE ABB CL2-507L 1SFA619403R5074 48-60vdc
New product out of the manufacturer's box
Model: CL2-507L 1SFA619403R5074
CL2-507L pilot light
A pilot light is a small lamp used in electrical or electronic devices to indicate the operating status. It is often used to signal when a device is on, operating, or in a specific operating mode.
The CL2-507L pilot light is: Compact - Pilot light - Pilot light head - Blue - Illuminated - 48...60V AC/DC
This pilot light is part of ABB's compact line, the most efficient complete solution available, reducing installation time and cost.
The compact line has a high level of dust and water resistance.
Ambient air temperature: Operation -25 ... +70 °C
Storage -40 ... +85 °C
Actuator type: Pilot light head
Illumination: Illuminated
Lamp type: 48...60 V AC/DC, integrated LED
Protection degree: Front IP66
NEMA enclosure type: Type 1
Pollution degree: 3
Rated frequency (f): Supply Circuit 50/60 Hz
Rated operating voltage: Supply Circuit 48...60V AC/DC V
Connection capacity: Flexible with ferrule 1 x 0.75...2.5 mm²
Flexible with ferrule 2
x 0.75...2.5 mm² Flexible with insulated ferrule 1 x 0.75...2.5 mm²
Flexible with insulated ferrule 2 x 0.75...2.5 mm²
Flexible 1 x 0.75 ... 2.5 mm²
Flexible 2 x 0.75 ... 2.5 mm²
Solid 1 x 0.75...2.5 mm²
Solid 2 x 0.75...2.5 mm²
Connection type: Screw clamp
Terminal type: Screw terminals
Tightening torque: 0.9 N·m
Wire stripping length: 8mm
UL/CSA Technical
UL/CSA connection capacity: 1x 18...14 AWG
Date: 01/09/2023
Measurements: 5x3x3
Locator: B13P2B
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may be incurred. If the operation is subject to this tax, the responsibility for payment lies exclusively with the buyer.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Pilot Light BLUE ABB CL2-507L 1SFA619403R5074 48-60vdc
New product out of the manufacturer's box
Brand: ABB
Model: CL2-507L 1SFA619403R5074
CL2-507L pilot light
A pilot light is a small lamp used in electrical or electronic devices to indicate the operating status. It is often used to signal when a device is on, operating, or in a specific operating mode.
The CL2-507L pilot light is: Compact - Pilot light - Pilot light head - Blue - Illuminated - 48...60V AC/DC
This pilot light is part of ABB's compact line, the most efficient complete solution available, reducing installation time and cost.
The compact line has a high level of dust and water resistance.
Technical
Ambient air temperature: Operation -25 ... +70 °C
Storage -40 ... +85 °C
Color: Blue
Actuator type: Pilot light head
Illumination: Illuminated
Lamp type: 48...60 V AC/DC, integrated LED
Protection degree: Front IP66
Front IP67
Front IP69K
Terminals IP20
NEMA enclosure type: Type 1
Type 12
Type 13
Type 3R
Type 4
Type 4X
Pollution degree: 3
Rated frequency (f): Supply Circuit 50/60 Hz
Rated operating voltage: Supply Circuit 48...60V AC/DC V
Connection capacity: Flexible with ferrule 1 x 0.75...2.5 mm²
Flexible with ferrule 2
x 0.75...2.5 mm² Flexible with insulated ferrule 1 x 0.75...2.5 mm²
Flexible with insulated ferrule 2 x 0.75...2.5 mm²
Flexible 1 x 0.75 ... 2.5 mm²
Flexible 2 x 0.75 ... 2.5 mm²
Solid 1 x 0.75...2.5 mm²
Solid 2 x 0.75...2.5 mm²
Connection type: Screw clamp
Terminal type: Screw terminals
Tightening torque: 0.9 N·m
Wire stripping length: 8mm
UL/CSA Technical
UL/CSA connection capacity: 1x 18...14 AWG
2x 18...14 AWG
Date: 01/09/2023
Weight: 0.020
Measurements: 5x3x3
Locator: B13P2B
