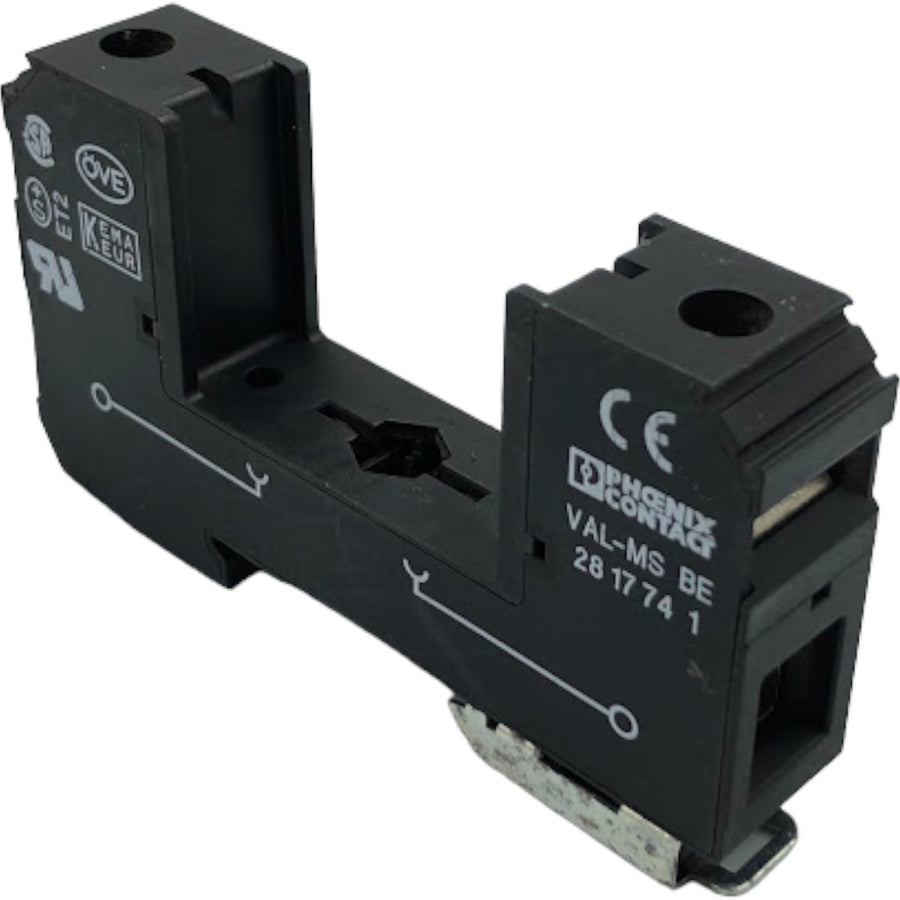

Phoenix Contact VAL-MS BE 2817141 Base Element
NEW product out of manufacturer's box
Brand: Phoenix Contact
Model: VAL-MS BE 2817141
Type 2 surge protection base element
Base for Type 2 arrester from the VALVETRAB MS series. Version: 1-channel
For mounting in a touch-proof enclosure. For applications with UC 500 V, lateral clearances and clearances in the connection area of at least 5 mm between different active parts, including grounded parts, must be observed.
Product type Base element
Product family VALVETRAB MS
Type of protection according to IEC II
Format Base element, DIN rail mounting
Number of poles 1
Indication of faulty surge protection none
Article revision 20
Insulation properties
Overvoltage category III
Pollution degree 2
Nominal frequency fN 50 Hz (60 Hz)
Connection type Screw connection
Insulation length 16 mm
Rated frequency fN 50 Hz (60 Hz)
Maximum continuous operating voltage UC 600 V AC
Nominal load current IL 80 A
Short-circuit withstand current ISCCR 25 kA
Date: 27/08/2024
Weight: 0.068Kg
Measurements: 10X15X24
