Phoenix Contact UK5-HESI Fuse Terminal Block 3004100 6.3A 800V
Last unit- Code
- WS1141
- GTIN
- 4017918090623
- Category
- Born
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Phoenix Contact
- SKU / Internal code
- WS1141
- GTIN
- 4017918090623
- Product type
- Born
- Condition
- Condition shown in specs
- Stock
- Last unit
- Weight
- 0,02 g
- Dimensions
- 8x5x1
About this item

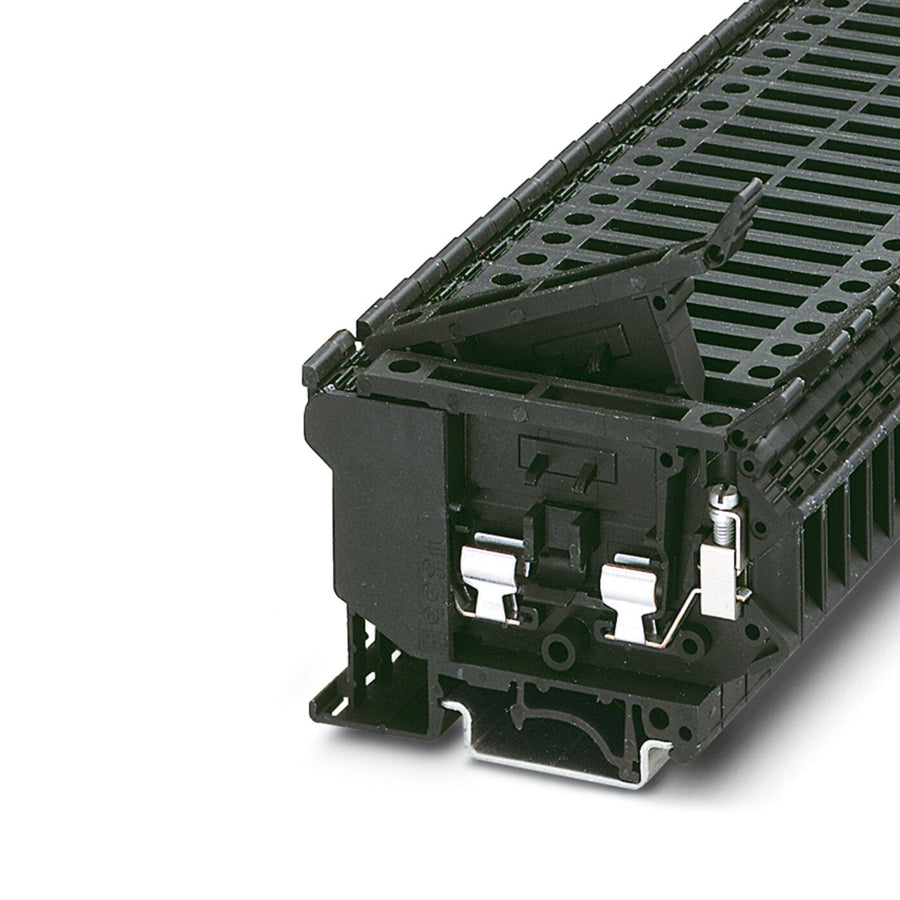

Phoenix Contact UK5-HESI 3004100 6.3A 800V Fuse Terminal Block
New product, out of manufacturer's box
Brand: Phoenix Contact
Model: UK5-HESI 3004100
Fuse terminal blocks, fuse type: Glass/ceramic/..., fuse type: G / 5 x 20 / 5 x 25 / 5 x 30, rated voltage: 800 V, rated current: 6.3 A, number of poles: 1, connection type: Screw connection, Gauge: 1 mm2, gauge: 0.2 mm2- 4 mm2, mounting type: NS 35/7.5, NS 35/15, NS 32, color: black, 1 BTU/h (min.)
Fuse type Glass/ceramic/...
Rated impulse voltage 8 kV
Maximum power dissipation at nominal condition 1.02 W
Fuse G / 5 x 20 / 5 x 25 / 5 x 30
Number of connections per level 2
Nominal cross-section 4 mm²
Level 1 on top 1 on bottom 1
Tightening torque 0.6 ... 0.8 Nm
Stripping length 8 mm
Connection according to standard IEC 60947-7-3
Conductor cross-section, solid 0.2 mm² ... 4 mm²
Conductor cross-section AWG 24 ... 12 (converted according to IEC)
Flexible conductor cross-section 0.2 mm² ... 4 mm²
Flexible conductor cross-section [AWG] 24 ... 12 (converted according to IEC)
Flexible conductor cross-section (ferrule without plastic sleeve) 0.25 mm² ... 4 mm²
Flexible conductor cross-section (ferrule with plastic sleeve) 0.25 mm² ... 4 mm²
Cross-section with rigid insert jumper 4 mm²
Cross-section with flexible insert jumper 4 mm²
2 conductors with the same profile, solid 0.2 mm² ... 1.5 mm²
2 conductors with the same profile, flexible 0.2 mm² ... 1.5 mm²
2 conductors with the same cross-section, flexible with AEH without plastic support 0.25 mm² ... 1.5 mm²
2 conductors with the same cross-section, flexible with TWIN ferrule with plastic sleeve 0.5 mm² ... 1.5 mm²
Rated current 6.3 A
Maximum load current 6.3 A (Current is determined by the applied fuse.)
Rated voltage 800 V (as fuse terminal block)
Nominal cross-section 1 mm²
Connection according to standard IEC 60947-7-3
Conductor cross-section, solid 0.2 mm² ... 4 mm²
Conductor cross-section AWG 24 ... 12 (converted according to IEC)
Flexible conductor cross-section 0.2 mm² ... 4 mm²
Flexible conductor cross-section (ferrule without plastic sleeve) 0.25 mm² ... 4 mm²
Flexible conductor cross-section (ferrule with plastic sleeve) 0.25 mm² ... 4 mm²
Cross-section with rigid insert jumper 4 mm²
Cross-section with flexible insert jumper 4 mm²
2 conductors with the same profile, solid 0.2 mm² ... 1.5 mm²
2 conductors with the same profile, flexible 0.2 mm² ... 1.5 mm²
2 conductors with the same cross-section, flexible with AEH without plastic support 0.25 mm² ... 1.5 mm²
2 conductors with the same cross-section, flexible with TWIN ferrule with plastic sleeve 0.5 mm² ... 1.5 mm²
Rated current 6.3 A
Maximum load current 6.3 A
Rated voltage 800 V (as disconnect terminal block)
Nominal cross-section 1 mm²
Date: 11/07/2023
Measurements: 8x5x1
