Phoenix Contact RT 3 3049013 1000V 24A Terminal Block
978 in stock- Code
- WS1552
- GTIN
- 4046356140140
- Category
- Born
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Phoenix Contact
- SKU / Internal code
- WS1552
- GTIN
- 4046356140140
- Product type
- Born
- Condition
- Condition shown in specs
- Stock
- 978 in stock
- Geral Importante
- no caso de terminais de cabo não isolados, é necessário aplicar o prolongamento de linha BE-RT... (consultar acessórios)!
- Weight
- 0,025 g
- Dimensions
- 7x5x1
About this item

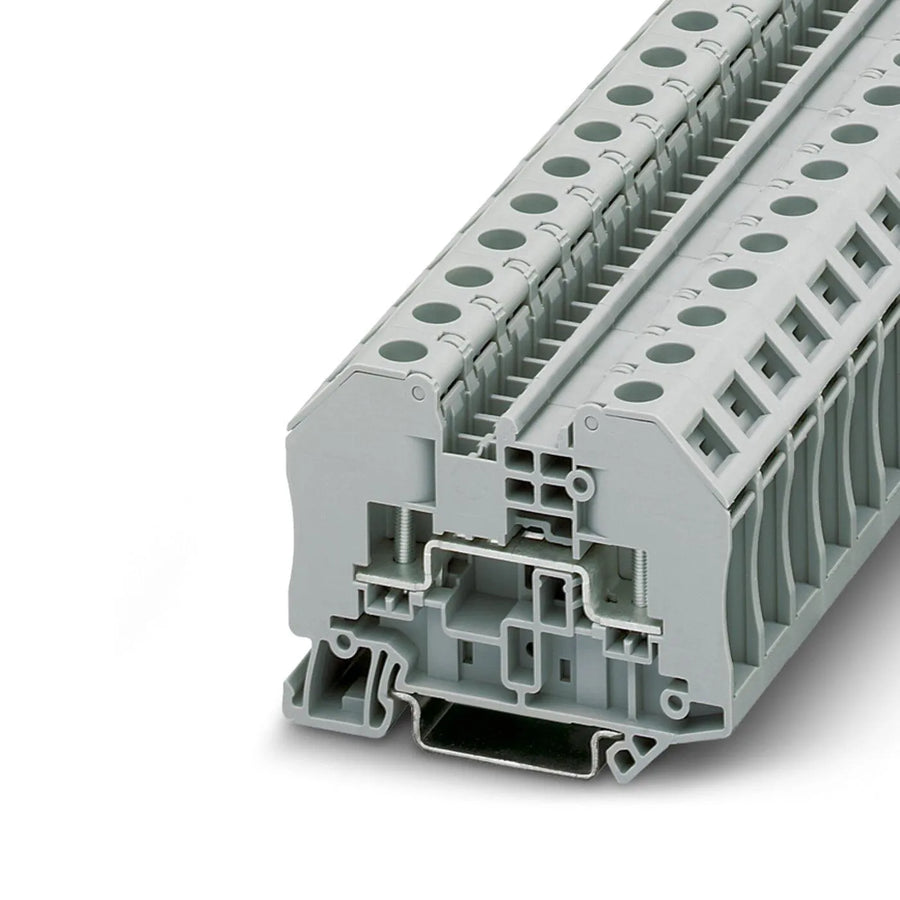

Phoenix Contact RT 3 3049013 1000v 24A Ring Lug Terminal Block
New product in manufacturer's box
Brand: Phoenix Contact
Model: RT 3 3049013
RT 3 - Ring lug terminal block
Ring lug terminal block, rated voltage: 1000 V, rated current: 24 A, number of connections: 2, connection type: Ring lug connection, 1st level, cross-section: 2.5 mm², mounting type: NS 35/7,5, NS 35/15, color: gray
General Important: In the case of uninsulated cable lugs, it is necessary to apply the BE-RT... line extension (see accessories)!
Note The rated insulation voltage is valid for insulated cable lugs according to DIN 46237:1970-07 and for uninsulated cable lugs according to DIN 46234:1980-03 with extended clearance.
Product type Ring lug terminal block
Application area Railway industry
Machine building
Plant construction
Processing industry
Number of connections 2
Number of lines 1
Insulation properties
Overvoltage category III
Pollution degree 3
Rated impulse voltage 8 kV
Maximum power dissipation with nominal condition 0.77 W
Number of connections per level 2
Nominal cross-section 2.5 mm²
Nominal AWG cross-section 14
Stripping length The stripping length depends on the cable lug manufacturer's indication.
Connection according to standard IEC 60947-7-1
Rated current 24 A
Maximum load current 24 A (with conductor cross-section of 2.5 mm²)
Rated voltage 1000 V (Rated voltage in case of open disconnection point 500 V)
Nominal cross-section 2.5 mm²
Date: 08/23/2023
Measurements: 7x5x1
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment is exclusively the buyer's.
Cabo Eletro Comercial ltda thanks you
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Phoenix Contact RT 3 3049013 1000v 24A Ring Lug Terminal Block
New product in manufacturer's box
Brand: Phoenix Contact
Model: RT 3 3049013
RT 3 - Ring lug terminal block
Ring lug terminal block, rated voltage: 1000 V, rated current: 24 A, number of connections: 2, connection type: Ring lug connection, 1st level, cross-section: 2.5 mm², mounting type: NS 35/7,5, NS 35/15, color: gray
General Important: In the case of uninsulated cable lugs, it is necessary to apply the BE-RT... line extension (see accessories)!
General
Note The rated insulation voltage is valid for insulated cable lugs according to DIN 46237:1970-07 and for uninsulated cable lugs according to DIN 46234:1980-03 with extended clearance.
Product type Ring lug terminal block
Application area Railway industry
Machine building
Plant construction
Processing industry
Number of connections 2
Number of lines 1
Potentials 1
Insulation properties
Overvoltage category III
Pollution degree 3
Rated impulse voltage 8 kV
Maximum power dissipation with nominal condition 0.77 W
Number of connections per level 2
Nominal cross-section 2.5 mm²
Nominal AWG cross-section 14
1st level
Stripping length The stripping length depends on the cable lug manufacturer's indication.
Connection according to standard IEC 60947-7-1
Rated current 24 A
Maximum load current 24 A (with conductor cross-section of 2.5 mm²)
Rated voltage 1000 V (Rated voltage in case of open disconnection point 500 V)
Nominal cross-section 2.5 mm²
Date: 08/23/2023
Weight: 0.025g
Measurements: 7x5x1
Locator: B3P4B
