Phoenix Contact QUINT-ORING/24DC/2X20/1X40 Module 2320186
Last unit- Code
- WS3456
- GTIN
- 4046356524919
- Category
- Module
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Phoenix Contact
- SKU / Internal code
- WS3456
- GTIN
- 4046356524919
- Product type
- Module
- Condition
- Condition shown in specs
- Stock
- Last unit
- Weight
- 0,6 kg
- Dimensions
- 4X13X13
About this item

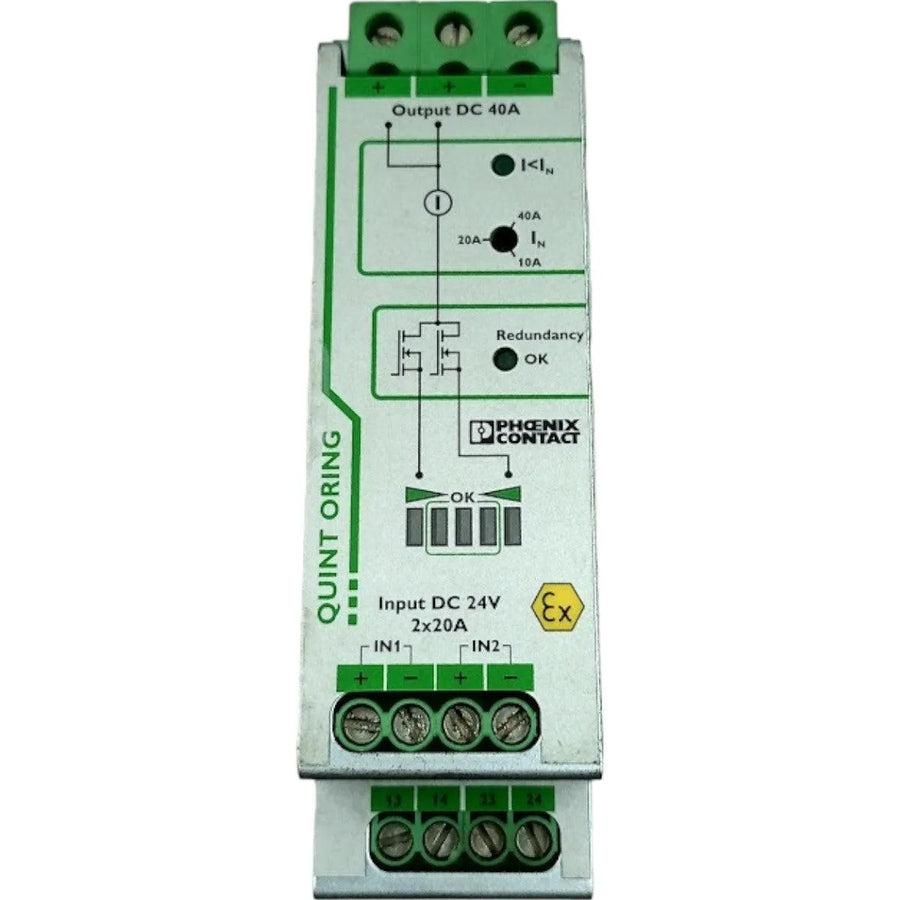

Phoenix Contact Redundancy Module QUINT-ORING/24DC/2X20/1X40 2320186
Used product out of manufacturer's box
Brand: Phoenix Contact
Model: QUINT-ORING/24DC/2X20/1X40 2320186
A redundancy module refers to a component or system that is incorporated into an infrastructure to ensure continuous availability and reliability, especially in critical situations. Redundancy is a strategy in which additional components or systems are implemented to replace or support primary ones in case of failure, thus minimizing the impact of potential problems.
Redundancy in Power Supply Systems (UPS): In an uninterruptible power supply (UPS) system, redundancy modules can be incorporated to ensure that, in the event of a module failure, another one immediately takes over, maintaining constant power and preventing interruption.
Active QUINT redundancy module for DIN rail mounting with ACB Technology (Auto Current Balancing) and monitoring functions, input: 24 V DC / 2 x 20 A, output: 24 V DC / 1 x 40 A, incl. mounted UTA 107/30 universal DIN rail adapter
The ACB Technology (Auto Current Balancing) of QUINT ORING modules doubles the service life of redundantly operated power supplies, as both power supplies receive a uniform load. The load current is automatically distributed in a completely symmetrical manner.
Rated input voltage range 24 V DC
Input voltage range 18 V DC ... 28 V DC (SELV)
DC input voltage range 18 V DC ... 28 V DC (SELV)
Voltage type of supply voltage DC
Reverse polarity protection < yes60 V
Rated input current (IN) 2x 20 A (-25 C ... 60 C)
1x 40 A (-25°C ... 60 C)
Maximum current Imax 2x 26 A (-25 °C ... 40 °C)
1x 52 A (-25 C ... 40 C)
120 A (12 ms, SFB Technology)
Transient surge protection Varistor
Input/output isolation voltage 0.2 V (IOUT = 40 A)
Efficiency > 98 %
Rated output voltage 0.2 V (< DC Input)
Output voltage UIn -
Rated output current (IN) 40 A (Power boost)
20 A (Redundancy)
Load reduction 60 °C ... 70 °C (2.5 %/K)
Output overvoltage protection (OVP) < 32 V DC
Date: 02/28/2023
Weight: 0.600Kg
Measurements: 4X13X13
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment lies exclusively with the buyer.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Phoenix Contact Redundancy Module QUINT-ORING/24DC/2X20/1X40 2320186
Used product out of manufacturer's box
Brand: Phoenix Contact
Model: QUINT-ORING/24DC/2X20/1X40 2320186
A redundancy module refers to a component or system that is incorporated into an infrastructure to ensure continuous availability and reliability, especially in critical situations. Redundancy is a strategy in which additional components or systems are implemented to replace or support primary ones in case of failure, thus minimizing the impact of potential problems.
Redundancy in Power Supply Systems (UPS): In an uninterruptible power supply (UPS) system, redundancy modules can be incorporated to ensure that, in the event of a module failure, another one immediately takes over, maintaining constant power and preventing interruption.
Active QUINT redundancy module for DIN rail mounting with ACB Technology (Auto Current Balancing) and monitoring functions, input: 24 V DC / 2 x 20 A, output: 24 V DC / 1 x 40 A, incl. mounted UTA 107/30 universal DIN rail adapter
The ACB Technology (Auto Current Balancing) of QUINT ORING modules doubles the service life of redundantly operated power supplies, as both power supplies receive a uniform load. The load current is automatically distributed in a completely symmetrical manner.
DC Operation
Rated input voltage range 24 V DC
Input voltage range 18 V DC ... 28 V DC (SELV)
DC input voltage range 18 V DC ... 28 V DC (SELV)
Voltage type of supply voltage DC
Reverse polarity protection < yes60 V
Rated input current (IN) 2x 20 A (-25 C ... 60 C)
1x 40 A (-25°C ... 60 C)
Maximum current Imax 2x 26 A (-25 °C ... 40 °C)
1x 52 A (-25 C ... 40 C)
120 A (12 ms, SFB Technology)
Transient surge protection Varistor
Input/output isolation voltage 0.2 V (IOUT = 40 A)
Efficiency > 98 %
Rated output voltage 0.2 V (< DC Input)
Output voltage UIn -
Rated output current (IN) 40 A (Power boost)
20 A (Redundancy)
Load reduction 60 °C ... 70 °C (2.5 %/K)
Output overvoltage protection (OVP) < 32 V DC
Date: 02/28/2023
Weight: 0.600Kg
Measurements: 4X13X13
Locator: A4P3C
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment lies exclusively with the buyer.
Cabo Eletro Comercial LTDA thanks you.
