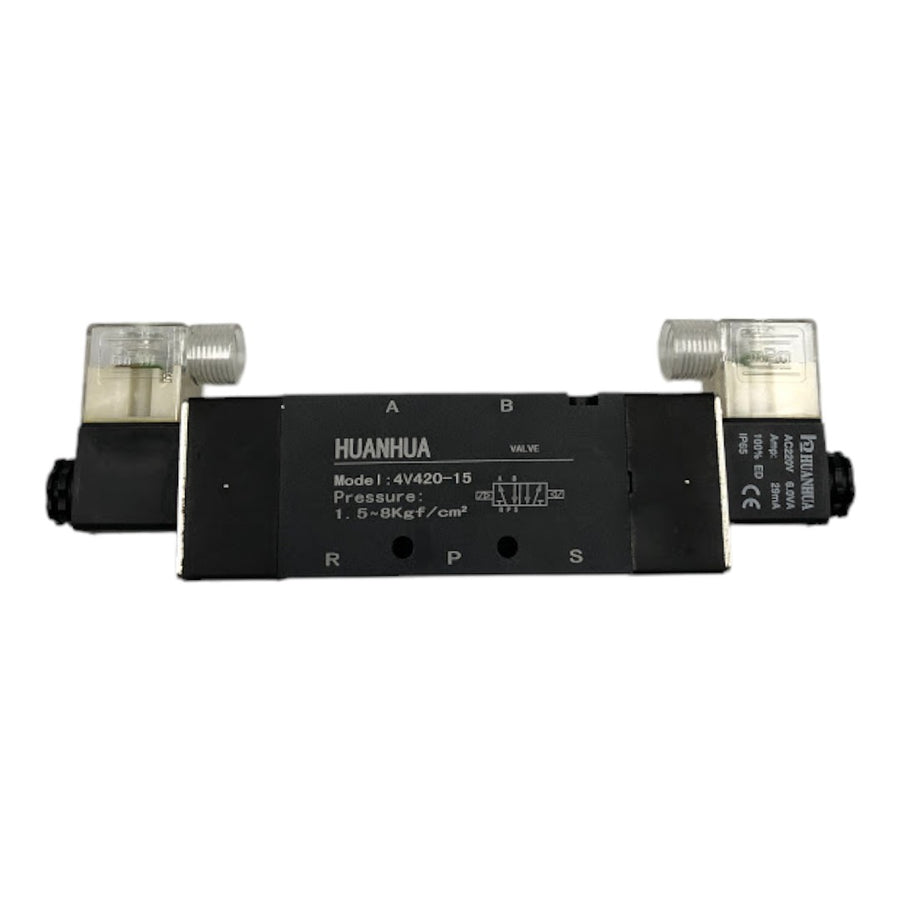

HUANHUA 4V420-15 Double Solenoid Valve 1.5 to 8Kgf/cm²
Last unit- Code
- WS7176
- GTIN
- 7896507776608
- Category
- Automation Control Components
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Huanhua
- SKU / Internal code
- WS7176
- GTIN
- 7896507776608
- Product type
- Automation Control Components
- Condition
- Condition shown in specs
- Stock
- Last unit
- Pressão de operação
- Faixa de 1,5 a 8 kgf/cm² (aproximadamente 0,15 a 0,8 MPa).
- Pressão máxima
- 1,2 MPa.
- Classe de proteção
- IP65, indicando proteção contra poeira e jatos de água.
- Tensão
- 220V AC.
- Consumo de energia
- 6,0 VA.
- Corrente
- 29 mA.
- Weight
- 0,628 kg
- Dimensions
- 10x15x24
About this item
NEW product out of manufacturer's box
Model: 4V420-15
A double solenoid valve is a type of electropneumatic or electro-hydraulic valve used to control the flow of compressed air or fluid in industrial systems. The term "double solenoid" refers to the fact that the valve has two electromagnetic solenoids, which allow for precise and independent switching between two control positions.
How does it work?
Each solenoid contains a coil that, when energized, creates a magnetic field.
This magnetic field displaces a movable core within the valve, moving the spool or internal element that directs the fluid flow.
Since there are two solenoids, each controls one direction of the spool's movement, allowing for switching between two positions.
The valve maintains its last position even when the solenoids are not energized, a characteristic known as maintained position.
Pneumatic automation:
Control of pneumatic cylinders in industrial machinery.
Hydraulic systems:
Flow control in high-pressure systems.
Packaging machines:
Operation of actuators for folding, cutting, or sealing materials.
Automotive industry:
Movement of parts in production lines.
The HUANHUA 4V420-15 solenoid valve is a pneumatic component designed to control airflow in industrial systems. It has the following specifications:
Operating pressure: Range of 1.5 to 8 kgf/cm² (approximately 0.15 to 0.8 MPa).
Maximum pressure: 1.2 MPa.
Protection class: IP65, indicating protection against dust and water jets.
Voltage: 220V AC.
Power consumption: 6.0 VA.
Current: 29 mA.
Date: 11/18/2024
Weight: 0.628Kg
Measurements: 10x15x24
Locator: A24P2B
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment lies solely with the buyer.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
HUANHUA 4V420-15 Double Solenoid Valve 1.5 to 8Kgf/cm²
NEW product out of manufacturer's box
Brand: Huanhua
Model: 4V420-15
A double solenoid valve is a type of electropneumatic or electro-hydraulic valve used to control the flow of compressed air or fluid in industrial systems. The term "double solenoid" refers to the fact that the valve has two electromagnetic solenoids, which allow for precise and independent switching between two control positions.
How does it work?
Each solenoid contains a coil that, when energized, creates a magnetic field.
This magnetic field displaces a movable core within the valve, moving the spool or internal element that directs the fluid flow.
Since there are two solenoids, each controls one direction of the spool's movement, allowing for switching between two positions.
The valve maintains its last position even when the solenoids are not energized, a characteristic known as maintained position.
Applications
Pneumatic automation:
Control of pneumatic cylinders in industrial machinery.
Hydraulic systems:
Flow control in high-pressure systems.
Packaging machines:
Operation of actuators for folding, cutting, or sealing materials.
Automotive industry:
Movement of parts in production lines.
The HUANHUA 4V420-15 solenoid valve is a pneumatic component designed to control airflow in industrial systems. It has the following specifications:
Operating pressure: Range of 1.5 to 8 kgf/cm² (approximately 0.15 to 0.8 MPa).
Maximum pressure: 1.2 MPa.
Protection class: IP65, indicating protection against dust and water jets.
Voltage: 220V AC.
Power consumption: 6.0 VA.
Current: 29 mA.
Date: 11/18/2024
Weight: 0.628Kg
Measurements: 10x15x24
Locator: A24P2B
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment lies solely with the buyer.
Cabo Eletro Comercial LTDA thanks you.
