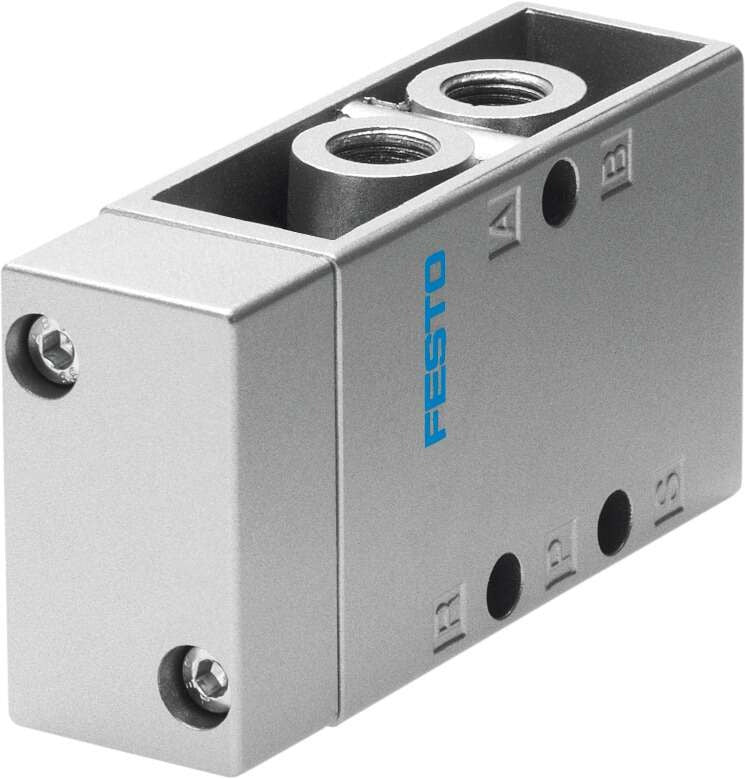

Festo VL-5-1/8 9764 Pneumatic Valve
Last unit- Code
- 8534
- GTIN
- 7893858297547
- Category
- Automation Control Components
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- FESTO
- SKU / Internal code
- 8534
- GTIN
- 7893858297547
- Product type
- Automation Control Components
- Condition
- Condition shown in specs
- Stock
- Last unit
- Weight
- 0,17 kg
About this item
New product out of manufacturer's box
Model: VL-5-1/8
5/2-way monostable
Standard nominal flow rate
Pneumatic working connection
Operating pressure
0 MPa ... 1 MPa
Operating pressure
0 bar ... 10 bar
Mechanical spring
Nominal diameter
Exhaust function
with flow control
Installation position
Pilot air supply
Negative overlap
Control pressure MPa
0.12 MPa ... 1 MPa
1.2 bar ... 10 bar
Max. switching frequency
Switching off time
Switching on time
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on operating/control medium
Can be operated with lubricated air (lubricated air must be used for subsequent operation)
Corrosion resistance class KBK
1 - low corrosion stress
LABS conformity
VDMA24364-B1/B2-L
Storage temperature
-20 °C ... 60 °C
Medium temperature
-10 °C ... 60 °C
Compressed air, according to ISO 8573-1:2010 [7:4:4]
Ambient temperature
-10 °C ... 60 °C
with through-hole
Pilot air connection 12
Pilot air connection 14
Pneumatic connection 1
Pneumatic connection 2
Pneumatic connection 3
Pneumatic connection 4
Pneumatic connection 5
Information on materials
Sealing material
Die-cast aluminum
Date 11/14/2022
Measurements 3x4x8
Locator: GP04CL83P4
Cabo Eletro Comercial ltda thanks you
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Festo VL-5-1/8 9764 Pneumatic Valve
New product out of manufacturer's box
Brand: Festo
Model: VL-5-1/8
Valve function
5/2-way monostable
Actuation type
Pneumatic
Width
26 mm
Standard nominal flow rate
500 l/min
Pneumatic working connection
G1/8
Operating pressure
0 MPa ... 1 MPa
Operating pressure
0 bar ... 10 bar
Structure
Axial seat
Return type
Mechanical spring
Nominal diameter
5 mm
Module width
27 mm
Exhaust function
with flow control
Sealing type
soft
Installation position
Any
Control type
Direct
Pilot air supply
external
Flow direction
Non-reversible
Symbol
00991001
Overlap
Negative overlap
Control pressure MPa
0.12 MPa ... 1 MPa
Pilot pressure
1.2 bar ... 10 bar
Max. switching frequency
12 Hz
Switching off time
16 ms
Switching on time
5 ms
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on operating/control medium
Can be operated with lubricated air (lubricated air must be used for subsequent operation)
Corrosion resistance class KBK
1 - low corrosion stress
LABS conformity
VDMA24364-B1/B2-L
Storage temperature
-20 °C ... 60 °C
Medium temperature
-10 °C ... 60 °C
Control medium
Compressed air, according to ISO 8573-1:2010 [7:4:4]
Ambient temperature
-10 °C ... 60 °C
Product weight
220 g
Mounting type
On PR rail
with through-hole
alternative:
Pilot air connection 12
G1/8
Pilot air connection 14
G1/8
Pneumatic connection 1
G1/8
Pneumatic connection 2
G1/8
Pneumatic connection 3
G1/8
Pneumatic connection 4
G1/8
Pneumatic connection 5
G1/8
Information on materials
RoHS compliant
Sealing material
NBR
TPE-U(PU)
Body material
Die-cast aluminum
Date 11/14/2022
Weight: 0.170
Measurements 3x4x8
Locator: GP04CL83P4
