Danfoss 065Z0118 VRG3 DN 32 mixer valve kvs:16m³/h
Only 2 left- Code
- 9663
- GTIN
- 7894693786333
- Category
- Automation Control Components
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Danfoss
- SKU / Internal code
- 9663
- GTIN
- 7894693786333
- Product type
- Automation Control Components
- Condition
- Condition shown in specs
- Stock
- Only 2 left
- Taxa de controle 100
- 1
- Weight
- 2,09 kg
About this item

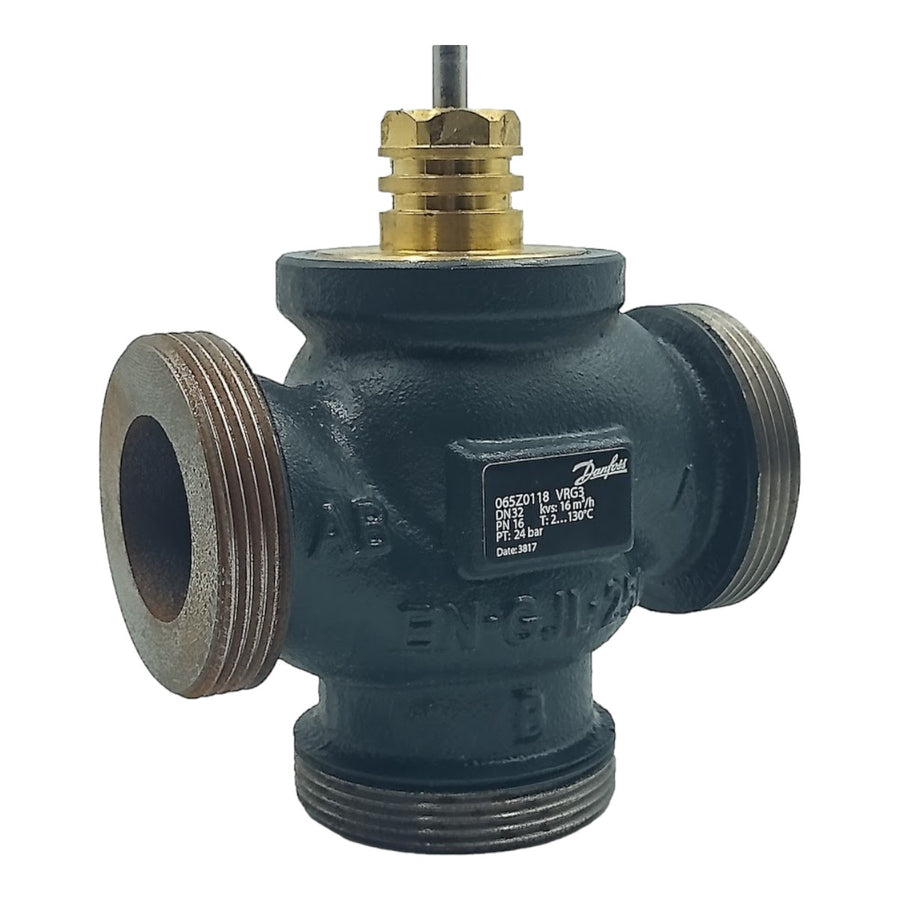

Danfoss Mixing Valve 065Z0118 VRG3 DN 32 kvs:16m³/h
New product in manufacturer's box
Model: 065Z0118 VRG3
Application Heating and cooling
Alternative VSP application District heating
Cavitation factor 0.4
Closing differential pressure (bypass) [bar] [Max] 1 bar
Closing differential pressure (mixing) [bar] [Max] 4 bar
Connection size G 2
Connection types External thread
Control ratio 100:1
Description VRG3 PN16 DN32/16 ext. thread
Diameter [mm] 32mm
Flow characteristic Equal percentage
Function Mixing valve
Kvs values [m³/h] 16 m3/h
Leakage through port (B-AB) max. [% Kvs] 1.0
Leakage through port max. [% Kvs] bubble-tight design
Manufacturer name Danfoss
Medium pH [Max] 10
Medium pH [Min] 7
Medium temperature [°C] [Max] 130°C
Medium temperature [°C] [Min] -10°C
Alternative medium Glycol water up to 50%
Mounting version Flow
Number of ports 3
Allowed media Circulating water
Alternative PN VSP 10
Nominal pressure [bar] 16 bar
Product group Motorized control valves
Stroke [mm] 15 mm
Gland packing seal material EPDM
Valve body material Grey cast iron EN-GJL-250 (GG-25)
Valve cone material Brass
Valve stem material Stainless steel
Application Heating and cooling
Alternative VSP application District heating
Cavitation factor 0.4
Closing differential pressure (bypass) [bar] [Max] 1 bar
Closing differential pressure (mixing) [bar] [Max] 4 bar
Connection size G 2
Connection types External thread
Control ratio 100:1
Description VRG3 PN16 DN32/16 ext. thread
Diameter [mm] 32mm
Flow characteristic Equal percentage
Function Mixing valve
Kvs values [m³/h] 16 m3/h
Leakage through port (B-AB) max. [% Kvs] 1.0
Leakage through port max. [% Kvs] bubble-tight design
Manufacturer name Danfoss
Medium pH [Max] 10
Medium pH [Min] 7
Medium temperature [°C] [Max] 130°C
Medium temperature [°C] [Min] -10°C
Alternative medium Glycol water up to 50%
Mounting version Flow
Number of ports 3
Allowed media Circulating water
Alternative PN VSP 10
Nominal pressure [bar] 16 bar
Product group Motorized control valves
Stroke [mm] 15 mm
Gland packing seal material EPDM
Valve body material Grey cast iron EN-GJL-250 (GG-25)
Valve cone material Brass
Valve stem material Stainless steelVRG3 PN16 DN32/16 ext. thread
Date 04/11/2023
Measurements 10x18x18
Locator: GP04CL84P4
Dear customers, if the material is for resale, the ST (Tax Substitution) value may be charged. If the operation is subject to this tax, the buyer is solely responsible for payment.
Cabo Eletro Comercial Ltda thanks you
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Danfoss Mixing Valve 065Z0118 VRG3 DN 32 kvs:16m³/h
New product in manufacturer's box
Brand: Danfoss
Model: 065Z0118 VRG3
Application Heating and cooling
Alternative VSP application District heating
Cavitation factor 0.4
Closing differential pressure (bypass) [bar] [Max] 1 bar
Closing differential pressure (mixing) [bar] [Max] 4 bar
Connection size G 2
Connection types External thread
Control ratio 100:1
Description VRG3 PN16 DN32/16 ext. thread
Diameter [mm] 32mm
Flow characteristic Equal percentage
Function Mixing valve
Kvs values [m³/h] 16 m3/h
Leakage through port (B-AB) max. [% Kvs] 1.0
Leakage through port max. [% Kvs] bubble-tight design
Manufacturer name Danfoss
Medium pH [Max] 10
Medium pH [Min] 7
Medium temperature [°C] [Max] 130°C
Medium temperature [°C] [Min] -10°C
Alternative medium Glycol water up to 50%
Mounting version Flow
Number of ports 3
Allowed media Circulating water
Alternative PN VSP 10
Nominal pressure [bar] 16 bar
Product group Motorized control valves
Stroke [mm] 15 mm
Gland packing seal material EPDM
Type VRG 3
Valve body material Grey cast iron EN-GJL-250 (GG-25)
Valve cone material Brass
Valve stem material Stainless steel
Application Heating and cooling
Alternative VSP application District heating
Cavitation factor 0.4
Closing differential pressure (bypass) [bar] [Max] 1 bar
Closing differential pressure (mixing) [bar] [Max] 4 bar
Connection size G 2
Connection types External thread
Control ratio 100:1
Description VRG3 PN16 DN32/16 ext. thread
Diameter [mm] 32mm
Flow characteristic Equal percentage
Function Mixing valve
Kvs values [m³/h] 16 m3/h
Leakage through port (B-AB) max. [% Kvs] 1.0
Leakage through port max. [% Kvs] bubble-tight design
Manufacturer name Danfoss
Medium pH [Max] 10
Medium pH [Min] 7
Medium temperature [°C] [Max] 130°C
Medium temperature [°C] [Min] -10°C
Alternative medium Glycol water up to 50%
Mounting version Flow
Number of ports 3
Allowed media Circulating water
Alternative PN VSP 10
Nominal pressure [bar] 16 bar
Product group Motorized control valves
Stroke [mm] 15 mm
Gland packing seal material EPDM
Type VRG 3
Valve body material Grey cast iron EN-GJL-250 (GG-25)
Valve cone material Brass
Valve stem material Stainless steelVRG3 PN16 DN32/16 ext. thread
Date 04/11/2023
Weight: 2,090
Measurements 10x18x18
Locator: GP04CL84P4
Dear customers, if the material is for resale, the ST (Tax Substitution) value may be charged. If the operation is subject to this tax, the buyer is solely responsible for payment.
Cabo Eletro Comercial Ltda thanks you
