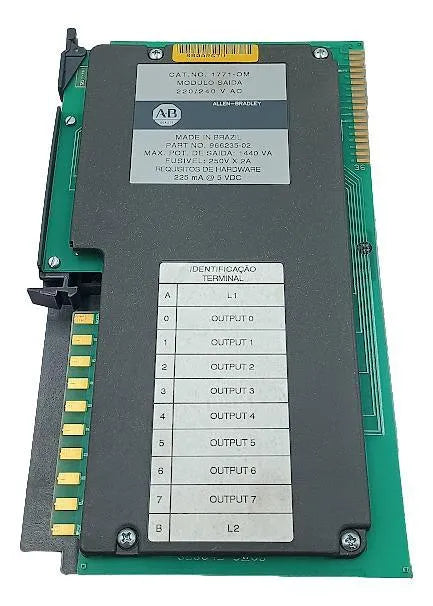

Allen-Bradley 1771-OM 220/240v Output Module
Only 3 left- Code
- WS911
- Category
- Module
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Allen-Bradley
- SKU / Internal code
- WS911
- Product type
- Module
- Condition
- Condition shown in specs
- Stock
- Only 3 left
- Weight
- 1,24 kg
- Dimensions
- 8x23x37
About this item
New product out of manufacturer's box
Brand: Allen-Bradley
An output module is an electronic device used in automation and control systems to provide output signals in the form of energy, electrical signals, or commands to actuate external devices. It is responsible for transmitting the processing results from the control system to execute specific actions.
The primary objective of an output module is to control external loads, such as motors, solenoids, lamps, valves, among other devices, according to commands received from the control system. It acts as an interface between the system and the output devices, allowing the automation system to precisely and controllably manage and activate these loads.
It is important to consider the technical specifications of the output module, such as output type, current capacity, voltage or current range, number of channels, and other parameters, to ensure it is suitable for the intended application and for correct integration with the control system.
In summary, an output module is an electronic device used in automation and control systems to provide output signals that control external devices. It acts as an interface between the control system and the output devices, allowing the system to actuate and control external loads precisely and controllably. Output modules can vary in terms of output type and current capacity, depending on the application's needs.
This module can be used with 1771 Series A or B I/O chassis.
If you are using 1/2 slot or 1 slot addressing, you can use any
combination of I/O modules.
Outputs per Module 8
Module Location 1771 I/O Chassis
Output Voltage Range 184 to 276 Vac @ 47 63 Hz
Output Current Rating 2A per output not to exceed 6A per module
Surge Current (max) 20A per output for 100ms, repeatable every 10 seconds
Minimum Load Current 60mA per output @ 220V AC, 60Hz
On-state voltage drop (max.) 1.6 V at 2 A
Off-state leakage current (max.) 2mA per output @ 220V AC
Delay times 1.0 ms Turn-on delay (max.)
8.3 ms Turn-off delay (max.)
Power Dissipation 13.2 Watts (max.), 1.2 Watts (min.)
Thermal Dissipation 45.1 BTU/h (max.), 4.1 BTU/h (min.)
Date 07/04/2023
Measurements: 8x23x37
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the transaction is subject to this tax, the responsibility for payment lies exclusively with the buyer.
Cabo Eletro Comercial ltda thanks you
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Allen-Bradley 1771-OM 220/240v Output Module
New product out of manufacturer's box
Brand: Allen-Bradley
Model: 1771-OM
An output module is an electronic device used in automation and control systems to provide output signals in the form of energy, electrical signals, or commands to actuate external devices. It is responsible for transmitting the processing results from the control system to execute specific actions.
The primary objective of an output module is to control external loads, such as motors, solenoids, lamps, valves, among other devices, according to commands received from the control system. It acts as an interface between the system and the output devices, allowing the automation system to precisely and controllably manage and activate these loads.
Output modules are often used in conjunction with other devices, such as programmable logic controllers (PLCs), supervisory control and data acquisition (SCADA) systems, industrial automation systems, and other control systems, to perform desired operations and actions in the controlled environment.
It is important to consider the technical specifications of the output module, such as output type, current capacity, voltage or current range, number of channels, and other parameters, to ensure it is suitable for the intended application and for correct integration with the control system.
In summary, an output module is an electronic device used in automation and control systems to provide output signals that control external devices. It acts as an interface between the control system and the output devices, allowing the system to actuate and control external loads precisely and controllably. Output modules can vary in terms of output type and current capacity, depending on the application's needs.
This module can be used with 1771 Series A or B I/O chassis.
If you are using 1/2 slot or 1 slot addressing, you can use any
combination of I/O modules.
Outputs per Module 8
Module Location 1771 I/O Chassis
Output Voltage Range 184 to 276 Vac @ 47 63 Hz
Output Current Rating 2A per output not to exceed 6A per module
Surge Current (max) 20A per output for 100ms, repeatable every 10 seconds
Minimum Load Current 60mA per output @ 220V AC, 60Hz
On-state voltage drop (max.) 1.6 V at 2 A
Off-state leakage current (max.) 2mA per output @ 220V AC
Delay times 1.0 ms Turn-on delay (max.)
8.3 ms Turn-off delay (max.)
Power Dissipation 13.2 Watts (max.), 1.2 Watts (min.)
Thermal Dissipation 45.1 BTU/h (max.), 4.1 BTU/h (min.)
Date 07/04/2023
Weight: 1.240
Measurements: 8x23x37
Locator: B7P3A
