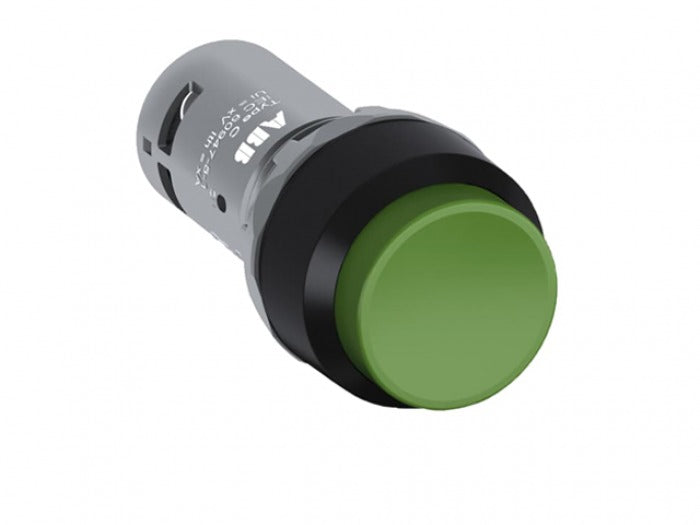

ABB CP3-10G-10 Green Pushbutton 1SFA619102R1012

Green Button ABB CP3-10G-10 1SFA619102R1012

New product out of manufacturer's box

Brand: ABB

Model: CP3-10G-10 1SFA619102R1012

The CP3-10G-10 Button is: Compact - Button - Momentary - Extended - Green - Non-illuminated - Black Plastic - 1NO - 1 NC - 0 NC - 300 V This button is part of

ABB's compact range, the most efficient integrated solution available, reducing installation time and cost.

The compact line has a high level of dust and water resistance.

Technical

• Ambient air temperature:

• Operation -25 ... +70 °C

• Storage -40 ... +85 °C

• Color:

• Green

• Actuator type:

• Extended

• Bezel material:

• Black Plastic

• Illumination:

• Non-illuminated

• Function:

• Momentary

• Number of NC Auxiliary Contacts:

• 0

• Number of NO Auxiliary Contacts:

• 1

• Degree of protection:

• Front IP66

• Front IP67

• Front IP69K
  Terminals IP20

• NEMA enclosure type:

• Type1

• Type12

• Type13
  Type3R
  Type4
  Type4X

• Pollution degree:

• 3

• Rated insulation voltage (U i ):

• 300V

• Rated impulse withstand voltage (U imp ):

• 6kV

• Rated frequency (f):

• 50/60Hz

• Rated operational voltage:

• Max 300 V

• Rated operational current DC-13 (I e ):

• (24 V) 0.3 A

• (125 V) 0.2 A

• Rated operational current AC-15 (I e ):

• (240V) 1A

• Power loss:

• Max 2.5 W

• Mechanical durability:

• 0.5 million

• Connecting capacity:

• Flexible with ferrule 1 x 0.5...1.5 mm²

• Flexible with ferrule 2 x 0.5...1.5 mm²

• Flexible with insulated ferrule 1 x 0.5...1.5 mm²
  Flexible with insulated ferrule 2 x 0.5...1.5 mm²
  Flexible 1 x 0.5 ...1.5 mm²
  Flexible 2 x 0.5 ...1.5 mm²
  Solid 1 x 0.5...1.5 mm²
  Solid 2 x 0.5...1.5 mm²

• Connection type:

• Screw clamp

• Terminal type:

• Screw terminals

• Tightening torque:

• 0.8 N·m

• Wire stripping length:

• 6mm

Date: 08/31/2023

Weight: 0.020

Measurements: 6x3x3

Locator: B12P2B
