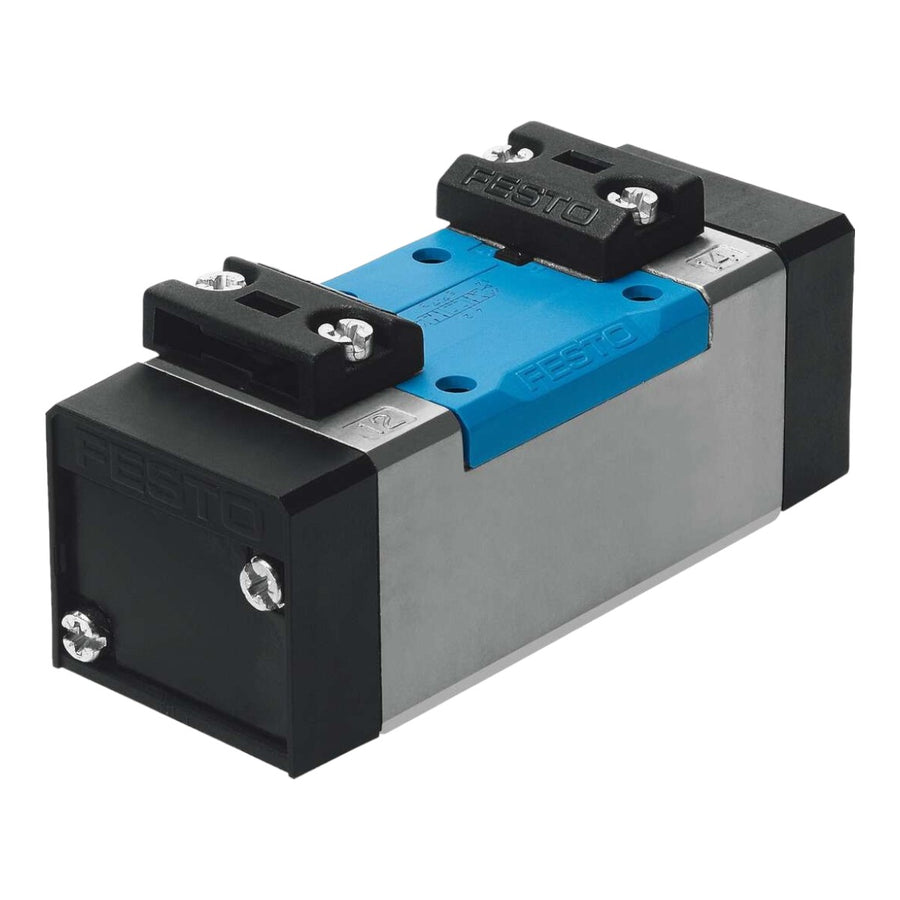

Festo VL-5/3B-D-3-C Pneumatic Valve 151869
Last unit- Code
- 8523
- GTIN
- 7895146148852
- Category
- Automation control components
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- FESTO
- SKU / Internal code
- 8523
- GTIN
- 7895146148852
- Product type
- Automation control components
- Condition
- Condition shown in specs
- Stock
- Last unit
- Ar comprimido para ISO 8573-1
- 2010 [7:4:4]
- Weight
- 0,84 kg
About this item
Festo Pneumatic Valve VL-5/3B-D-3-C 151869
New product out of the manufacturer's box
Model: VL-5/3B-D-3-C 151869
5/3-way, pressurized
Standard nominal flow rate
Pneumatic working port
Sub-base size 3 for ISO 5599-1 G1/2
Operating pressure
-0.09 MPa ... 1.6 MPa
Operating pressure
-0.9 bar ... 16 bar
Piston slide valve
Mechanical spring
c UL us - Recognized (OL)
Air exhaust function
With flow control option
Sealing principle
Mounting position
Conforms to standard
Manual override
Positive overlap
3 bar... 16 bar
Switch-off time
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Vibration resistance
Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistance
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Media temperature
Sound pressure level
Compressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature
On sub-base Via through-hole and screw
Pilot air port 12
Sub-base size 3 for ISO 5599-1
Pilot air port 14
Sub-base size 3 for ISO 5599-1
Pneumatic connection, port 1
Sub-base size 3 for ISO 5599-1
Pneumatic connection, port 2
Sub-base size 3 for ISO 5599-1
Pneumatic connection, port 3
Sub-base size 3 for ISO 5599-1
Pneumatic connection, port 4
Sub-base size 3 for ISO 5599-1
Pneumatic connection, port 5
Sub-base size 3 for ISO 5599-1
Note on materials
Housing material
Die-cast aluminum
Date 11/14/2022
Measurements 5x6x19
Locator: GP04CL88P1
Cabo Eletro Comercial ltda thanks you
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Festo Pneumatic Valve VL-5/3B-D-3-C 151869
New product out of the manufacturer's box
Brand: Festo
Model: VL-5/3B-D-3-C 151869
Valve function
5/3-way, pressurized
Actuation type
Pneumatic
Overall width
65 mm
Standard nominal flow rate
4100 l/min
Pneumatic working port
Sub-base size 3 for ISO 5599-1 G1/2
Operating pressure
-0.09 MPa ... 1.6 MPa
Operating pressure
-0.9 bar ... 16 bar
Design
Piston slide valve
Reset type
Mechanical spring
Approval
c UL us - Recognized (OL)
Nominal size
14.5 mm
Grid dimension
71 mm
Air exhaust function
With flow control option
Sealing principle
Soft
Mounting position
Optional
Conforms to standard
ISO 5599-1
Manual override
None
ISO code
307
Piloting type
Direct
Flow direction
Reversible
Symbol
00991022
Overlap
Positive overlap
Pilot pressure
3 bar... 16 bar
Switch-off time
60 ms
Switch-on time
16 ms
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Vibration resistance
Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistance
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Media temperature
-10°C ... 60°C
Sound pressure level
85 dB(A)
Pilot medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature
-10°C ... 60°C
Product weight
910g
Mounting type
On sub-base Via through-hole and screw
Pilot air port 12
Sub-base size 3 for ISO 5599-1
Pilot air port 14
Sub-base size 3 for ISO 5599-1
Pneumatic connection, port 1
Sub-base size 3 for ISO 5599-1
Pneumatic connection, port 2
Sub-base size 3 for ISO 5599-1
Pneumatic connection, port 3
Sub-base size 3 for ISO 5599-1
Pneumatic connection, port 4
Sub-base size 3 for ISO 5599-1
Pneumatic connection, port 5
Sub-base size 3 for ISO 5599-1
Note on materials
RoHS compliant
Material seals
HNBR NBR
Housing material
Die-cast aluminum
Date 11/14/2022
Weight: 0.840
Measurements 5x6x19
Locator: GP04CL88P1
