Siemens M3FB20LX/A Bypass Valve 0-20V 5m³/H 26VA
Last unit- Code
- WS5967
- GTIN
- 7612914015839
- Category
- Valves
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- SIEMENS
- SKU / Internal code
- WS5967
- GTIN
- 7612914015839
- Product type
- Valves
- Condition
- Condition shown in specs
- Stock
- Last unit
- Weight
- 8,846 kg
- Dimensions
- 22x31x54
About this item

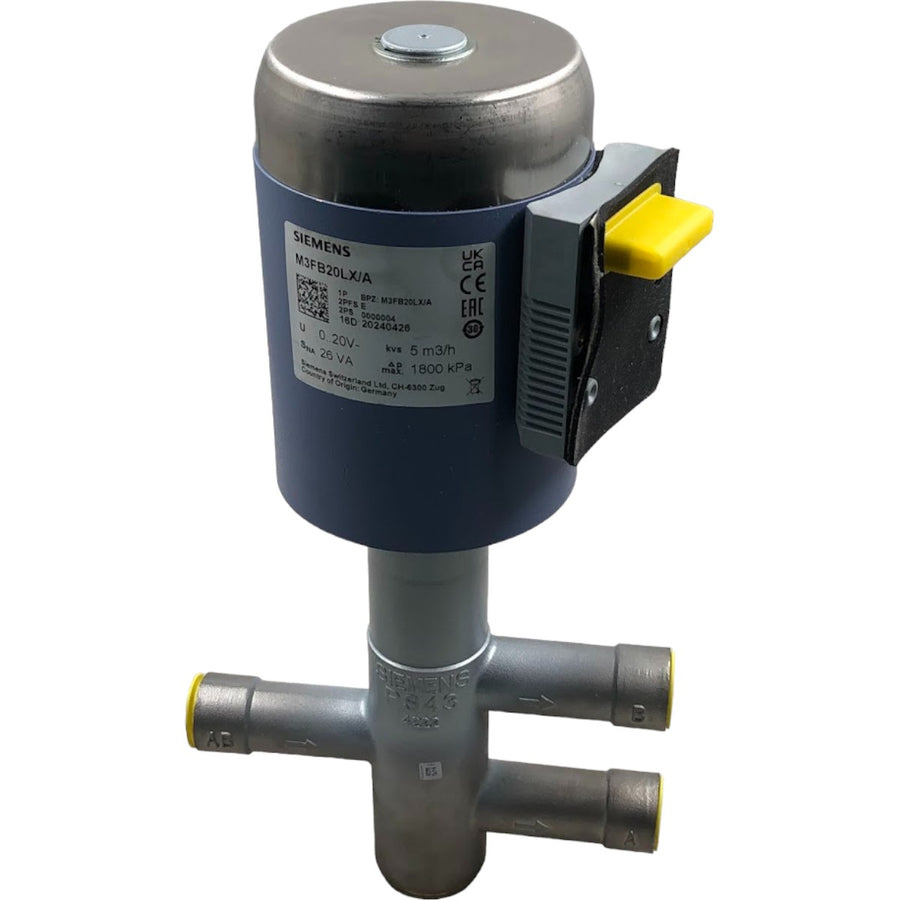

Siemens Diverter Valve M3FB20LX/A 0-20v 5m³/H 26vA
New product out of manufacturer's box
Model: M3FB20LX/A
Refrigerant bypass valve/2-port, solder connection, PN32, DN20, kvs 5, AC 24 V, DC 0...10 V / 4...20 mA / 0...20 Phs
Hermetically sealed control valves for modulating capacity control of refrigeration units and for heat recovery.
PN40 with CrNi steel welded connections
For organic safety refrigerants such as R22, R134a, R404A, R407C, R410A, R507, etc. Not suitable for flammable refrigerants
The ZM electronics must be ordered separately (see accessories)
Modulating control valves for hot gas control, without ZM electronics box..
For use with Staefa controllers (working range 4...8 V)
Operating voltage
Power consumption
Positioning signal
DC 0...10 V, DC 4...20 mA, DC 0...20 V Phs
Positioning time
Spring return function
Degree of protection
Ambient temperature, operation
Mounting position
Permissible operating pressure
Medium temperature
-40…120 C; -40…248F
Valve characteristic
Stroke resolution H/H100
Material, valve body
Material, internal assembly
CrNi steel/brass
Date: 08/02/2024
Weight: 8,846KG
Measurements: 22x31x54
Locator: A18P3B
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment is solely that of the buyer.
Cabo Eletro Comercial LTDA thanks you
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Siemens Diverter Valve M3FB20LX/A 0-20v 5m³/H 26vA
New product out of manufacturer's box
Brand: Siemens
Model: M3FB20LX/A
Refrigerant bypass valve/2-port, solder connection, PN32, DN20, kvs 5, AC 24 V, DC 0...10 V / 4...20 mA / 0...20 Phs
Hermetically sealed control valves for modulating capacity control of refrigeration units and for heat recovery.
PN40 with CrNi steel welded connections
For organic safety refrigerants such as R22, R134a, R404A, R407C, R410A, R507, etc. Not suitable for flammable refrigerants
The ZM electronics must be ordered separately (see accessories)
Summary
Modulating control valves for hot gas control, without ZM electronics box..
For use with Staefa controllers (working range 4...8 V)
PN Class
PN 32
Operating voltage
AC 24 V
Power consumption
26 VA
Positioning signal
DC 0...10 V, DC 4...20 mA, DC 0...20 V Phs
Positioning time
1s
Spring return function
AB-> A closed
Degree of protection
IP54
Ambient temperature, operation
-40…50 °C
Mounting position
Any
Permissible operating pressure
4300kPa
Leakage rate
0.05% of kvs
Medium temperature
-40…120 C; -40…248F
Valve characteristic
Linear
Stroke resolution H/H100
1:200
Material, valve body
Steel
Material, internal assembly
CrNi steel/brass
pmax
1800kPa
kvs
5 m³/h
DN
20
Date: 08/02/2024
Weight: 8,846KG
Measurements: 22x31x54
Locator: A18P3B
