Vicro M900/T Tachometer 3-24VDC
8 in stock- Code
- WS3224
- Category
- Transducers
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Vicro
- SKU / Internal code
- WS3224
- Product type
- Transducers
- Condition
- Condition shown in specs
- Stock
- 8 in stock
- Brand
- Vicro
- Model
- M900
- Accuracy and reliability
- The Vicro M900 Tachometer uses state-of-the-art technology to ensure accurate and reliable measurements.
- Versatility
- The wide measuring range and various functions of the tachometer make it ideal for a variety of applications.
- Ease of use
- The intuitive display and membrane keypad make the tachometer easy to operate.
- Durability
- The impact-resistant housing ensures that the tachometer can withstand demanding working conditions.
- Automotive workshops
- Engine speed measurement, idle adjustment, engine problem diagnosis.
- Research laboratories
- Measurement of rotational speed of machines and equipment, material testing.
- Industry
- Measurement of rotational speed of motors, pumps, fans and other equipment.
- Maintenance
- Measurement of rotational speed of shafts, pulleys and other components.
- Date
- 02/02/2024
- Weight
- 0.4 kg
- Measurements
- 10x15x24
- Locator
- A5P2B
About this item

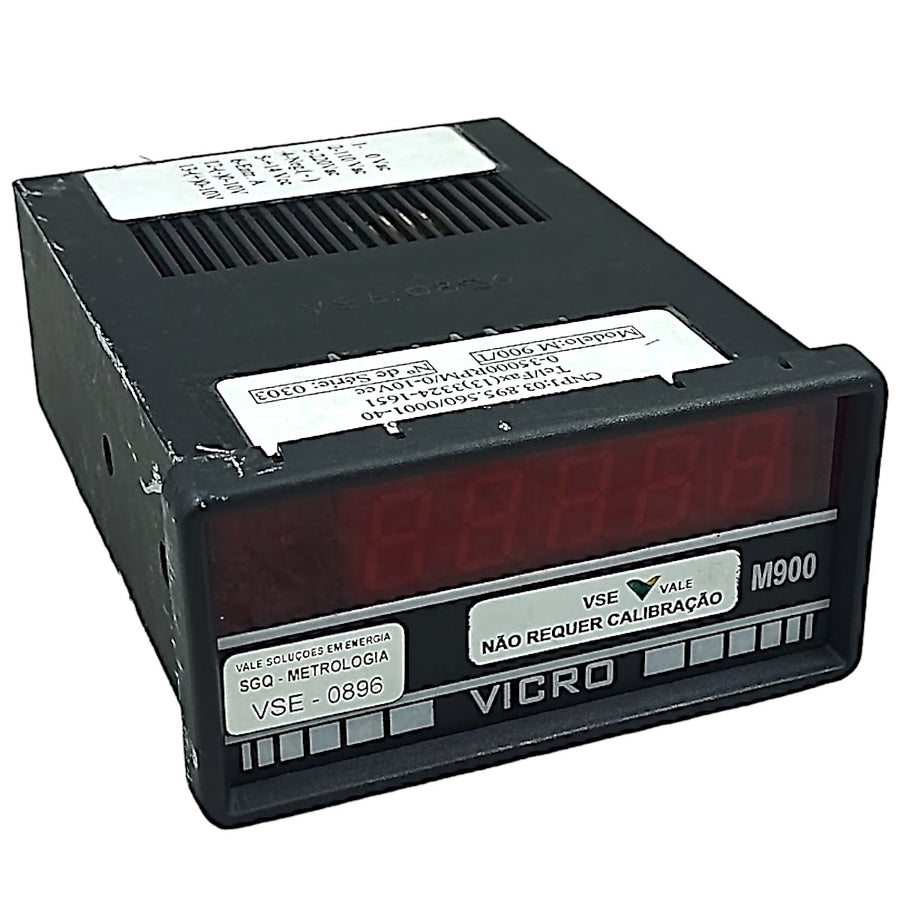

Vicro M900 Tachometer
USED product out of manufacturer's box
A tachometer (or tachograph) is a device that measures the rotational speed of a rotating shaft, usually expressed in revolutions per minute (RPM). The term "tachometer" is a combination of the words "tacho" (referring to speed) and "meter" (meaning measure).
The tachometer plays an important role in monitoring and controlling rotational speed in various contexts, contributing to the safety, efficiency, and proper maintenance of motors and rotating equipment.
M 900/T Tachometers/Indicators are used to measure RPM, M/Min, Km/H, Sheets/Min, Sheets/Hour, analog variables,............etc. They receive signals from encoders, inductive sensors, photoelectric sensors, dry contacts, Namur, magnetic pick-ups, 0-5Vdc, 0-10Vdc, 0-20mA, 4-20mA,.....etc.
Using 1 Pulse/Revolution sensors (e.g., Inductive), they can measure RPM, M/Min, Sheets/Min, etc., updating the display with each pulse passage (for M/Min or Km/H, it is necessary to provide the diameter of the pulley where the speed will be indicated, or upon request, an adjustment via keyboard on the front panel (only 06-digit display) for a correction factor can be provided). They have an input to receive 1 Pulse/Revolution or a frequency input where the number of pulses is counted in 1 second and displayed, being used with 60 Pulses/Revolution Encoders or Magnetic Pick-ups with 11, 60 or more teeth gears. They can have 04 (999.9 or 9999) or 06 (99999.9 or 999999) digits in a red display, have power for sensors, and connection via screw terminals for conductor fastening. (See also our SENSORS and OPTICAL SENSORS page).
The M 900/T Tachometer has optional ANALOG OUTPUT of 0-5 Vdc, 0-10 Vdc, 0-20 mA or 4-20 mA (e.g.: 0-500/0-10 Vdc) which can be used with a 1 pulse/revolution signal input, and also HOLD to freeze the reading on the display (Equipped with rear terminals for switching and consequent freezing of the reading, application example: freezing the reading when a grinding wheel breaks).
General Features
Power Supply - 110/220Vac, 12 or 24 Vdc.
Sensor Power Supply - 14 Vdc +/- 20% (100 mA).
Input Frequency - Up to 35Khz
Consumption - 5 VA. The Vicro M900 Tachometer is a high-quality measuring instrument, designed for professionals who demand precision and reliability. It offers a wide range of features to meet the needs of various applications, from automotive workshops to research laboratories.
Accuracy and reliability: The Vicro M900 Tachometer uses state-of-the-art technology to ensure accurate and reliable measurements.
Versatility: The wide measuring range and various functions of the tachometer make it ideal for a variety of applications.
Ease of use: The intuitive display and membrane keypad make the tachometer easy to operate.
Durability: The impact-resistant housing ensures that the tachometer can withstand demanding working conditions.
Automotive workshops: Engine speed measurement, idle adjustment, engine problem diagnosis.
Research laboratories: Measurement of rotational speed of machines and equipment, material testing.
Industry: Measurement of rotational speed of motors, pumps, fans and other equipment.
Maintenance: Measurement of rotational speed of shafts, pulleys and other components.
Date: 02/02/2024
Weight: 0.400 KG
Measurements: 10x15x24
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply.
If the operation is subject to this tax, the responsibility for payment lies solely with the buyer.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Vicro M900 Tachometer
USED product out of manufacturer's box
Brand: Vicro
Model: M900
A tachometer (or tachograph) is a device that measures the rotational speed of a rotating shaft, usually expressed in revolutions per minute (RPM). The term "tachometer" is a combination of the words "tacho" (referring to speed) and "meter" (meaning measure).
The tachometer plays an important role in monitoring and controlling rotational speed in various contexts, contributing to the safety, efficiency, and proper maintenance of motors and rotating equipment.
M 900/T Tachometers/Indicators are used to measure RPM, M/Min, Km/H, Sheets/Min, Sheets/Hour, analog variables,............etc. They receive signals from encoders, inductive sensors, photoelectric sensors, dry contacts, Namur, magnetic pick-ups, 0-5Vdc, 0-10Vdc, 0-20mA, 4-20mA,.....etc.
Using 1 Pulse/Revolution sensors (e.g., Inductive), they can measure RPM, M/Min, Sheets/Min, etc., updating the display with each pulse passage (for M/Min or Km/H, it is necessary to provide the diameter of the pulley where the speed will be indicated, or upon request, an adjustment via keyboard on the front panel (only 06-digit display) for a correction factor can be provided). They have an input to receive 1 Pulse/Revolution or a frequency input where the number of pulses is counted in 1 second and displayed, being used with 60 Pulses/Revolution Encoders or Magnetic Pick-ups with 11, 60 or more teeth gears. They can have 04 (999.9 or 9999) or 06 (99999.9 or 999999) digits in a red display, have power for sensors, and connection via screw terminals for conductor fastening. (See also our SENSORS and OPTICAL SENSORS page).
The M 900/T Tachometer has optional ANALOG OUTPUT of 0-5 Vdc, 0-10 Vdc, 0-20 mA or 4-20 mA (e.g.: 0-500/0-10 Vdc) which can be used with a 1 pulse/revolution signal input, and also HOLD to freeze the reading on the display (Equipped with rear terminals for switching and consequent freezing of the reading, application example: freezing the reading when a grinding wheel breaks).
General Features
Power Supply - 110/220Vac, 12 or 24 Vdc.
Sensor Power Supply - 14 Vdc +/- 20% (100 mA).
Input Frequency - Up to 35Khz
Consumption - 5 VA. The Vicro M900 Tachometer is a high-quality measuring instrument, designed for professionals who demand precision and reliability. It offers a wide range of features to meet the needs of various applications, from automotive workshops to research laboratories.
Benefits:
Accuracy and reliability: The Vicro M900 Tachometer uses state-of-the-art technology to ensure accurate and reliable measurements.
Versatility: The wide measuring range and various functions of the tachometer make it ideal for a variety of applications.
Ease of use: The intuitive display and membrane keypad make the tachometer easy to operate.
Durability: The impact-resistant housing ensures that the tachometer can withstand demanding working conditions.
Applications:
Automotive workshops: Engine speed measurement, idle adjustment, engine problem diagnosis.
Research laboratories: Measurement of rotational speed of machines and equipment, material testing.
Industry: Measurement of rotational speed of motors, pumps, fans and other equipment.
Maintenance: Measurement of rotational speed of shafts, pulleys and other components.
Date: 02/02/2024
Weight: 0.400 KG
Measurements: 10x15x24
Locator: A5P2B
