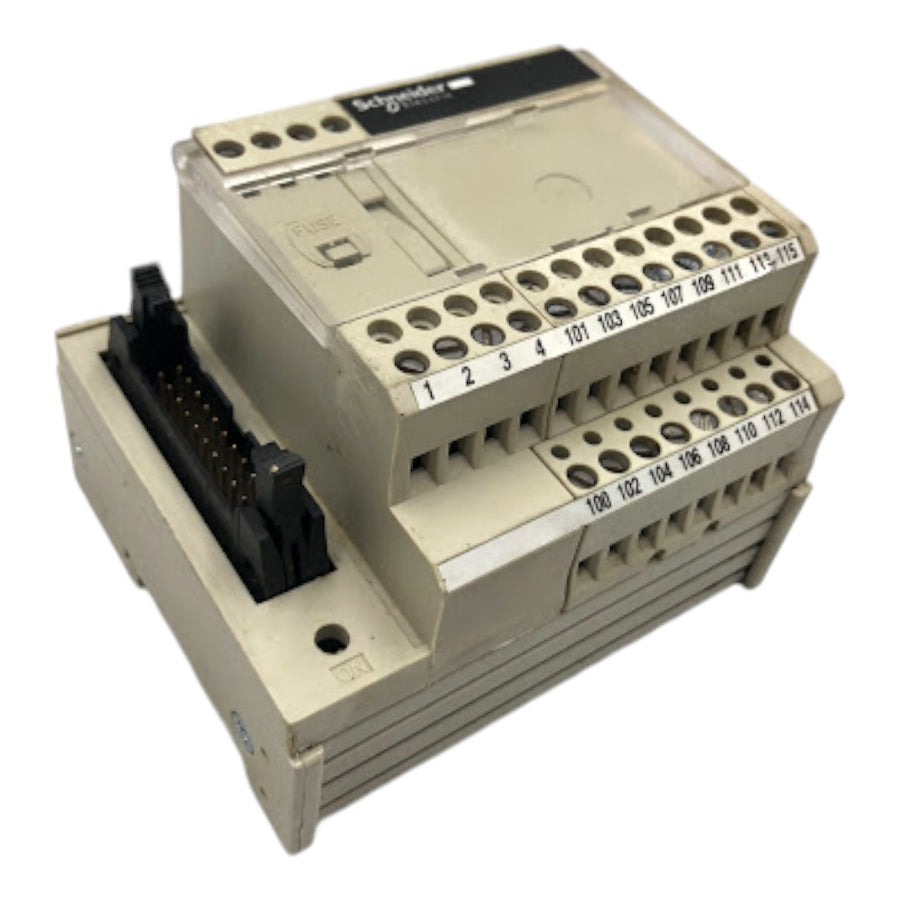

Schneider ABE7H16R50 Passive Digital I/O Sub-base 19-30V

Schneider ABE7H16R50 19-30v Passive Digital I/O Sub-base

Used product out of manufacturer's box

Brand: SCHNEIDER

Model: ABE7-H16R50



A digital I/O (input and output) sub-base is a component used in industrial automation systems to facilitate the connection of digital signals, such as buttons, sensors, relays, and actuators, to a programmable logic controller (PLC) or other control device. The main function of the sub-base is to serve as an interface between the PLC and external devices, organizing the input and output points and providing a physical base for digital I/O modules.



Features of a Digital I/O Sub-base

Connection points: it has terminals to connect input devices (such as sensors) and output devices (such as actuators).

Organization and modularity: many digital I/O sub-bases are modular, making it easy to expand or modify the control system as needed.

Status indication: some sub-bases have LEDs to indicate the status of input and output points, facilitating visualization and diagnosis.

Protection: they can offer protection against short-circuit, overvoltage, and reverse polarity, ensuring the safety of connected devices.



Main

Product line

Modicon ABE7

Product or component type

Passive digital I/O sub-base

Sub-base type

I/O sub-base

Rated supply voltage [Us]

19...30 V conforming to IEC 61131-2

Number of channels

16

Number of terminals per channel

1

Connections - terminals

Screw-type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28 ... 16 AWG) Flexible with cable end

Screw-type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) Solid

Screw-type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) Flexible without cable end

Screw-type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28 ... 20 AWG) Flexible with cable end

Screw-type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) Solid

Complementary

Supply voltage type

DC

Number of horizontal lines

2

Status LED indicator

1 LED (Green) Power on

Polarity distribution

No

Short-circuit protection

2 A internal fuse, 5 x 20 mm, Fast-acting (PLC end)

Connector type

HE-10

Number of pins

20 pins

Fixing mode

By clips (35mm DIN rail)

By screws (solid plate with fixing kit)

Maximum supply current

1.8 A

Current per channel

0.5 A

Maximum current per output common

1.8 A

Voltage drop across power supply fuse

0.3 V

[Ui] Rated insulation voltage

2000 V

Installation category

II conforming to IEC 60664-1

Tightening torque

0.6 N.m with a 3.5 mm flat screwdriver





Operating Voltage:

Maximum (incl. tolerance) 440 V AC

Minimum 12 V AC

Rated Insulation Voltage (Ui):

Cont. according to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (Uimp):

4kV

At 2,000 m 5 kV

At sea level 6.2 kV

Dielectric Test Voltage:

50/60 Hz-1 min: 2 kV

Input Voltage Type:

AC

Rated Current (In):

16A

Rated Short-Circuit Capacity:

(AC) 3 kA

(400 V AC) 3 kA

(400 V) 3 kA

Rated Conditional Short-Circuit Current (Inc):

(230 V) 3 kA

(400 V) 3 kA

Rated Frequency (f):

50/60Hz

Power Loss:

7.5 W

Under rated operating conditions per pole 2.5 W

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Resistance:

20,000 AC cycles

Mechanical Resistance:

20,000 cycles

Number of Protected Poles:

3

Number of Poles:

3

Overvoltage Category:

III

Opening Torque:

2 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Cage terminal

Actuator Marking:

I/O

Actuator Material:

Insulation Group II, Black, Sealable

Housing Material:

Insulation Group II, RAL 7035

DIN Rail Mounting:

TH35-15 (mounting rail 35 x 15 mm) acc. to IEC 60715

TH35-7.5 (mounting rail 35 x 7.5 mm) acc. to IEC 60715

Mounting Position:

Any

Recommended Screwdriver:

Pozidriv 2

Available Accessories:

No





Date: 10/16/2024

Weight: 0.176Kg

Measurements: 10x15x24

Locator: A24P2B
