Balluff BGL000R BGL 20A-001-S49 Optical Sensor
Only 2 left- Code
- WS393
- Category
- Sensor
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Balluff
- SKU / Internal code
- WS393
- Product type
- Sensor
- Condition
- Condition shown in specs
- Stock
- Only 2 left
- Weight
- 0,1 kg
About this item
New product in manufacturer's box
Model: BGL000R BGL 20A-001-S49
Fork optical sensor in metal housing
10 x 40 x 58 mm
PNP Normally open/normally closed contact (NO/NC)
Operating principle
Fork optical sensor
Optical operating principle
One-way barrier optical sensor
Beam characteristic
Light spot size
Ø 1.0 mm Light output
Plug connector, M8x1-Connector, 3-pin
Housing material
Zinc, Die-cast, Painted
Active surface, material
Operating voltage UB
Certification/conformity
Date 06/01/2023
Measurements 3x12x12
Dear customers, if the material is for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment rests solely with the buyer.
Cabo Eletro Comercial ltda thanks you
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.

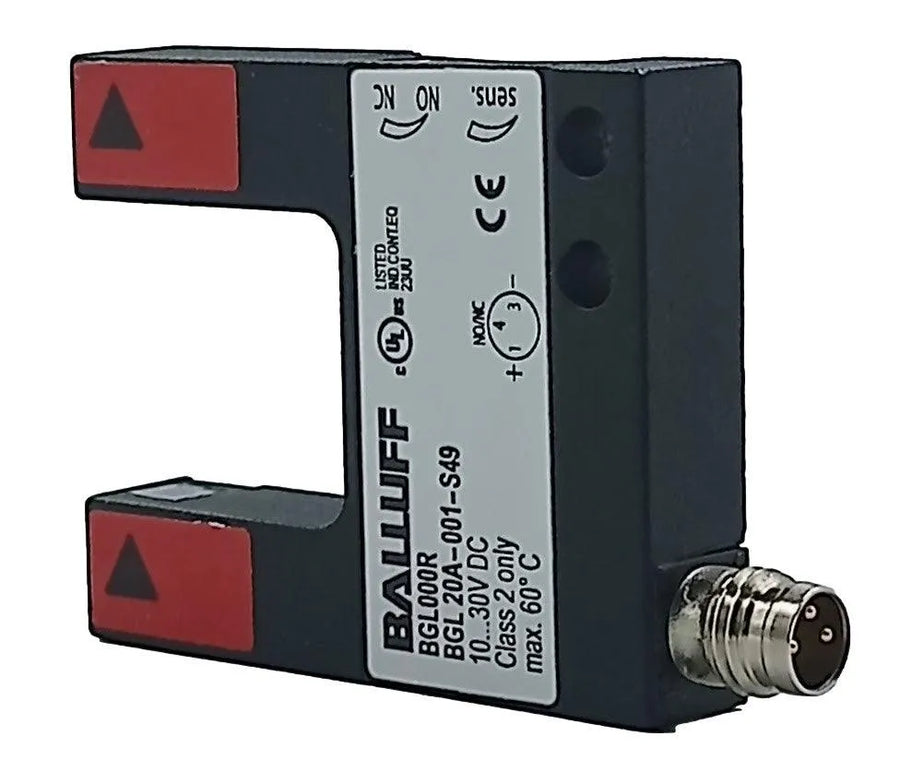

Balluff BGL000R BGL 20A-001-S49 Optical Sensor
New product in manufacturer's box
Brand: Balluff
Model: BGL000R BGL 20A-001-S49
Fork optical sensor in metal housing
Series
A
Dimensions
10 x 40 x 58 mm
Fork width
20 mm
Interface
PNP Normally open/normally closed contact (NO/NC)
Operating principle
Fork optical sensor
Optical operating principle
One-way barrier optical sensor
Beam characteristic
Divergent
Light type
LED Red light
Light spot size
Ø 1.0 mm Light output
Connection
Plug connector, M8x1-Connector, 3-pin
Housing material
Zinc, Die-cast, Painted
Active surface, material
Glass
Operating voltage UB
10...30 VDC
Certification/conformity
CE
UKCA
cULus
WEEE
Brand
Global
Date 06/01/2023
Weight: 0.100
Measurements 3x12x12
Locator: B6P3B
