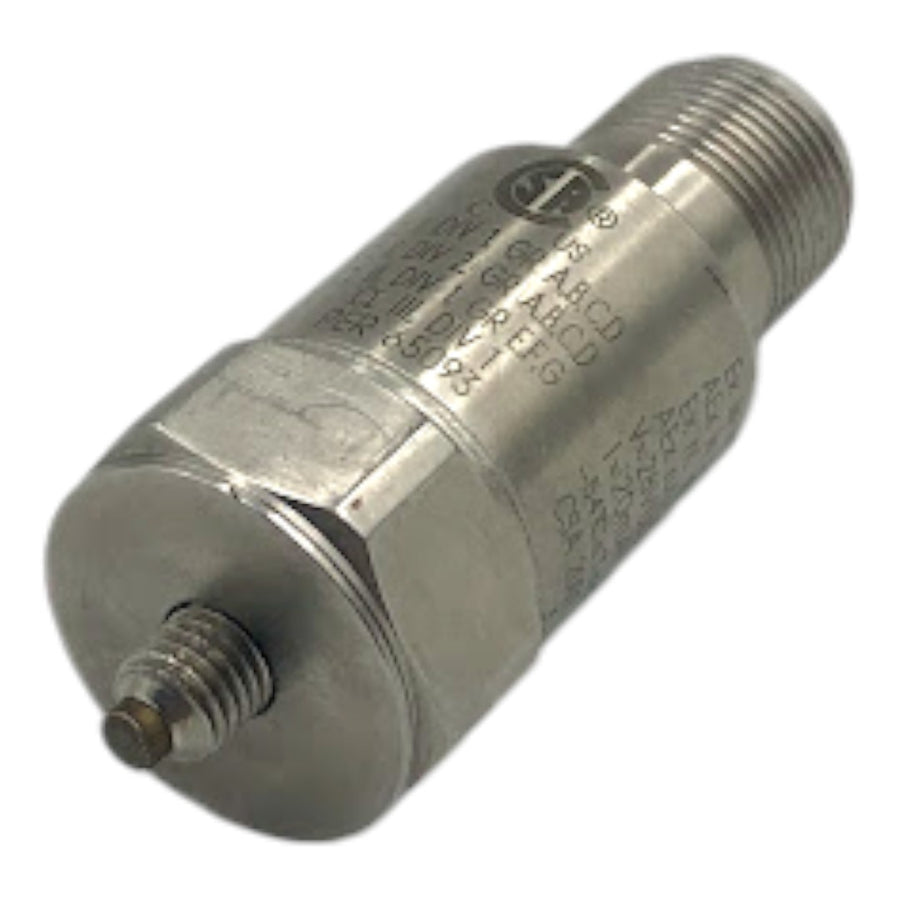

IMI EXVO622B01 Speed Sensor 28VDC 20mA
Last unit- Code
- WS7378
- GTIN
- 7893801753519
- Category
- Automation control components
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- IMI
- SKU / Internal code
- WS7378
- GTIN
- 7893801753519
- Product type
- Automation control components
- Condition
- Condition shown in specs
- Stock
- Last unit
- Brand
- IMI
- Model
- EXVO622B01 28VDC 20MA
- Sensitivity
- (+-10%)100 mV/inch/sec (3937 mV/m/sec)
- Frequency range
- (+-3dB)180 to 540,000 cpm (3 to 9,000 Hz)
- Sensing element
- Ceramic
- Measurement range
- +-50 inch/sec (+-1.27 m/sec)
- Date
- 12/02/2024
- Weight
- 0.2 kg
- Dimensions
- 10X15X24
- Locator
- B8P2A
About this item
Speed Sensor IMI EXVO622B01 28vDC 20mA
NEW product out of manufacturer's box
Model: EXVO622B01 28VDC 20MA
A speed sensor is a device used to measure the speed of a moving object, such as a vehicle, engine, gear, or even the flow of fluids in specific systems. It converts movement or rotation into an electrical signal, which can be analyzed and interpreted by control or measurement systems.
How does it work?
The operation of a speed sensor depends on its type and operating principle. The most common sensors use the following methods:
Detects changes in magnetic fields caused by the rotation of an object, such as a disc or gear.
Produces an electrical signal proportional to the speed of movement.
Inductive (magneto-inductive):
Based on electromagnetic induction, generating an electrical signal when a metallic object moves close to the sensor.
Uses infrared light or laser to detect the interruption of a light beam or reflections caused by the movement of an object.
Emits high-frequency sound waves and measures the time it takes for them to return to the sensor, allowing the speed of fluids or objects to be calculated.
GPS (Global Positioning System).
HIGH-FREQUENCY INDUSTRIAL ICP SPEED SENSOR
Industrial ceramic shear, intrinsically safe ICP® accel, 100 mV/ips, 3 to 9k Hz, top exit, 2-pin connection, frequency sweep ISO 17025 accredited calibration
Sensitivity: (+-10%)100 mV/inch/sec (3937 mV/m/sec)
Frequency range: (+-3dB)180 to 540,000 cpm (3 to 9,000 Hz)
Sensing element: Ceramic
Measurement range: +-50 inch/sec (+-1.27 m/sec)
Date: 12/02/2024
Weight: 0.200Kg
Dimensions: 10X15X24
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may be applied. If the operation is subject to this tax, the responsibility for payment lies solely with the buyer.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Speed Sensor IMI EXVO622B01 28vDC 20mA
NEW product out of manufacturer's box
Brand: IMI
Model: EXVO622B01 28VDC 20MA
A speed sensor is a device used to measure the speed of a moving object, such as a vehicle, engine, gear, or even the flow of fluids in specific systems. It converts movement or rotation into an electrical signal, which can be analyzed and interpreted by control or measurement systems.
How does it work?
The operation of a speed sensor depends on its type and operating principle. The most common sensors use the following methods:
Hall Effect:
Detects changes in magnetic fields caused by the rotation of an object, such as a disc or gear.
Produces an electrical signal proportional to the speed of movement.
Inductive (magneto-inductive):
Based on electromagnetic induction, generating an electrical signal when a metallic object moves close to the sensor.
Optical:
Uses infrared light or laser to detect the interruption of a light beam or reflections caused by the movement of an object.
Ultrasonic:
Emits high-frequency sound waves and measures the time it takes for them to return to the sensor, allowing the speed of fluids or objects to be calculated.
GPS (Global Positioning System).
HIGH-FREQUENCY INDUSTRIAL ICP SPEED SENSOR
Industrial ceramic shear, intrinsically safe ICP® accel, 100 mV/ips, 3 to 9k Hz, top exit, 2-pin connection, frequency sweep ISO 17025 accredited calibration
Sensitivity: (+-10%)100 mV/inch/sec (3937 mV/m/sec)
Frequency range: (+-3dB)180 to 540,000 cpm (3 to 9,000 Hz)
Sensing element: Ceramic
Measurement range: +-50 inch/sec (+-1.27 m/sec)
Date: 12/02/2024
Weight: 0.200Kg
Dimensions: 10X15X24
Locator: B8P2A
