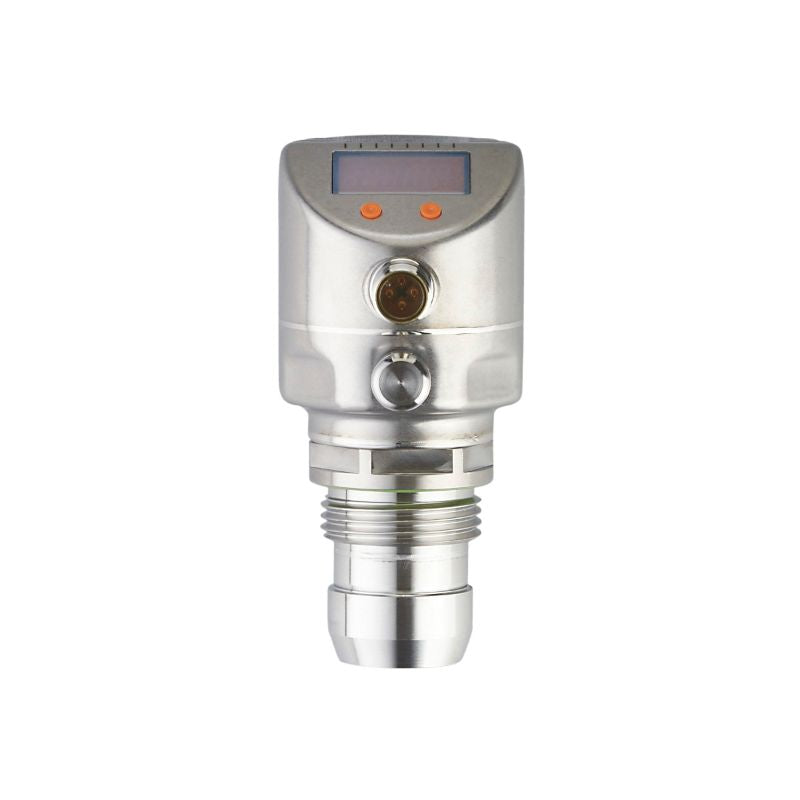

Sensor with Display IFM PI2898 PI-,25BREA01-MFRKG/US/ /P
Last unit- Code
- 4695
- GTIN
- 7891563116788
- Category
- Automation control components
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- IFM
- SKU / Internal code
- 4695
- GTIN
- 7891563116788
- Product type
- Automation control components
- Condition
- Condition shown in specs
- Stock
- Last unit
- Weight
- 0,26 kg
About this item
Used product out of manufacturer's box
Model: PI2898 PI-,25BREA01-MFRKG/US/ /P
Date 11/25/2021
Measurements 6x7x11
Locator: GP04CL93P4
Cabo Eletro Comercial ltda thanks you
Stainless steel housing for food and beverage industry applications
Flush and hygienic design
Resistant to high-pressure cleaning with aggressive detergents
High temperature resistance and high degree of protection
Programmable analog and switching output. Output signal: switching signal; analog signal; IO-Link; (configurable)
Measurement range
-0.0124...0.25 bar
-12.4...250 mbar
-5...100.4 inH2O
Process connection: G 1 threaded connection external thread sealing cone - Attention: The device can only be mounted on a process connection for the G1 sealing cone!; The G1A sealing cone of the device is only suitable for adapters with metal stop!
Application area
Special feature Gold-plated contacts
Application flush mounting for the food and beverage industry
Substances Pastes and solids; liquid and gaseous fluids
Fluid temperature [°C] -25...125; (145 max. 1h)
Min. burst pressure
Pressure resistance
Vacuum resistance [mbar] -1000
Pressure type relative pressure
MAWP in applications according to CRN [bar] 10
Electrical data
Min. insulation resistance [MOmega] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Integrated watchdog yes
Operating voltage [V] 20...32 DC
Current consumption [mA] 3.6...21
Ready delay [s] 1
Operating voltage [V] 18...32 DC
Current consumption [mA] < 45
Ready delay [s] 0.5
Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Sensor with Display IFM PI2898 PI-,25BREA01-MFRKG/US/ /P
Used product out of manufacturer's box
Brand: IFM
Model: PI2898 PI-,25BREA01-MFRKG/US/ /P
Date 11/25/2021
Weight: 0.260
Measurements 6x7x11
Locator: GP04CL93P4
Cabo Eletro Comercial ltda thanks you
IH
Stainless steel housing for food and beverage industry applications
Flush and hygienic design
Resistant to high-pressure cleaning with aggressive detergents
High temperature resistance and high degree of protection
Programmable analog and switching output. Output signal: switching signal; analog signal; IO-Link; (configurable)
Measurement range
-0.0124...0.25 bar
-12.4...250 mbar
-5...100.4 inH2O
-1.24...25 kPa
Process connection: G 1 threaded connection external thread sealing cone - Attention: The device can only be mounted on a process connection for the G1 sealing cone!; The G1A sealing cone of the device is only suitable for adapters with metal stop!
Application area
Special feature Gold-plated contacts
Application flush mounting for the food and beverage industry
Substances Pastes and solids; liquid and gaseous fluids
Fluid temperature [°C] -25...125; (145 max. 1h)
Min. burst pressure
30000 mbar
12044 inH2O
3000 kPa
Pressure resistance
6000 mbar
2400 inH2O
600 kPa
Vacuum resistance [mbar] -1000
Pressure type relative pressure
MAWP in applications according to CRN [bar] 10
Electrical data
Min. insulation resistance [MOmega] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Integrated watchdog yes
2 wires
Operating voltage [V] 20...32 DC
Current consumption [mA] 3.6...21
Ready delay [s] 1
3 wires
Operating voltage [V] 18...32 DC
Current consumption [mA] < 45
Ready delay [s] 0.5
Inputs/outputs
Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
