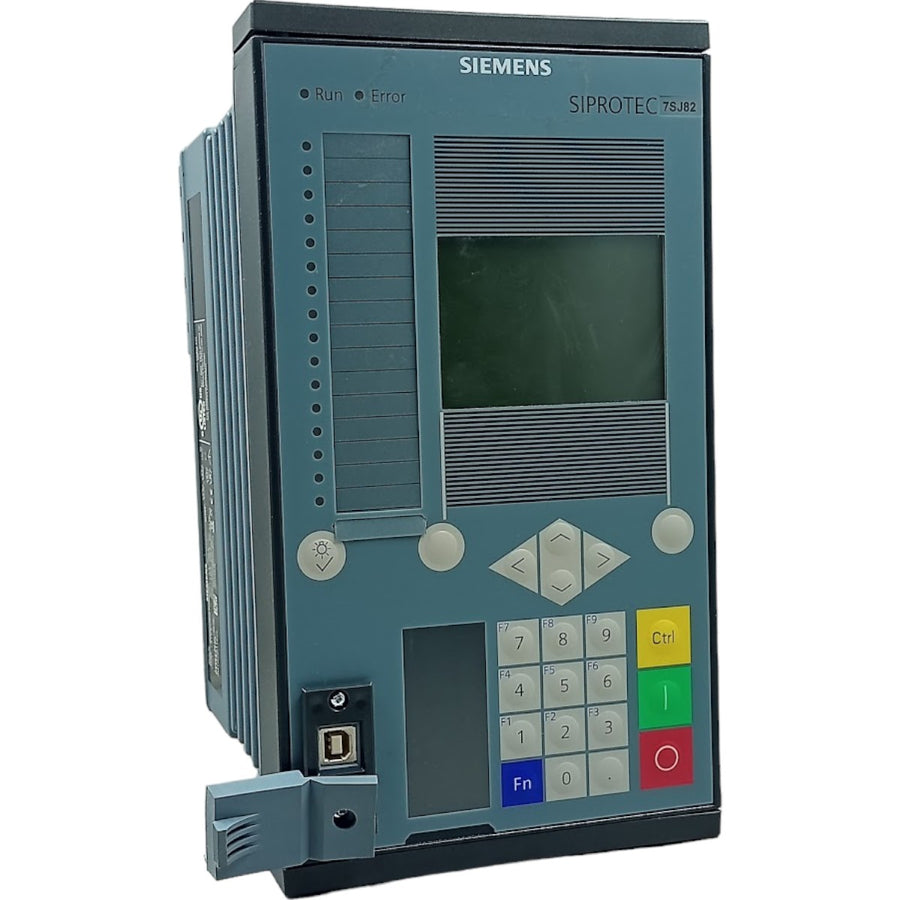

Siemens SIPROTEC 7SJ82 P1J343172 Protection Relay
Last unit- Code
- WS5023
- GTIN
- 7892940830402
- Category
- Special relays
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Siemens
- SKU / Internal code
- WS5023
- GTIN
- 7892940830402
- Product type
- Special relays
- Condition
- Condition shown in specs
- Stock
- Last unit
- Corrente nominal
- 1A / 5A ~
- Frequencia nominal
- 50 Hz / 60Hz
- Tensão Auxiliar
- 110v-250vDC
- Weight
- 6,3 kg
- Dimensions
- 30x31x39
About this item
Siemens SIPROTEC 7SJ82 P1J343172 Overcurrent Protection Relay
NEW product in manufacturer's box
Model: 7SJ82 P1J343172
An overcurrent protection relay is an electrical device used in electrical circuit protection systems to detect and respond to overcurrent conditions, which can occur due to overloads or short circuits. This relay monitors the current flowing through a circuit, and if the current exceeds a predefined value, it activates an interruption mechanism to protect the circuit and connected equipment.
Current Monitoring:
The overcurrent protection relay is connected to the circuit being protected, often through current transformers (CTs) that allow current measurement without needing to interrupt the main circuit.
Overcurrent Detection:
The relay is configured with a limit current value, known as the setpoint. When the current flowing through the circuit exceeds this value, the relay detects an overcurrent condition.
Overcurrent and Feeder Protection
SIPROTEC 7SJ82 overcurrent protection relay designed specifically for economical and compact protection of feeders, lines, and capacitor banks in medium and high voltage systems.
Feeder and overcurrent protection for all voltage levels
Inputs and outputs:
4 current transformers,
4 voltage transformers (optional),
11 or 23 binary inputs,
9 or 16 binary outputs,
8 current transformers,
7 binary inputs,
7 binary outputs
Hardware flexibility:
Different hardware quantity structures for binary inputs and outputs are available on the 1/3 base module. 1/6 expansion modules cannot be added; available with large or small display.
1/3 × 19 inches
Rated current: 1A / 5A ~
Rated frequency: 50 Hz / 60Hz
Auxiliary Voltage: 110v-250vDC
100v-230vAC 45-65Hz
Date: 05/06/2024
Weight: 6.300Kg
Measurements: 30x31x39
Locator: B11P5A
Dear customers, if the material is intended for resale, ST (Tax Substitution) value may be incurred. If the transaction is subject to this tax, the responsibility for payment is exclusively the buyer's.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Siemens SIPROTEC 7SJ82 P1J343172 Overcurrent Protection Relay
NEW product in manufacturer's box
Brand: Siemens
Model: 7SJ82 P1J343172
An overcurrent protection relay is an electrical device used in electrical circuit protection systems to detect and respond to overcurrent conditions, which can occur due to overloads or short circuits. This relay monitors the current flowing through a circuit, and if the current exceeds a predefined value, it activates an interruption mechanism to protect the circuit and connected equipment.
Current Monitoring:
The overcurrent protection relay is connected to the circuit being protected, often through current transformers (CTs) that allow current measurement without needing to interrupt the main circuit.
Overcurrent Detection:
The relay is configured with a limit current value, known as the setpoint. When the current flowing through the circuit exceeds this value, the relay detects an overcurrent condition.
Overcurrent and Feeder Protection
SIPROTEC 7SJ82 overcurrent protection relay designed specifically for economical and compact protection of feeders, lines, and capacitor banks in medium and high voltage systems.
Main function:
Feeder and overcurrent protection for all voltage levels
Inputs and outputs:
4 current transformers,
4 voltage transformers (optional),
11 or 23 binary inputs,
9 or 16 binary outputs,
or
8 current transformers,
7 binary inputs,
7 binary outputs
Hardware flexibility:
Different hardware quantity structures for binary inputs and outputs are available on the 1/3 base module. 1/6 expansion modules cannot be added; available with large or small display.
Housing width:
1/3 × 19 inches
Rated current: 1A / 5A ~
Rated frequency: 50 Hz / 60Hz
Auxiliary Voltage: 110v-250vDC
100v-230vAC 45-65Hz
Date: 05/06/2024
Weight: 6.300Kg
Measurements: 30x31x39
Locator: B11P5A
Dear customers, if the material is intended for resale, ST (Tax Substitution) value may be incurred. If the transaction is subject to this tax, the responsibility for payment is exclusively the buyer's.
Cabo Eletro Comercial LTDA thanks you.
