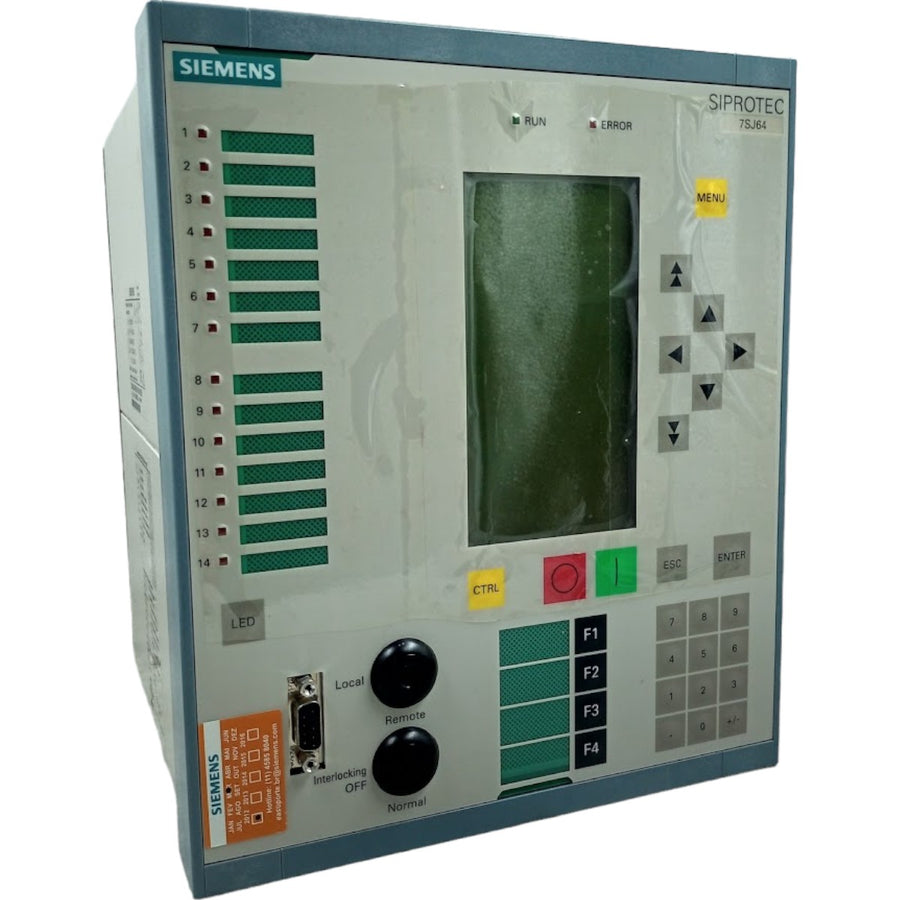

Siemens Siprotec 7SJ6425-5EB92-1FA0-Z/EE Protection Relay
Only 3 left- Code
- WS5028
- GTIN
- 7897000860269
- Category
- Special relays
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Siemens
- SKU / Internal code
- WS5028
- GTIN
- 7897000860269
- Product type
- Special relays
- Condition
- Condition shown in specs
- Stock
- Only 3 left
- Corrente Nominal
- 5A 50/60Hz
- Tensão Nominal
- 100-125vAC
- Weight
- 9,2 kg
- Dimensions
- 30X36X44
About this item
NEW product in manufacturer's box
Model: 7SJ6425-5EB92-1FA0-Z/EE
A multifunctional protection relay is an electrical device designed to provide comprehensive and flexible protection in electrical systems against a variety of faults and abnormal conditions. Unlike specific protection relays, which have limited functions, multifunctional protection relays are capable of performing multiple protection functions in a single device.
MULTIFUNCTIONAL PROTECTION RELAY SYNCHRONIZATION (OPTIONAL) AND RESISTANCE TEMPERATURE DETECTOR INTERFACE, CASE 1/2 19", 20BI, 8BO, 2 POWER RELAYS, (4 CONTACTS) GRAPHIC DISPLAY, 1 WATCHDOG CONTACT PHASE CURRENT TRANSFORMER 5A
The SIPROTEC 7SJ64 can be used as a protection control and monitoring relay for distribution feeders and transmission lines of any voltage in solidly grounded, low-resistance grounded, ungrounded, or compensated neutral point structured networks.
Multifunctional protection with SIPROTEC 7SJ64 synchronization
The relay is suitable for radial or looped networks and for lines with single-terminal or multi-terminal feeds. The SIPROTEC 7SJ64 is equipped with a synchronization function that provides ‘synchronism check’ (classic) and ‘synchronous/asynchronous switching’ operating modes (which takes into account the mechanical delay of the circuit breaker). Motor protection includes undervoltage monitoring, starting time supervision, restart inhibition, locked rotor, load congestion protection, as well as motor statistics.
Rated Current: 5A 50/60Hz
Rated Voltage: 100-125vAC
4 current transformers
4 voltage transformers
7 to 48 binary inputs
5 to 21 output relays
Up to 4 high-resistance relays
Text display or graphic display
Flush-mounting enclosure, surface mounting or separate display
Communication interfaces
–IEC 60870-5-103
Additional port
Time synchronization via IRIG B/DCF77
Date: 05/06/2024
Weight: 9,200Kg
Measurements: 30X36X44
Locator: A15P3C
Dear customers, if the material is for resale, the ST (Substituição Tributária) value may apply. If the operation is subject to this tax, the payment responsibility is solely the buyer's.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Siemens Siprotec 7SJ6425-5EB92-1FA0-Z/EE Protection Relay
NEW product in manufacturer's box
Brand: Siemens
Model: 7SJ6425-5EB92-1FA0-Z/EE
A multifunctional protection relay is an electrical device designed to provide comprehensive and flexible protection in electrical systems against a variety of faults and abnormal conditions. Unlike specific protection relays, which have limited functions, multifunctional protection relays are capable of performing multiple protection functions in a single device.
MULTIFUNCTIONAL PROTECTION RELAY SYNCHRONIZATION (OPTIONAL) AND RESISTANCE TEMPERATURE DETECTOR INTERFACE, CASE 1/2 19", 20BI, 8BO, 2 POWER RELAYS, (4 CONTACTS) GRAPHIC DISPLAY, 1 WATCHDOG CONTACT PHASE CURRENT TRANSFORMER 5A
The SIPROTEC 7SJ64 can be used as a protection control and monitoring relay for distribution feeders and transmission lines of any voltage in solidly grounded, low-resistance grounded, ungrounded, or compensated neutral point structured networks.
Multifunctional protection with SIPROTEC 7SJ64 synchronization
The relay is suitable for radial or looped networks and for lines with single-terminal or multi-terminal feeds. The SIPROTEC 7SJ64 is equipped with a synchronization function that provides ‘synchronism check’ (classic) and ‘synchronous/asynchronous switching’ operating modes (which takes into account the mechanical delay of the circuit breaker). Motor protection includes undervoltage monitoring, starting time supervision, restart inhibition, locked rotor, load congestion protection, as well as motor statistics.
Rated Current: 5A 50/60Hz
Rated Voltage: 100-125vAC
Hardware
4 current transformers
4 voltage transformers
7 to 48 binary inputs
5 to 21 output relays
Up to 4 high-resistance relays
Text display or graphic display
Flush-mounting enclosure, surface mounting or separate display
Communication interfaces
System port
–IEC 61850
–PROFINET
– DNP3TCP
–IEC 60870-5-103
– PROFIBUS-DP
–DNP 3.0
– MODBUS RTU
Service port
– DIGSI 4,
– Modem
– Thermal box
Additional port
– Thermal box
Front port
– DIGSI 4
Time synchronization via IRIG B/DCF77
Date: 05/06/2024
Weight: 9,200Kg
Measurements: 30X36X44
Locator: A15P3C
