ABB Interface Relay CR-M125DC3l 1SVR405612R8300 125vDC

ABB Interface Relay CR-M125DC3l 1SVR405612R8300 125vDC

New Product Out of Manufacturer's Box

Brand: ABB

Model: CR-M125DC3l 1SVR405612R8300

CR-M125DC3L Pluggable interface relay 3c/o, A1-A2=125VDC, 250V/10A, LED

A relay is an electromechanical or electronic device that acts as a switch controlled by an electrical signal. It is used to control a separate electrical circuit, allowing a small electrical signal or low current to control the operation of a larger circuit or higher current. Relays are used in a variety of applications to perform functions such as switching electrical devices, protecting circuits, automating systems, and much more.

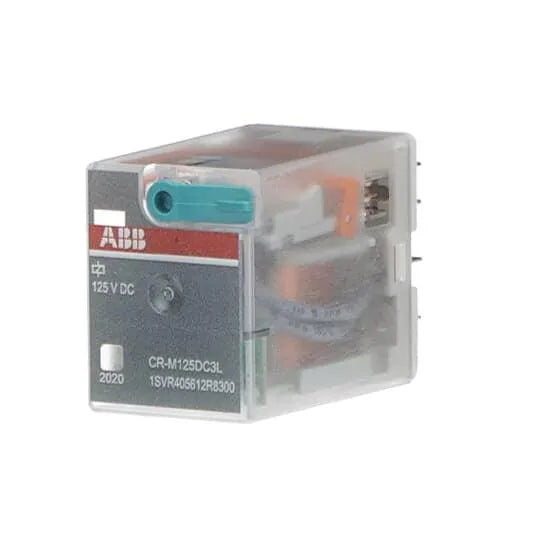

The CR-M125DC3L pluggable interface relay is a miniature relay, which must be plugged into a suitable ABB CR-M socket. When plugged into a socket, the relay and socket combination can be easily mounted on a DIN rail. This relay operates with a rated control supply voltage of 125 V DC and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, allowing for the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button that is used for manual actuation of the relay by locking its output contacts. The test button facilitates testing and commissioning. The relay also has an integrated LED, which provides visual indication of the relay coil energization. Standard sockets, logic sockets, pluggable functional modules, holders, and markers are available as accessories.

Technical

Function: CR-M pluggable miniature interface relay

Sub-function: Relay with integrated LED

Rated control supply voltage (Us): 125 V DC

Rated operational voltage: 250 V AC

Output: 3 c/o (SPDT) contacts

Output signal: 250 V/10 A

Terminal type: Flat pin connections

Rated Operational Current AC-12 (Ie): (230V) 10A

Rated Operational Current AC-15 (Ie): (120 V) 3 A

(230 V) 1.5 A

Rated Operational Current DC-12 (Ie): (24 V) 10 A

Rated Operational Current DC-13 (Ie): (24 V) 2.5 A

(250 V) 0.1 A

Rated insulation voltage (Ui): 250V

Degree of protection: IP40

Mounting position: 1

Standards: CAN/CSA C22.2 No.14

IEC/EN 63000

IEC/EN 61810-1

UL 508

UL/CSA Technical

UL/CSA max operating voltage: 300 V AC

UL/CSA contact rating: B300

UL/CSA pilot duty: B300

Flammability according to UL94: HB

Date: 09/05/2023

Weight: 0.035

Measurements: 3x3x4

Locator: B12P2C
