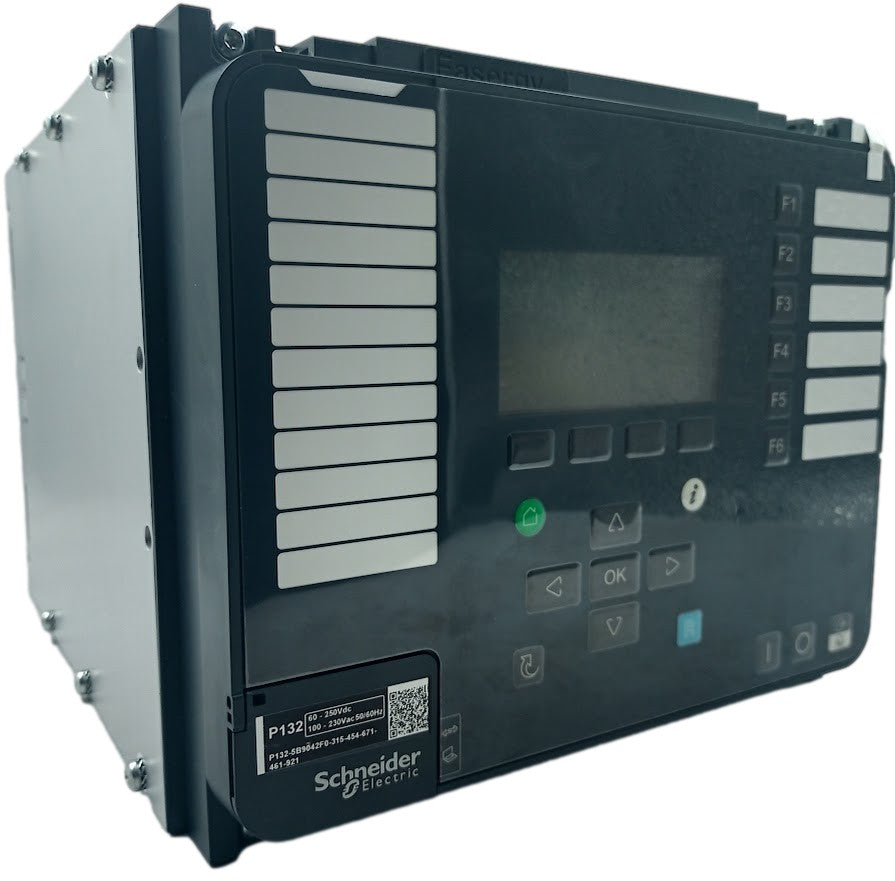

Schneider P132-5B9042F0-315-454-671 Management Relay
Last unit- Code
- WS44
- Category
- Special relays
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- SCHNEIDER
- SKU / Internal code
- WS44
- Product type
- Special relays
- Condition
- Condition shown in specs
- Stock
- Last unit
- Brand
- Schneider
- Model
- P132-5B9042F0-315-454-671-461-921
- - Fault detection
- The management relay constantly monitors the electrical system for abnormal conditions. It can detect overloads, short circuits, insulation faults, current or voltage imbalance, among other types of faults.
- - Protection
- When a fault condition is detected, the management relay activates protection devices, such as circuit breakers or disconnect switches, to interrupt the power supply and prevent damage to the system or connected equipment.
- - Alarms and signaling
- In addition to activating protection devices, the management relay can emit audible alarms, send visual notifications, or activate signaling systems to alert operators about a fault in the electrical system.
- - Measurement and monitoring
- The management relay can also perform measurements of electrical quantities, such as current, voltage, power, frequency, power factor, among others. These measurements are used to monitor the performance of the electrical system and detect abnormal conditions or inefficiencies.
- Measurement inputs
- CT current input...X/5 A and X/1 A 4
- VT voltage input 5
- Date
- 05/17/2023
- Weight
- 6.0 kg
- Measurements
- 32x32x32
- Locator
- B2P2A
About this item
Schneider P132-5B9042F0-315-454-671-461-921 Management Relay
New product out of manufacturer's box
Brand: Schneider
Model: P132-5B9042F0-315-454-671-461-921
A management relay, also known as a protection relay or monitoring relay, is a device used in electrical systems to monitor and control different parameters, ensuring the safety and proper functioning of the system. The management relay is responsible for detecting abnormal conditions, such as overload, short circuit, phase imbalance, ground fault, among others, and taking appropriate actions to protect the electrical system.
General functions and characteristics of a management relay:
- Fault detection: The management relay constantly monitors the electrical system for abnormal conditions. It can detect overloads, short circuits, insulation faults, current or voltage imbalance, among other types of faults.
- Protection: When a fault condition is detected, the management relay activates protection devices, such as circuit breakers or disconnect switches, to interrupt the power supply and prevent damage to the system or connected equipment.
- Alarms and signaling: In addition to activating protection devices, the management relay can emit audible alarms, send visual notifications, or activate signaling systems to alert operators about a fault in the electrical system.
- Measurement and monitoring: The management relay can also perform measurements of electrical quantities, such as current, voltage, power, frequency, power factor, among others. These measurements are used to monitor the performance of the electrical system and detect abnormal conditions or inefficiencies.
Management relays play a fundamental role in the protection and efficient management of electrical systems, ensuring operational reliability and the safety of equipment and personnel involved. It is worth noting that the exact specifications and functions of a management relay may vary depending on the application and manufacturer, and it is important to consult the information provided by the specific manufacturer for precise technical details about a particular model.
Product range MiCOM Px30 Series
Product or component type Protection relay
Relay application feeder
Product reference P132
Mounting enclosure size 40TE
Power supply 24...60 V DC
Measurement inputs: CT current input...X/5 A and X/1 A 4
: VT voltage input 5
max. number of digital inputs
Discrete input voltage 24...250 V DC 18 V standard variant
24...250 V DC 73 V additional option
24...250 V DC 90 V additional option
24...250 V DC 146 V additional option
24...250 V DC 155 V additional option
max. number of digital outputs
38 relay output
max. number of analog inputs 9 Pt 100
max. number of analog
Communication ports RJ45 optional
Front port USB 2.0
Communication protocols option IEC 61850
IEC 60870-5-104 option
IEC 60870-5-103 option
IEC 60870-5-101 option
Redundancy communication
Cybersecurity role-based access control
Password protection
firmware signature
RADIUS-based user authentication
Secure communication with associated tools.
Date: 05/17/2023
Measurements: 32x32x32
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the transaction is subject to this tax, the responsibility for payment lies solely with the buyer.
Cabo Eletro Comercial ltda thanks you
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Schneider P132-5B9042F0-315-454-671-461-921 Management Relay
New product out of manufacturer's box
Brand: Schneider
Model: P132-5B9042F0-315-454-671-461-921
A management relay, also known as a protection relay or monitoring relay, is a device used in electrical systems to monitor and control different parameters, ensuring the safety and proper functioning of the system. The management relay is responsible for detecting abnormal conditions, such as overload, short circuit, phase imbalance, ground fault, among others, and taking appropriate actions to protect the electrical system.
General functions and characteristics of a management relay:
- Fault detection: The management relay constantly monitors the electrical system for abnormal conditions. It can detect overloads, short circuits, insulation faults, current or voltage imbalance, among other types of faults.
- Protection: When a fault condition is detected, the management relay activates protection devices, such as circuit breakers or disconnect switches, to interrupt the power supply and prevent damage to the system or connected equipment.
- Alarms and signaling: In addition to activating protection devices, the management relay can emit audible alarms, send visual notifications, or activate signaling systems to alert operators about a fault in the electrical system.
- Measurement and monitoring: The management relay can also perform measurements of electrical quantities, such as current, voltage, power, frequency, power factor, among others. These measurements are used to monitor the performance of the electrical system and detect abnormal conditions or inefficiencies.
- Communication and remote control: Many management relays have integrated communication features, allowing the exchange of information with supervisory and control systems. This enables remote monitoring and control of the electrical system, as well as data collection for analysis and diagnostics.
Management relays play a fundamental role in the protection and efficient management of electrical systems, ensuring operational reliability and the safety of equipment and personnel involved. It is worth noting that the exact specifications and functions of a management relay may vary depending on the application and manufacturer, and it is important to consult the information provided by the specific manufacturer for precise technical details about a particular model.
Main
Product range MiCOM Px30 Series
Product or component type Protection relay
Relay application feeder
Motor
Product reference P132
Mounting enclosure size 40TE
Power supply 24...60 V DC
60...250 V DC
110...230 V AC
Measurement inputs: CT current input...X/5 A and X/1 A 4
: VT voltage input 5
max. number of digital inputs
(DI)
70
Discrete input voltage 24...250 V DC 18 V standard variant
24...250 V DC 73 V additional option
24...250 V DC 90 V additional option
24...250 V DC 146 V additional option
24...250 V DC 155 V additional option
max. number of digital outputs
(DO)
38 relay output
max. number of analog inputs 9 Pt 100
1 analog input
max. number of analog
outputs
2
Communication ports RJ45 optional
CL optional
RS485 optional
ST optional
Front port USB 2.0
Communication protocols option IEC 61850
IEC 60870-5-104 option
IEC 60870-5-103 option
Modbus option
DNP3 option
IEC 60870-5-101 option
Redundancy communication
port protocol
RSTP
PRP
Dual IP
HSR
Cybersecurity role-based access control
Password protection
Port hardening
firmware signature
RADIUS-based user authentication
Secure communication with associated tools.
Date: 05/17/2023
Weight: 6,000
Measurements: 32x32x32
Locator: B2P2A
