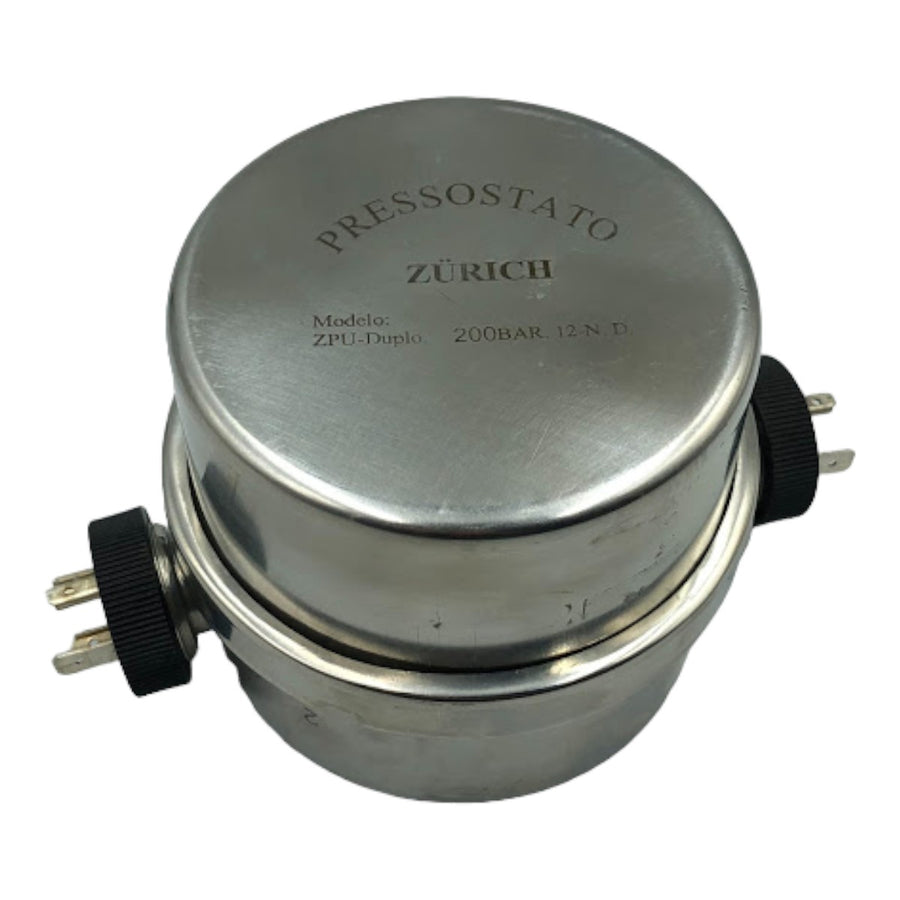

Pressure Switch Zurich ZPU-DOUBLE 200Bar 12-N.D 1/2NPT

Zurich ZPU-DUPLO 200Bar 12-N.D 1/2NPT Pressure Switch

NEW product out of manufacturer's box

Brand: Zurich

Model: ZPU-DUPLO

A pressure switch is a control device used to monitor the pressure of fluids (liquids or gases) in a system and activate or deactivate equipment based on changes in that pressure. It functions as a switch that is activated or deactivated when the pressure reaches a predetermined value. Pressure switches are widely used in industrial automation systems, pumps, compressors, boilers, and other equipment that rely on precise pressure control.

The pressure switch is a vital component for control and safety in many systems, ensuring that processes operate within desired pressure parameters and preventing failures or damage caused by inadequate pressures.

The ZPU.DUPLO model has 2 SPDT (Single Point Double Throw) contacts - one pole, double NO/NC actuation - applied in processes where there is a need for control of 2 independent points and/or redundancy

at the actuation point. Using "Bourdon" technology, which consists of a curved tube in a "C" or helical shape,

the model is characterized by high reliability, durability, and high performance in processes - hydraulic,

pneumatic, corrosive fluids, gases, and liquids, built entirely of stainless steel, sensor, casing, and

parts in contact with fluid, the ZPU.DUPLO model guarantees exceptional performance in chemically

aggressive and hostile environments.

APPLICATIONS

Hydraulic Processes

Pneumatic Line

Steam

Gases in general

Corrosive Gases

Liquids, corrosive fluids

Compressed Air

Machines / Presses

Water treatment processes

Pump Control

Level Control

Control Panels

Sanitary Applications

Pharmaceutical Processes

Chemical Processes

Products with high solid concentration

Crystallizable Products

Petrochemical Processes

Features:

Casing: Fully AISI 304 stainless steel

Protection: IP-66 (powerful water jets)

Diaphragm: AISI 316-L stainless steel

Sensor: Bourdon technology

Ranges: from vacuum to 1000 bar

Contact: SPDT

Differential: adjustable to 35% of the range

Electrical connection: DIN 43650 connector

(optional ½” NPT-F)

Analog scale (pointer) for indication of the

Actuation Point

Date: 04/09/2024

Weight: 0.094KG

Measurements: 10x15x24

Locator: A19P3B

Dear customers, if the material is for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, payment is the sole responsibility of the buyer.

Cabo Eletro Comercial LTDA thanks you.

------------------------------ ATTENTION ------------------------------------

New material, never used but incomplete.

Consult photos to verify the condition of the items that will be delivered after purchase.

------------------------------------------------------------------------------------------------
