Datacom DM705-SUB Multiservice Mux 93 to 250VAC 36 to 72VDC
Last unit- Code
- WS4636
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Datacom
- SKU / Internal code
- WS4636
- Condition
- Condition shown in specs
- Stock
- Last unit
- Brand
- Datacom
- Model
- DM705-SUB
- Date
- 05/09/2024
- Weight
- 7.3 kg
- Measurements
- 17x22x50
- Locator
- A14P2D
About this item
New product in manufacturer's box
Model: DM705-SUB
DM705 Series - E1-STM-1 Multiservice Multiplexer

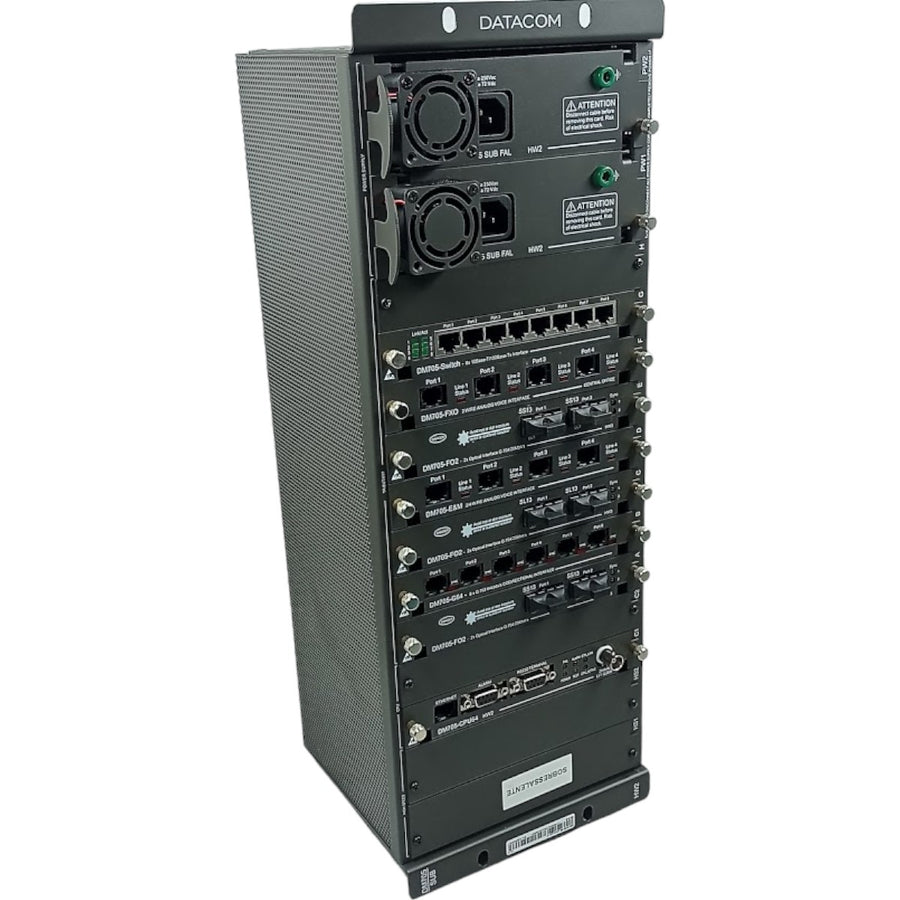

The DM705-SUB is an E1/STM-1 multiplexer for 19-inch racks with 4U
(height units), with flexible mechanics allowing six rack depth adjustments
and reversal of the ears for direct wall mounting.
The DM705-HW2 Midplane is a fully modular E1 multiplexer for 19-inch racks
with 2U (height units).
Fully modular, the DM705-SUB has capacity for up to eight tributaries, two
HS cards, two power supplies, and two CPU cards, while the DM705-HW2 chassis has
capacity for one DM705-CPU34, two power supplies, and housing for 8
expansion cards.
Allows the use of 1 or 2 cards in redundant operation1
any interfaces.
The DM705-SUB has 10 slots for cards, two of which are for rates up to 155
Mbit/s (HS slots) and eight compatible with DM705 tributaries;
DM705-HW2 Midplane has 8 slots for cards;
All slots have front outputs
Possible synchronization sources:
Internal clock generated by the Mux;
External 2048 kHz clock with input via BNC connector on the CPU card;
Regenerated clock from STM-1 interfaces
, E1, G.SHDSL and V.35;
Date: 05/09/2024
Measurements: 17x22x50
Locator: A14P2D
Dear customers, if the material is for resale, the ST (Tax Substitution) value may apply.
If the operation is subject to this tax, the payment responsibility is exclusively the buyer's.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Datacom DM705-SUB Multiservice Mux 93 To 250VAC 36 To 72VDC
New product in manufacturer's box
Brand: Datacom
Model: DM705-SUB
DM705 Series - E1-STM-1 Multiservice Multiplexer
The DM705-SUB is an E1/STM-1 multiplexer for 19-inch racks with 4U
(height units), with flexible mechanics allowing six rack depth adjustments
and reversal of the ears for direct wall mounting.
The DM705-HW2 Midplane is a fully modular E1 multiplexer for 19-inch racks
with 2U (height units).
Features
Fully modular, the DM705-SUB has capacity for up to eight tributaries, two
HS cards, two power supplies, and two CPU cards, while the DM705-HW2 chassis has
capacity for one DM705-CPU34, two power supplies, and housing for 8
expansion cards.
CPU:
Allows the use of 1 or 2 cards in redundant operation1
Performs cross-connect at 64 kbit/s timeslot level for data received from
any interfaces.
Slots:
The DM705-SUB has 10 slots for cards, two of which are for rates up to 155
Mbit/s (HS slots) and eight compatible with DM705 tributaries;
DM705-HW2 Midplane has 8 slots for cards;
All slots have front outputs
Possible synchronization sources:
Internal clock generated by the Mux;
External 2048 kHz clock with input via BNC connector on the CPU card;
Regenerated clock from STM-1 interfaces
2
, E32
, E1, G.SHDSL and V.35;
Date: 05/09/2024
Weight: 7.300
Measurements: 17x22x50
Locator: A14P2D
