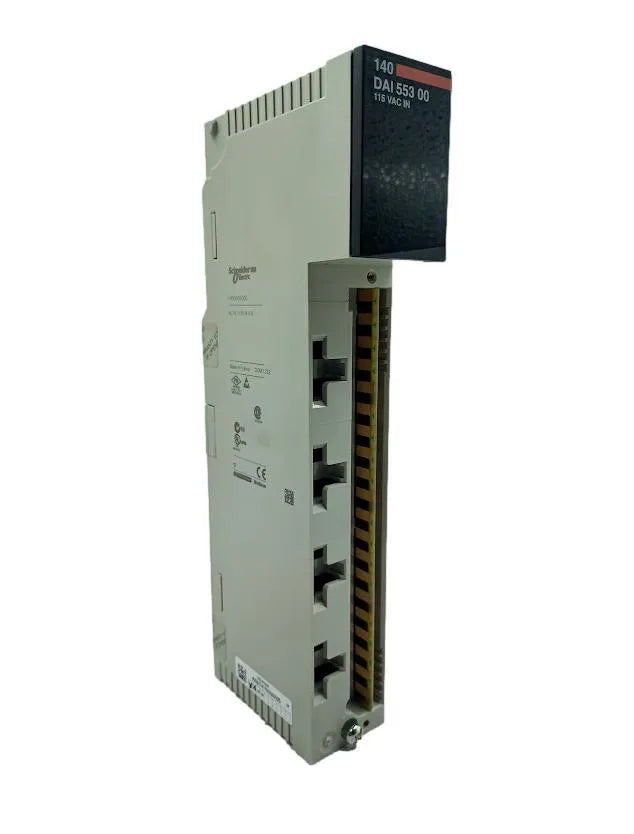

Schneider Quantum Module 140DAI55300 32 Inputs 115VAC
Restam 2- Código
- WS1188
- GTIN
- 3595861126930
- Categoria
- Module
- Despacho
- Em até 1 dia útil para itens em estoque.
- Top seller no Mercado Livre & eBay
- NF-e e faturamento por CNPJ
- Despacho em até 1 dia útil
- Pagamento seguro (Pix, boleto, cartão)
Escolha o tipo de cadastro — abrimos o formulário com os dados deste produto já preenchidos.
Dados principais do item
- Marca
- Schneider
- SKU / Código interno
- WS1188
- GTIN
- 3595861126930
- Tipo de produto
- Module
- Condição
- Condição na ficha
- Estoque
- Restam 2
- Brand
- Schneider
- Model
- 140DAI55300
- Date
- 12/07/2023
- Weight
- 0.460
- Measurements
- 31x17x5
- Locator
- B9P4A
Sobre o produto
New product in manufacturer's box
Brand: Schneider
Model: 140DAI55300
QUANTUM MODULE 32 DIGITAL INPUTS 115VAC
Modicon Quantum automation platform
Product or component type
VAC voltage digital input modules
Digital input number
Addressing requirement
Digital input voltage
11.1 mA at 57...63 Hz
13.2 mA at 47...53 Hz
Guaranteed voltage state 1
79...132 V AC at 57...63 Hz
85...132 V AC at 47...53 Hz
Guaranteed voltage state 0
0...20 V AC at 57...63 Hz
0...20 V AC at 47...53 Hz
Input impedance
12000 Ohm capacitive at 57...63 Hz
14400 Ohm capacitive at 47...53 Hz
Mains frequency limits
Maximum leakage current
Absolute maximum input
132 V continuous
4.9...0.75 ms x line cycle Off-On
7.3...12.3 ms On-Off
Isolation between group
1780 Vrms for 1 minute
Isolation between group and busbar
1780 Vrms for 1 minute
Busbar current requirement
Maximum power dissipation in W
Local signaling
1 LED (Green) for bus communication present (Active)
1 LED (Red) for external fault detected (F)
32 LEDs (Green) for input status
CSA C22.2 no 142
Product certifications
FM Class 1 Division 2
electrostatic discharge resistance
4 kV contact according to IEC 801-2
8 kV in air according to IEC 801-2
resistance to electromagnetic fields
10 V/m 80…2000 MHz according to IEC 801-3
Ambient operating temperature
Ambient storage temperature
relative humidity
95 % Non-condensing
Operating altitude
Date:12/07/2023
Measurements: 31x17x5
Dear customers, if the material is for resale, ST (Tax Substitution) may apply. If the transaction is subject to this tax, the buyer is solely responsible for its payment.
Cabo Eletro Comercial ltda thanks you.
5 motivos para comprar na Cabo Eletro
- 01 Reputação comprovada Top seller no Mercado Livre & eBay, com histórico público de vendas.
- 02 Procedência e NF-e Faturamento por CNPJ e nota fiscal eletrônica em toda compra.
- 03 Estoque difícil de achar 12.000+ SKUs, inclusive itens fora de linha e de reposição.
- 04 Despacho rápido Itens em estoque saem em até 1 dia útil após a confirmação.
- 05 Apoio técnico Validamos código e aplicação com você antes da compra.
Vai levar vários itens? Peça um orçamento por e-mail
Envie este e outros códigos/SKUs e receba um orçamento consolidado, com nota fiscal e condições para volume. Atendemos pessoa física, jurídica e compradores internacionais.
Schneider Quantum Module 140DAI55300 32 Inputs 115VAC
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Schneider Quantum Module 140DAI55300 32 Inputs 115vac
New product in manufacturer's box
Brand: Schneider
Model: 140DAI55300
QUANTUM MODULE 32 DIGITAL INPUTS 115VAC
Main
Product line
Modicon Quantum automation platform
Product or component type
VAC voltage digital input modules
Software name
Unity Pro
ProWORX 32
Concept
Digital input number
32
Complementary
Channel group
4
Addressing requirement
2 input words
Digital input voltage
115 V AC
Input current
11.1 mA at 57...63 Hz
13.2 mA at 47...53 Hz
Guaranteed voltage state 1
79...132 V AC at 57...63 Hz
85...132 V AC at 47...53 Hz
Guaranteed voltage state 0
0...20 V AC at 57...63 Hz
0...20 V AC at 47...53 Hz
Input impedance
12000 Ohm capacitive at 57...63 Hz
14400 Ohm capacitive at 47...53 Hz
Mains frequency limits
47…63 Hz
Maximum leakage current
2.1 mA
Absolute maximum input
132 V continuous
156 V 10 s
200 V 1 cycle
Response time
4.9...0.75 ms x line cycle Off-On
7.3...12.3 ms On-Off
Isolation between group
1780 Vrms for 1 minute
Isolation between group and busbar
1780 Vrms for 1 minute
Busbar current requirement
250 mA
Maximum power dissipation in W
10.9 W
Local signaling
1 LED (Green) for bus communication present (Active)
1 LED (Red) for external fault detected (F)
32 LEDs (Green) for input status
recording
CE
module format
Standard
product weight
0.33 kg
Environment
Standards
CSA C22.2 no 142
UL 508
Product certifications
CUL
FM Class 1 Division 2
electrostatic discharge resistance
4 kV contact according to IEC 801-2
8 kV in air according to IEC 801-2
resistance to electromagnetic fields
10 V/m 80…2000 MHz according to IEC 801-3
Ambient operating temperature
0…60 °C
Ambient storage temperature
-40…85 °C
relative humidity
95 % Non-condensing
Operating altitude
<= 5000 m
Date:12/07/2023
Weight: 0.460
Measurements: 31x17x5
Locator: B9P4A
