Smar IS400P Analog Isolator Module
8 in stock- Code
- WS2632
- Category
- Module
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Smar
- SKU / Internal code
- WS2632
- Product type
- Module
- Condition
- Condition shown in specs
- Stock
- 8 in stock
- Weight
- 0,3 kg
- Dimensions
- 15x15x4
About this item
Smar IS400P Analog Isolation Module
USED product out of manufacturer's box

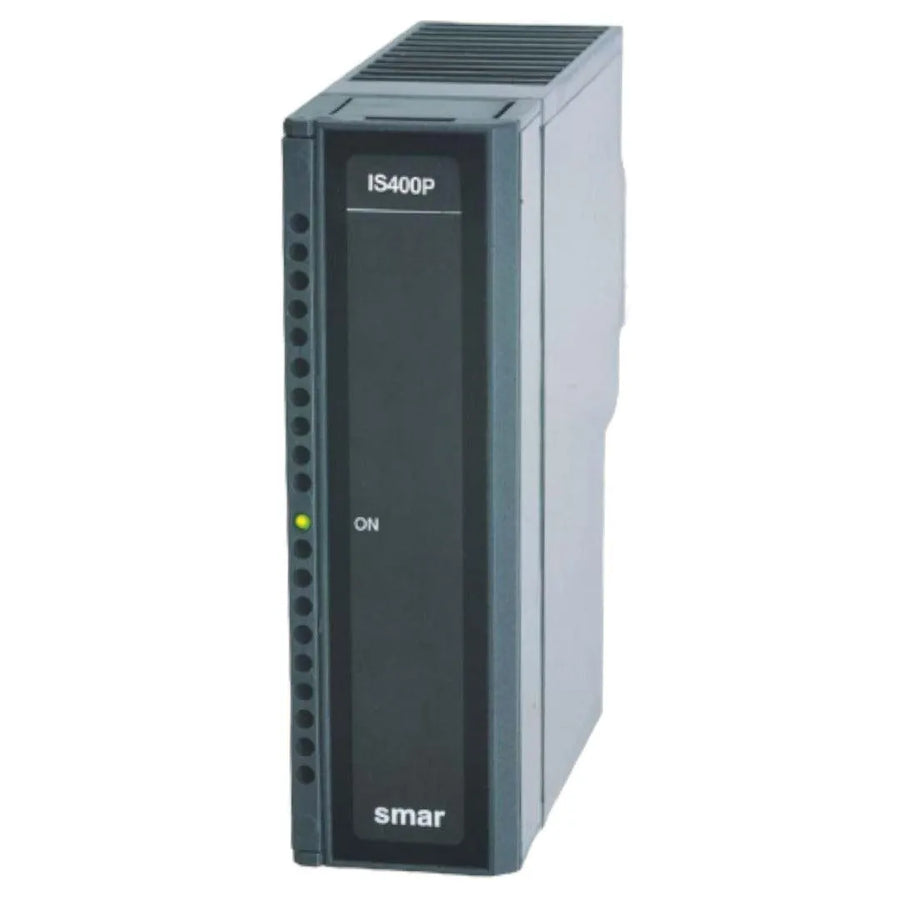

(COVER PHOTO FOR ILLUSTRATIVE PURPOSES ONLY)
The Signal Distributor and Isolator, model IS400P, can be used in two ways:
To power two-wire transmitters, providing isolation between inputs and outputs.
To isolate 4-20 mA or 1-5 Vdc signals between inputs and outputs.
The IS400P Signal Distributor Isolator module is an auxiliary instrument designed to
galvanically isolate a transmitted signal (current or voltage) from a receiving instrument,
typically a recorder or controller. In addition, the module's power supply is also isolated
from both the input and output.
The Signal Distributor Isolator Module - IS400P - solves the problem of signal distortion
in signal transfer due to different ground potentials.
It can also be used to power two-wire transmitters.
Input 4 to 20 mA with integrated power supply for two-wire transmitter.
Output (A/B) 4-20 mA / 4-20 mA
1-5 Vdc / 4-20 mA
1-5 Vdc / 1-5 Vdc
Accuracy 0.15% of span
Power Supply 24 Vdc +- 10%
Maximum Consumption 120 mA max
Temperature Limits Ambient: 0 to 60 °C (32 to 140 °F)
Date: 04/12/2023
Measurements: 15x15x4
Dear customers, if the material is for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the payment responsibility is exclusively the buyer's.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Smar IS400P Analog Isolation Module
USED product out of manufacturer's box
Brand: Smar
Model: IS400P
(COVER PHOTO FOR ILLUSTRATIVE PURPOSES ONLY)
The Signal Distributor and Isolator, model IS400P, can be used in two ways:
To power two-wire transmitters, providing isolation between inputs and outputs.
To isolate 4-20 mA or 1-5 Vdc signals between inputs and outputs.
The IS400P Signal Distributor Isolator module is an auxiliary instrument designed to
galvanically isolate a transmitted signal (current or voltage) from a receiving instrument,
typically a recorder or controller. In addition, the module's power supply is also isolated
from both the input and output.
The Signal Distributor Isolator Module - IS400P - solves the problem of signal distortion
in signal transfer due to different ground potentials.
It can also be used to power two-wire transmitters.
Some Features:
Input 4 to 20 mA with integrated power supply for two-wire transmitter.
4-20 mA
1-5 Vdc
Output (A/B) 4-20 mA / 4-20 mA
1-5 Vdc / 4-20 mA
1-5 Vdc / 1-5 Vdc
Accuracy 0.15% of span
Power Supply 24 Vdc +- 10%
Maximum Consumption 120 mA max
Temperature Limits Ambient: 0 to 60 °C (32 to 140 °F)
Date: 04/12/2023
Weight: 0.300
Measurements: 15x15x4
Locator: B8P2D
