Yokogawa ADV551 Digital Module -P60 24VDC 50MA
Última unidade- Código
- WS2483
- Categoria
- Module
- Despacho
- Em até 1 dia útil para itens em estoque.
- Top seller no Mercado Livre & eBay
- NF-e e faturamento por CNPJ
- Despacho em até 1 dia útil
- Pagamento seguro (Pix, boleto, cartão)
Escolha o tipo de cadastro — abrimos o formulário com os dados deste produto já preenchidos.
Dados principais do item
- Marca
- Yokogawa
- SKU / Código interno
- WS2483
- Tipo de produto
- Module
- Condição
- Condição na ficha
- Estoque
- Última unidade
- Brand
- Yokogawa
- Model
- ADV551 -P60 24VDC 50MA
- Number of output channels
- 6
- Rated applied voltage
- 24V DC
- Rated output current
- 50mA
- Maximum load current
- 100mA/channel, 26.4V
- Withstand voltage
- Between output signal and system: 2kV AC, for 1 minute Between commons: 500 V AC, for 1 minute, common side minus (–) every 16 channels
- Operating temperature
- -25°C to +70°C
- Operating humidity
- 95%RH (non-condensing)
- Protection degree
- IP20
- Date
- 11/17/2023
- Weight
- 0.270
- Measurements
- 3x12x13
- Locator
- B9P2C
Sobre o produto

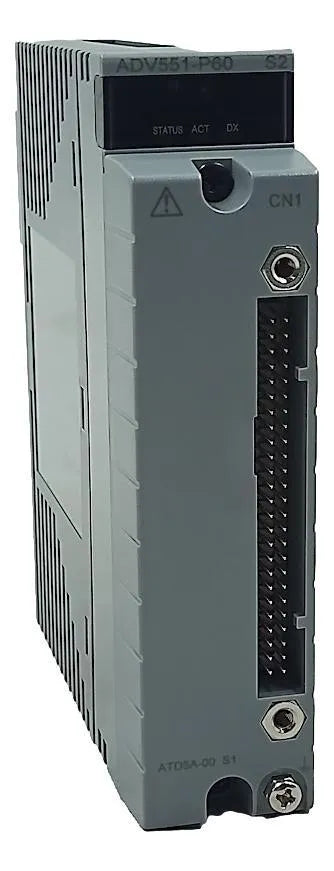

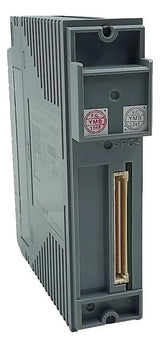

Yokogawa Digital Module ADV551 -P60 24VDC 50MA
New product out of manufacturer's box
Model:ADV551 -P60 24VDC 50MA
The Yokogawa ADV551-P60 24VDC 50MA digital module is a device that provides six 24V DC digital outputs with a current of 50mA. It is designed for use in industrial and commercial applications such as process control, machine and equipment automation, and measurement and monitoring.
The module consists of a plastic body, an electronic circuit, and six output connectors.
The module's body is made of resistant plastic and is designed to withstand a rated current of 2A. It has an operating voltage range of 24V DC to 26.4V DC.
The electronic circuit is responsible for generating the digital outputs. It is designed to provide accurate and reliable outputs.
The output connectors are made of tinned copper and are designed to connect the module to the external circuit. They have a modular design that allows multiple modules to be connected in series.
Technical specifications:
Number of output channels: 6
Rated applied voltage: 24V DC
Rated output current: 50mA
Maximum load current: 100mA/channel, 26.4V
Withstand voltage: Between output signal and system: 2kV AC, for 1 minute Between commons: 500 V AC, for 1 minute, common side minus (–) every 16 channels
Operating temperature: -25°C to +70°C
Operating humidity: 95%RH (non-condensing)
Protection degree: IP20
Process control
Machine and equipment automation
Measurement and monitoring
Date:11/17/2023
Measurements:3x12x13
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment lies exclusively with the buyer.
Cabo Eletro Comercial LTDA thanks you.
5 motivos para comprar na Cabo Eletro
- 01 Reputação comprovada Top seller no Mercado Livre & eBay, com histórico público de vendas.
- 02 Procedência e NF-e Faturamento por CNPJ e nota fiscal eletrônica em toda compra.
- 03 Estoque difícil de achar 12.000+ SKUs, inclusive itens fora de linha e de reposição.
- 04 Despacho rápido Itens em estoque saem em até 1 dia útil após a confirmação.
- 05 Apoio técnico Validamos código e aplicação com você antes da compra.
Vai levar vários itens? Peça um orçamento por e-mail
Envie este e outros códigos/SKUs e receba um orçamento consolidado, com nota fiscal e condições para volume. Atendemos pessoa física, jurídica e compradores internacionais.
Yokogawa ADV551 Digital Module -P60 24VDC 50MA
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Yokogawa Digital Module ADV551 -P60 24VDC 50MA
New product out of manufacturer's box
Brand:Yokogawa
Model:ADV551 -P60 24VDC 50MA
The Yokogawa ADV551-P60 24VDC 50MA digital module is a device that provides six 24V DC digital outputs with a current of 50mA. It is designed for use in industrial and commercial applications such as process control, machine and equipment automation, and measurement and monitoring.
The module consists of a plastic body, an electronic circuit, and six output connectors.
The module's body is made of resistant plastic and is designed to withstand a rated current of 2A. It has an operating voltage range of 24V DC to 26.4V DC.
The electronic circuit is responsible for generating the digital outputs. It is designed to provide accurate and reliable outputs.
The output connectors are made of tinned copper and are designed to connect the module to the external circuit. They have a modular design that allows multiple modules to be connected in series.
Technical specifications:
Number of output channels: 6
Rated applied voltage: 24V DC
Rated output current: 50mA
Maximum load current: 100mA/channel, 26.4V
Withstand voltage: Between output signal and system: 2kV AC, for 1 minute Between commons: 500 V AC, for 1 minute, common side minus (–) every 16 channels
Operating temperature: -25°C to +70°C
Operating humidity: 95%RH (non-condensing)
Protection degree: IP20
Applications:
Process control
Machine and equipment automation
Measurement and monitoring
Date:11/17/2023
Weight:0.270
Measurements:3x12x13
Locator:B9P2C
