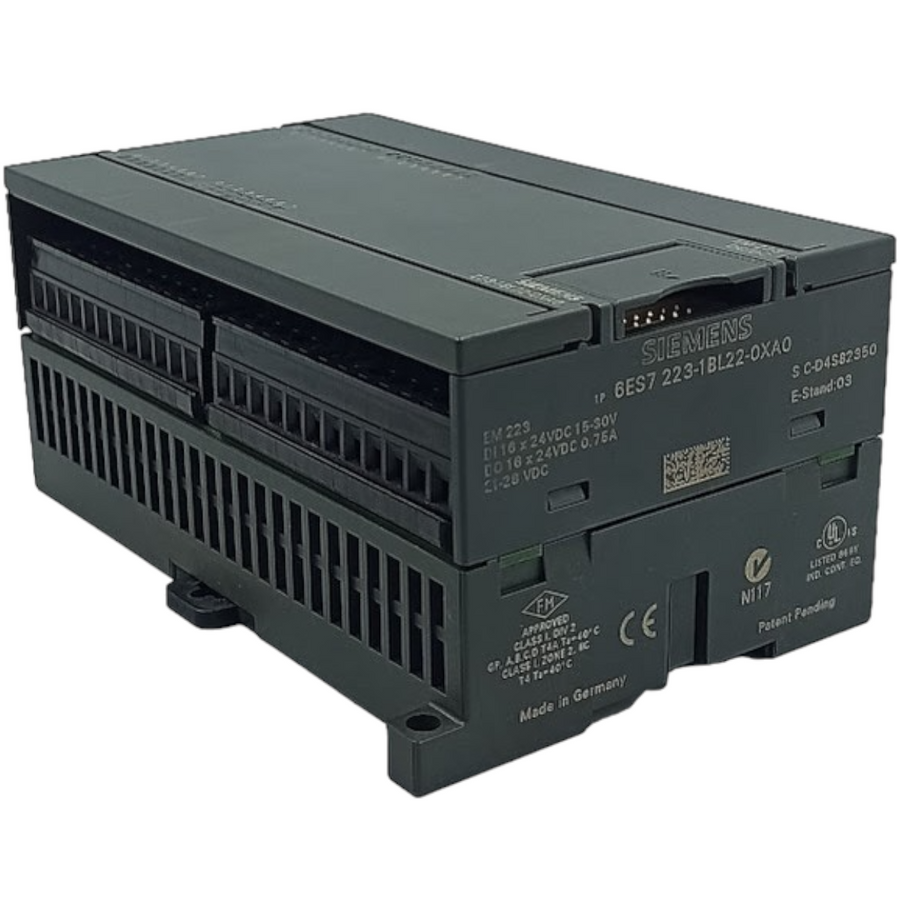

Digital Module EM 223 Siemens 6ES72231BL220XA0
Only 2 left- Code
- WS469
- GTIN
- 4025515162537
- Category
- Module
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Siemens
- SKU / Internal code
- WS469
- GTIN
- 4025515162537
- Product type
- Module
- Condition
- Condition shown in specs
- Stock
- Only 2 left
- Brand
- Siemens
- Model
- 6ES72231BL220XA0
- Date
- 06/05/2023
- Weight
- 0.300
- Measurements
- 15x10x7
- Locator
- B5P3C
About this item
New product out of manufacturer's box
Model: 6ES72231BL220XA0
Load voltage L+
Rated value (DC) 24 V
Permissible range, lower limit (DC) 20.4 V
Permissible range, upper limit (DC) 28.8 V
from backplane bus 5 V DC, max. 160 mA
Power loss, typ. 6W
Number of digital inputs 16
Input voltage type DC
Rated value (DC) 24 V
for signal "0" 0 to 5 V
for signal "1" 15 V DC to 30 V DC
for signal "1", typ. 4mA
Input delay (for rated input voltage value)
for standard inputs
— at "0" to "1", max. 4.5ms
Digital outputs
Number of digital outputs 16
Short-circuit protection No
Limitation of inductive switch-off voltage to L+ (-48 V)
for signal "0", max. 0.1 V
for signal "1", min. 20 V
for signal "1" rated value 750 mA
Total current of outputs (per group)
all mounting positions
— Current per conductor/group, max. 3A; 3/3/6
Switching capacity of contacts
— with inductive load, max. 0.75 A; each output
— with lamp load, max. 5W
— with resistive load, max. 0.75 A; each output
Date: 06/05/2023
Measurements: 15x10x7
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment is exclusively the buyer's.
Cabo Eletro Comercial ltda thanks you
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Digital Module EM 223 Siemens 6ES72231BL220XA0
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Digital Module EM 223 Siemens 6ES72231BL220XA0
New product out of manufacturer's box
Brand: Siemens
Model: 6ES72231BL220XA0
Supply voltage
Load voltage L+
Rated value (DC) 24 V
Permissible range, lower limit (DC) 20.4 V
Permissible range, upper limit (DC) 28.8 V
Input current
from backplane bus 5 V DC, max. 160 mA
Power loss
Power loss, typ. 6W
Digital inputs
Number of digital inputs 16
Input voltage
Input voltage type DC
Rated value (DC) 24 V
for signal "0" 0 to 5 V
for signal "1" 15 V DC to 30 V DC
Input current
for signal "1", typ. 4mA
Input delay (for rated input voltage value)
for standard inputs
— at "0" to "1", max. 4.5ms
Digital outputs
Number of digital outputs 16
Short-circuit protection No
Limitation of inductive switch-off voltage to L+ (-48 V)
Output voltage
for signal "0", max. 0.1 V
for signal "1", min. 20 V
Output current
for signal "1" rated value 750 mA
Total current of outputs (per group)
all mounting positions
— Current per conductor/group, max. 3A; 3/3/6
Relay outputs
Switching capacity of contacts
— with inductive load, max. 0.75 A; each output
— with lamp load, max. 5W
— with resistive load, max. 0.75 A; each output
Date: 06/05/2023
Weight: 0.300
Measurements: 15x10x7
Locator: B5P3C
