Phoenix Contact Relay Module EMG 17-REL/SG-B24/21/P
Last unit- Code
- WS6735
- GTIN
- 7892878847411
- Category
- Special relays
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- PHOENIX CONTACT
- SKU / Internal code
- WS6735
- GTIN
- 7892878847411
- Product type
- Special relays
- Condition
- Condition shown in specs
- Stock
- Last unit
- Brand
- PHOENIX CONTACT
- Model
- EMG 17-REL/SG-B24/21/P 2956411
- Insulation properties
- Air and creepage distances between current circuits
- Date
- 10/29/2024
- Weight
- 0.1 kg
- Measurements
- 10x15x24
- Locator
- B9P2B
About this item

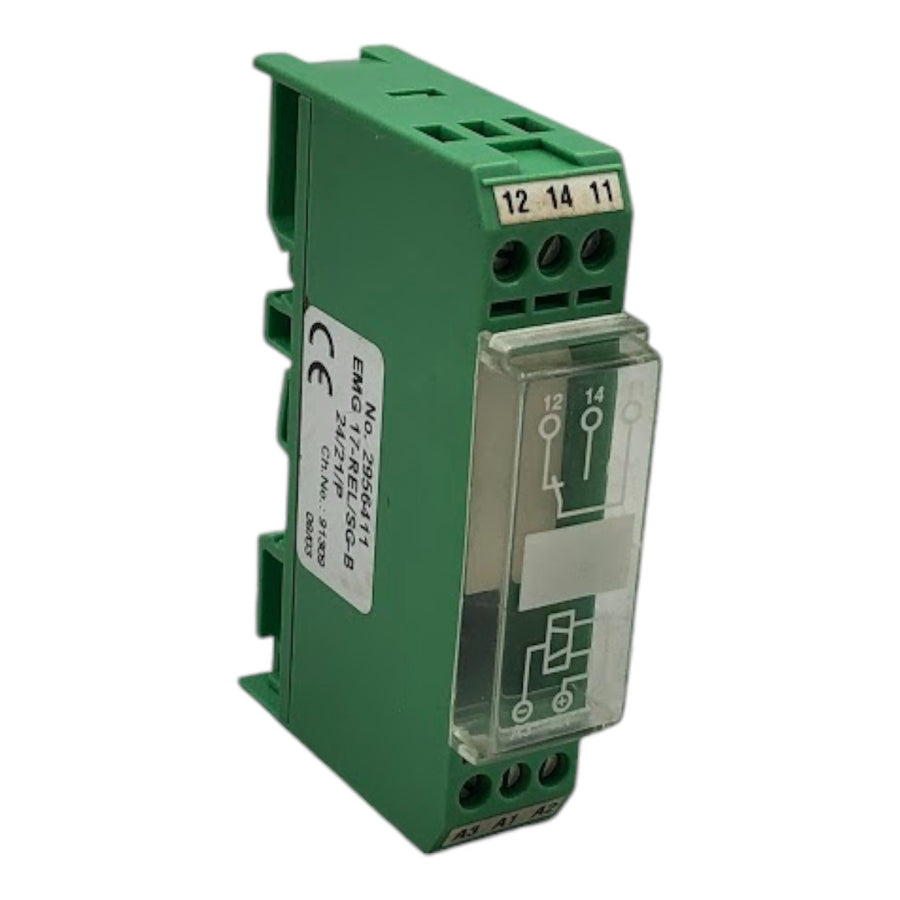

Phoenix Contact EMG 17-REL/SG-B24/21/P 2956411 Relay Module
NEW product out of manufacturer's box
Brand: PHOENIX CONTACT
Model: EMG 17-REL/SG-B24/21/P 2956411
A relay module is a device that uses relays mounted on a circuit board to control high-power electrical loads from low-power signals. It allows microcontrollers, such as Arduino or Raspberry Pi, to safely and efficiently switch devices like motors, lamps, and other appliances on and off.
The relay module uses an electromechanical or solid-state relay which, when activated, closes or opens contacts, allowing or interrupting the current flow in the power circuit. This enables low-voltage devices to control high-power loads without direct contact.
The relay module is an essential component in automation projects, as it allows low-power electronic systems to control high-power devices safely and practically.
Relay module, with permanently soldered latching mini-relay, with positive diode link, contacts (AgSnO): low to high powers, 1 changeover contact, input voltage 24 V DC
Product type Relay module
Product family EMG
Application Universal
Operating mode 100% ED
Mechanical service life approx. 107 switching cycles
Insulation properties: Air and creepage distances between current circuits
Insulation Safe insulation, reinforced insulation
Overvoltage category III
Degree of contamination 2
Maximum dissipation power at nominal condition 0.19 W
Test voltage (Winding/contact) 4 kVeff (50 Hz, 1 min., winding/contact)
Air and creepage distances between current circuits
Rated insulation voltage 250 V AC
Test voltage 4 kV
Rated input voltage UN 24 V DC
Input voltage range 19.2 V DC ... 26.4 V DC (20 °C)
Actuation switching behavior bistable
Actuation (polarity) polarized
Typical input current with UN typ. 8 mA
Date: 10/29/2024
Weight: 0.100Kg
Measurements: 10x15x24
