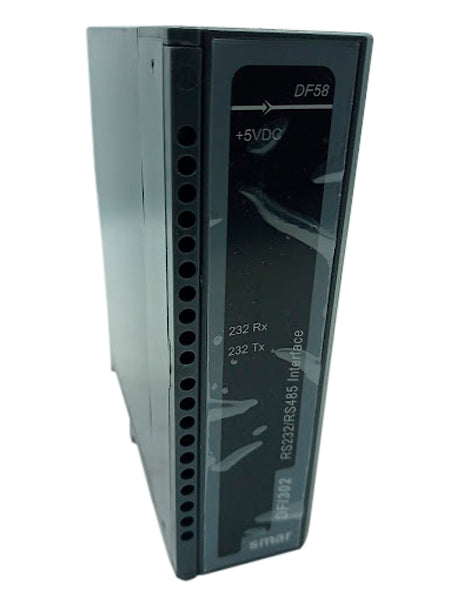

Smar DFI302 DF58 RS232/RS485 Interface Module

Smar DFI302 DF58 RS232/RS485 Interface Module

New product in manufacturer's box
Brand: SMAR
Model: DFI302 DF58





DFI302 is a key element in the distributed architecture of field control systems. It combines powerful communication features with direct I/O access and advanced control for continuous and discrete applications. Thanks to its modular concept, the DFI302 can be installed in panels in control rooms or in sealed enclosures in the field. It is highly expandable and suitable for small applications and/or large and complex plants.



The DFI302 is a modular multifunction equipment, mounted on a backplane, connected to a DIN rail, where all modules are installed, including the Main (DF50) and Fieldbus (DF52) Power Supplies, Controllers (DF63, DF73, DF95 and DF97) and Line Impedance (DF53). The modules are secured using industrial connectors and a robust metal screw. Optionally, a conventional I/O subsystem, with modules for analog and discrete inputs and outputs, can be connected. Modularity is the key to DFI302's flexibility. Furthermore, considering that all equipment is in modules and on the same backplane, the DFI302 can be considered fully integrated.



A - Basic Installation and Configuration

This part contains all basic and general information about the installation of controllers, racks, I/O modules, IP configuration, OPC servers, firmware updates, project types, and general information about adding functional and flexible blocks.

Here you can also find information for troubleshooting, the FSR (Request for Review Form) and the warranty term for purchased products.



The file is composed of the following sections:



Overview

Installing

Configuring

Configuring OPC servers

Configuring strategies

Adding functional blocks

Adding logic using flexible functional blocks

Adding I/O modules

Installing racks and their accessories

Troubleshooting

Appendices (FSR and Warranty Term)

B - Technical Specifications

This part contains all technical specifications of the hardware components of the DFI302 platform. These are:



Controllers – DF63, DF73, DF75, DF89, DF95, DF97 and DF100.

Ethernet, serial and rack interconnection cables.

Power supplies – DF50, DF53/98, DF52/60, DF56.

Interfaces – DF58 and DF61

The file is composed of the following sections:



Technical specifications for controllers

Cable specifications

Adding power supplies

Adding interfaces

C - Modbus

This part contains information for integrating systems that use the Modbus protocol into the DFI302 automation platform.



The file is composed of the following section:



Adding Modbus

D - Configuring Strategies with HSE/FF Controllers

This part contains information for creating control strategies that use DF63 as a controller.



The file is composed of the following section:



Creating a FOUNDATION fieldbus strategy using DF63

E - Configuring Strategies with HSE/PROFIBUS Controllers

This part contains information for creating control strategies that use DF73, DF95 or DF97 as controllers. Whereas:



The DF73 is the HSE/Profibus-DP controller with 2 100 Mbps Ethernet ports and 1 Profibus DP channel.

The DF95 is the HSE/Profibus controller with 2 100 Mbps Ethernet ports, 1 serial port, 2 Profibus PA ports and 1 Profibus DP channel.

The DF97 is the HSE/Profibus controller with 2 100 Mbps Ethernet ports, 1 serial port, 4 Profibus PA ports and 1 Profibus DP channel.

The file is composed of the following section:



Creating a configuration using DF73, DF95 or DF97

F - Configuring Strategies with Modbus Controllers

This part contains information for creating control strategies that use DF89 as a controller.



The DF89 is the HSE/Modbus controller with 2 100 Mbps Ethernet ports and 1 RS-232/RS-485 Modbus RTU port.



It is composed of the following section:



Creating a Modbus configuration using DF89

G - Configuring Strategies with HSE/WirelessHART Controllers

This part contains information for creating control strategies that use DF100 as a controller.



The DF100 is the HSE/WirelessHART™ controller with 2 100 Mbps Ethernet ports, 1 RS-485 port and 1 WirelessHART channel



It is composed of the following section:



Creating a FOUNDATION fieldbus strategy using DF100

H - Redundancy

To meet the requirements of fault tolerance, high availability and industrial process safety, DF63, DF73, DF75, DF89, DF95 and DF97 controllers work with the Hot Standby redundancy strategy.



This section will provide information on how to properly install and configure the redundant system using these controllers.



It is composed of the following sections:



Adding redundancy to DFI302 HSE controllers

Adding redundancy with R-Series redundant input and output modules

I - Conventional and Redundant Input/Output Modules

Many types of input/output modules are available for the DFI302 automation platform, to meet a wide range of applications in the process control and automation industry.



The available types are:



Discrete inputs and outputs

Combined discrete inputs and outputs

Pulse inputs

Analog inputs and outputs

HART Inputs and Outputs

Redundant Inputs and Outputs







Date: 10/01/19
Weight: 0.426KG
Measurements: 5X18X24
Locator: S2CL16P4
