Altus AL-3202 Digital Output Interface Module
Last unit- Code
- 6816
- Category
- Programmable logic controllers
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Altus
- SKU / Internal code
- 6816
- Product type
- Programmable logic controllers
- Condition
- Condition shown in specs
- Stock
- Last unit
- Brand
- Altus
- Model
- AL-3202
- in the control module
- 2.9 W
- in the output module
- 6.4 W
- Weight
- 0.370
- Locator
- GP04CL38P5
About this item
New product out of the manufacturer's box

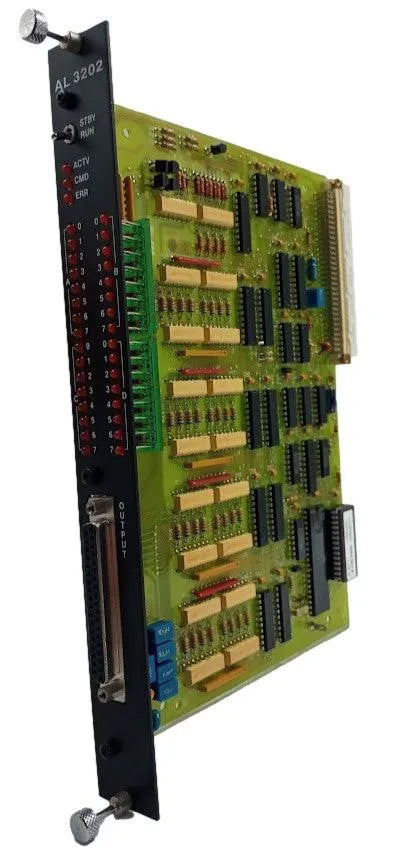

The AL-3202 module is a 32-point, relay-based, microprocessor-controlled digital output interface, whose main feature is to implement "check before operate" functionality, being used with AL-2002, AL-2003 and AL-2004 CPUs.
The "check before operate" (or CBO) is a logic that allows predicting defects in output circuits by monitoring them before actual operation. CBO is required in power generation/distribution equipment to achieve greater reliability.
The CBO AL-3202 digital output interface monitors its outputs to:
.Ensure that the selected output is actually activated before activation (CBO).
.Ensure that outputs are not activated when not selected.
The CBO AL-3202 digital output module supports "hot-swapping" of both the control board and the relays. The outputs are isolated and independent (dry contacts).
The CBO AL-3202 digital output interface is divided into two modules: the control module that fits into the CPU rack and the output module that is attached to the electrical cabinet and connects directly to the field wiring, eliminating the need for additional terminal blocks.
Maximum switching voltage:
- 138 Vdc or 253 Vac
- disables outputs when the CPU enters an error state
- disables octet outputs when the module detects a HW error
- 1000 Operations per hour (under nominal load, each output)
- 100,000 operations (under nominal load, each output)
- 5 Vdc for the control module
- 24 Vdc (+25% - 10%) for the output module
10 mA 24 Vdc (1 output activated)
320 mA 24 Vdc (32 outputs activated)
Dissipation (32 outputs activated):
in the control module: 2.9 W
in the output module: 6.4 W
Dielectric strength:
2,500 Vdc between output points and system ground
Electric shock protection:
according to IEC 536 (1976), class I
Electrostatic discharge (ESD) severity level:
according to IEC 61131, level 3
Oscillatory wave electrical noise immunity:
according to IEC 61131, severity level A,
and IEEE C37.90.1 (SWC)
Transient fast electrical noise immunity:
according to IEC 801-4, level 3
Date 05/26/2022
Measurements 5x17x26
Locator: GP04CL38P5
Cabo Eletro Comercial ltda thanks you
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Altus AL-3202 Digital Output Interface Module
New product out of the manufacturer's box
Brand: Altus
Model: AL-3202
The AL-3202 module is a 32-point, relay-based, microprocessor-controlled digital output interface, whose main feature is to implement "check before operate" functionality, being used with AL-2002, AL-2003 and AL-2004 CPUs.
The "check before operate" (or CBO) is a logic that allows predicting defects in output circuits by monitoring them before actual operation. CBO is required in power generation/distribution equipment to achieve greater reliability.
The CBO AL-3202 digital output interface monitors its outputs to:
.Ensure that the selected output is actually activated before activation (CBO).
.Ensure that outputs are not activated when not selected.
The CBO AL-3202 digital output module supports "hot-swapping" of both the control board and the relays. The outputs are isolated and independent (dry contacts).
The CBO AL-3202 digital output interface is divided into two modules: the control module that fits into the CPU rack and the output module that is attached to the electrical cabinet and connects directly to the field wiring, eliminating the need for additional terminal blocks.
Maximum switching voltage:
- 138 Vdc or 253 Vac
Protection:
- disables outputs when the CPU enters an error state
- disables octet outputs when the module detects a HW error
Frequency:
- 1000 Operations per hour (under nominal load, each output)
Lifespan:
- 100,000 operations (under nominal load, each output)
Power Supply:
- 5 Vdc for the control module
- 24 Vdc (+25% - 10%) for the output module
80 mA 5 Vdc
10 mA 24 Vdc (1 output activated)
320 mA 24 Vdc (32 outputs activated)
Dissipation (32 outputs activated):
in the control module: 2.9 W
in the output module: 6.4 W
Consumption:
Dielectric strength:
2,500 Vdc between output points and system ground
Electric shock protection:
according to IEC 536 (1976), class I
Electrostatic discharge (ESD) severity level:
according to IEC 61131, level 3
Oscillatory wave electrical noise immunity:
according to IEC 61131, severity level A,
and IEEE C37.90.1 (SWC)
Transient fast electrical noise immunity:
according to IEC 801-4, level 3
Date 05/26/2022
Weight: 0.370
Measurements 5x17x26
Locator: GP04CL38P5
Cabo Eletro Comercial ltda thanks you
