National Instruments NI-9225 3-channel 300Vrms Input Module
Restam 2- Código
- WS2984
- Categoria
- Module
- Despacho
- Em até 1 dia útil para itens em estoque.
- Top seller no Mercado Livre & eBay
- NF-e e faturamento por CNPJ
- Despacho em até 1 dia útil
- Pagamento seguro (Pix, boleto, cartão)
Escolha o tipo de cadastro — abrimos o formulário com os dados deste produto já preenchidos.
Dados principais do item
- Marca
- National Instruments
- SKU / Código interno
- WS2984
- Tipo de produto
- Module
- Condição
- Condição na ficha
- Estoque
- Restam 2
- Brand
- National Instruments
- Model
- NI-9225
- Date
- 01/15/2024
- Weight
- 0.170
- Measurements
- 10x15x24
- Locator
- B9P3A
Sobre o produto

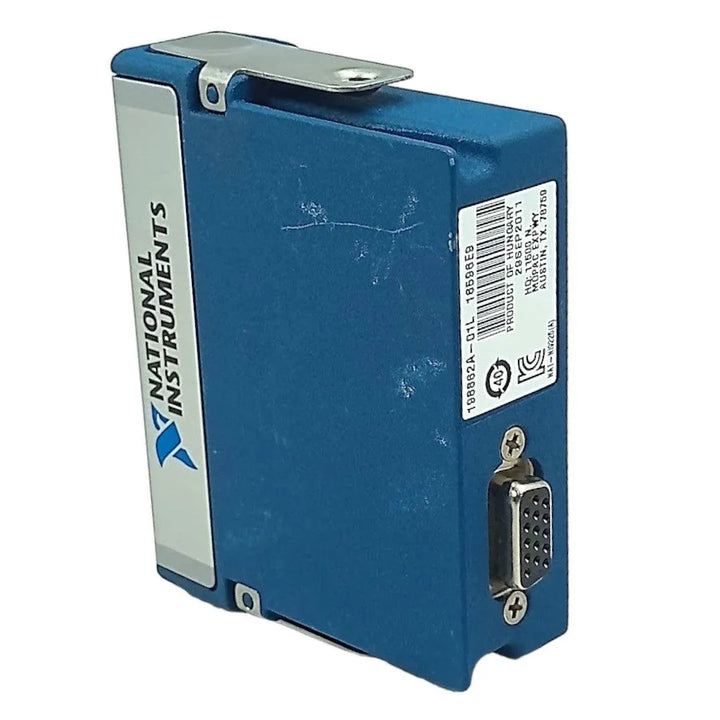

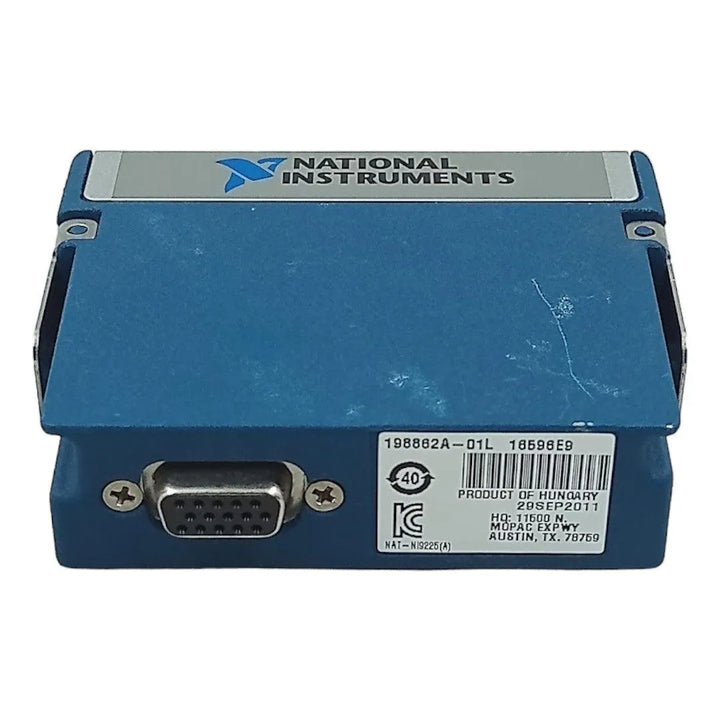

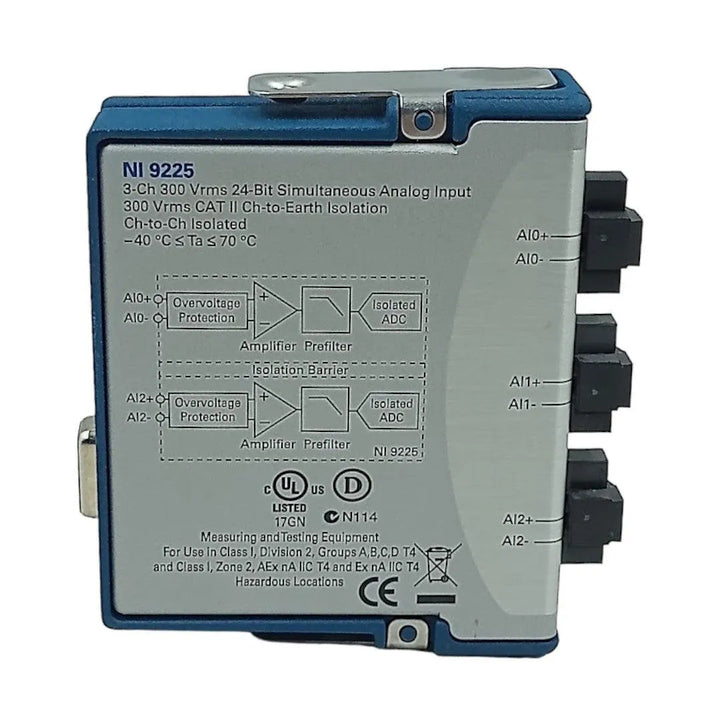

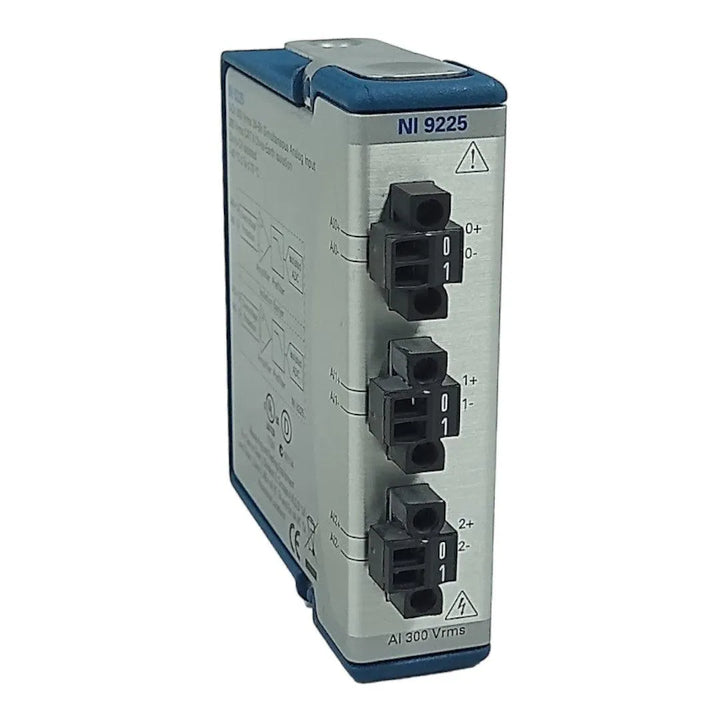

National Instruments NI-9225 3cH 300VRMS Input Module
New product out of manufacturer's box
Brand: National Instruments
(NEW PRODUCT WITH STOCK DAMAGE)
The NI 9225 300 Vrms C Series voltage input module is designed for high-voltage signal waveform estimations. The difference between the two NI 9225 part numbers is that part number 780159-02 has conformal coating, while part number 780159-01 does not. The 300 Vrms area allows for line-to-ground and line-to-line estimations of 110 V control structures and line-to-ground estimations of 240 V control networks. The three channels of the NI 9225 make the module perfectly suited for a three-phase structure. Voltage waveform estimations are fundamental for observing power quality occasions such as sags, swells, transients, and harmonics. If the user chooses to combine the NI 9225 with the NI 9239 (10 V) and a current transducer, the result will be an adjustable power quality verification or a power measurement structure.
NI C Series modules are intended to provide high-accuracy estimations to meet the demands of DAQ and state-of-the-art control applications. Each module contains signal conditioning specific for estimation to connect to a variety of sensors and signals, bank-to-bank and channel-to-channel isolation alternatives, and support for wide temperature extensions to meet a variety of usage and natural needs in a durable module. Users can select from more than 100 C Series modules for estimation, control, and communication to interface applications with any sensor in any transport. The device is equipped with a screw-terminal front connector.
The NI-9225 C Series Voltage Input Module comes with the following features:
- 3 differential analog input channels, synchronous information sources
- Maximum sampling rate of 50 kS/s per channel and minimum sampling rate of 1.613 kS/s
- Minimum and typical operating voltage ranges of 294 Vrms and 300 Vrms respectively
- Channel-to-channel isolation
- Synchronize high-voltage estimations
- Program for USB with easy-to-use NI-DAQmx driver software
- 24-bit analog input resolution
Date: 01/15/2024
Measurements: 10x15x24
Dear customers, if the material is for resale, the ST (Tax Substitution) value may apply.
If the operation is subject to this tax, the payment responsibility is exclusively the buyer's.
Cabo Eletro Comercial LTDA thanks you.
5 motivos para comprar na Cabo Eletro
- 01 Reputação comprovada Top seller no Mercado Livre & eBay, com histórico público de vendas.
- 02 Procedência e NF-e Faturamento por CNPJ e nota fiscal eletrônica em toda compra.
- 03 Estoque difícil de achar 12.000+ SKUs, inclusive itens fora de linha e de reposição.
- 04 Despacho rápido Itens em estoque saem em até 1 dia útil após a confirmação.
- 05 Apoio técnico Validamos código e aplicação com você antes da compra.
Vai levar vários itens? Peça um orçamento por e-mail
Envie este e outros códigos/SKUs e receba um orçamento consolidado, com nota fiscal e condições para volume. Atendemos pessoa física, jurídica e compradores internacionais.
National Instruments NI-9225 3-channel 300Vrms Input Module
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
National Instruments NI-9225 3cH 300VRMS Input Module
New product out of manufacturer's box
Brand: National Instruments
Model: NI-9225
(NEW PRODUCT WITH STOCK DAMAGE)
The NI 9225 300 Vrms C Series voltage input module is designed for high-voltage signal waveform estimations. The difference between the two NI 9225 part numbers is that part number 780159-02 has conformal coating, while part number 780159-01 does not. The 300 Vrms area allows for line-to-ground and line-to-line estimations of 110 V control structures and line-to-ground estimations of 240 V control networks. The three channels of the NI 9225 make the module perfectly suited for a three-phase structure. Voltage waveform estimations are fundamental for observing power quality occasions such as sags, swells, transients, and harmonics. If the user chooses to combine the NI 9225 with the NI 9239 (10 V) and a current transducer, the result will be an adjustable power quality verification or a power measurement structure.
NI C Series modules are intended to provide high-accuracy estimations to meet the demands of DAQ and state-of-the-art control applications. Each module contains signal conditioning specific for estimation to connect to a variety of sensors and signals, bank-to-bank and channel-to-channel isolation alternatives, and support for wide temperature extensions to meet a variety of usage and natural needs in a durable module. Users can select from more than 100 C Series modules for estimation, control, and communication to interface applications with any sensor in any transport. The device is equipped with a screw-terminal front connector.
The NI-9225 C Series Voltage Input Module comes with the following features:
- 3 differential analog input channels, synchronous information sources
- Maximum sampling rate of 50 kS/s per channel and minimum sampling rate of 1.613 kS/s
- Minimum and typical operating voltage ranges of 294 Vrms and 300 Vrms respectively
- Channel-to-channel isolation
- Synchronize high-voltage estimations
- Program for USB with easy-to-use NI-DAQmx driver software
- 24-bit analog input resolution
Date: 01/15/2024
Weight: 0.170
Measurements: 10x15x24
Locator: B9P3A
