Tyco OCM800 Operator Control Module 557.202.013
Restam 2- Código
- 8672
- Categoria
- Module
- Despacho
- Em até 1 dia útil para itens em estoque.
- Top seller no Mercado Livre & eBay
- NF-e e faturamento por CNPJ
- Despacho em até 1 dia útil
- Pagamento seguro (Pix, boleto, cartão)
Escolha o tipo de cadastro — abrimos o formulário com os dados deste produto já preenchidos.
Dados principais do item
- Marca
- Tyco
- SKU / Código interno
- 8672
- Tipo de produto
- Module
- Condição
- Condição na ficha
- Estoque
- Restam 2
- Brand
- Tyco
- Model
- OCM800 557.202.013
- Weight
- 0.570
- Measurements
- 8x12x30
- Locator
- GP04CL86P5
Sobre o produto
New product in manufacturer's box
Model: OCM800 557.202.013

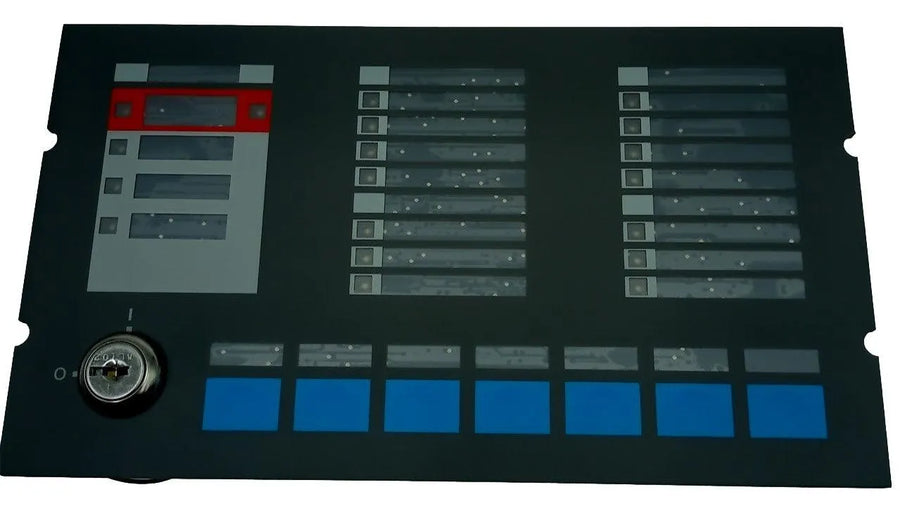

Tyco OCM800 operator control module
The OCM800 is used by all MZX detection panels and full-function repeaters to provide mandatory operator control functions and LED indication in accordance with EN54:pt.2 and UL864.
The OCM800 is fully programmable but operates in default configurations according to the software model used.
Most software models allow multiple LEDs and control buttons to be programmed for site-specific functions. The LEDs and control buttons have slide-in legends to match the configurations and the standard language. Standard panels include the appropriate legends for their relevant markets.
The OCM800 incorporates the functionality of an MPM800, which allows it to drive an operator display module to provide a complete panel user interface. Additionally, the OCM800 can control up to 80 inputs/outputs in conjunction with the modules below.
The following I/O and LED indicator modules can be slaved to an MPM800:
Up to 5 x IOB800 (LPCB/VdS approved 8-in/8-out expansion board)
Up to 5 x XIOM (16-way universal I/O board)
An imitation panel (80-way LED imitation driver PCB)
An 80-way ANN880 LED imitator
A 40-way ANN840 LED imitator using red and yellow LEDs
Two 20-way COM820 LED status/command modules
Up to 8 x OCM800 units can be connected to an MZX panel via the internal or external RBus communication port.
Date 12/12/2022
Measurements: 8x12x30
Locator: GP04CL86P5
Cabo Eletro Comercial ltda thanks you
5 motivos para comprar na Cabo Eletro
- 01 Reputação comprovada Top seller no Mercado Livre & eBay, com histórico público de vendas.
- 02 Procedência e NF-e Faturamento por CNPJ e nota fiscal eletrônica em toda compra.
- 03 Estoque difícil de achar 12.000+ SKUs, inclusive itens fora de linha e de reposição.
- 04 Despacho rápido Itens em estoque saem em até 1 dia útil após a confirmação.
- 05 Apoio técnico Validamos código e aplicação com você antes da compra.
Vai levar vários itens? Peça um orçamento por e-mail
Envie este e outros códigos/SKUs e receba um orçamento consolidado, com nota fiscal e condições para volume. Atendemos pessoa física, jurídica e compradores internacionais.
Tyco OCM800 Operator Control Module 557.202.013
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Tyco OCM800 Operator Control Module 557.202.013
New product in manufacturer's box
Brand: Tyco
Model: OCM800 557.202.013
Tyco OCM800 operator control module
The OCM800 is used by all MZX detection panels and full-function repeaters to provide mandatory operator control functions and LED indication in accordance with EN54:pt.2 and UL864.
The OCM800 is fully programmable but operates in default configurations according to the software model used.
Most software models allow multiple LEDs and control buttons to be programmed for site-specific functions. The LEDs and control buttons have slide-in legends to match the configurations and the standard language. Standard panels include the appropriate legends for their relevant markets.
The OCM800 incorporates the functionality of an MPM800, which allows it to drive an operator display module to provide a complete panel user interface. Additionally, the OCM800 can control up to 80 inputs/outputs in conjunction with the modules below.
The following I/O and LED indicator modules can be slaved to an MPM800:
Up to 5 x IOB800 (LPCB/VdS approved 8-in/8-out expansion board)
Up to 5 x XIOM (16-way universal I/O board)
An imitation panel (80-way LED imitation driver PCB)
An 80-way ANN880 LED imitator
A 40-way ANN840 LED imitator using red and yellow LEDs
Two 20-way COM820 LED status/command modules
Up to 8 x OCM800 units can be connected to an MZX panel via the internal or external RBus communication port.
Date 12/12/2022
Weight: 0.570
Measurements: 8x12x30
Locator: GP04CL86P5
Cabo Eletro Comercial ltda thanks you
