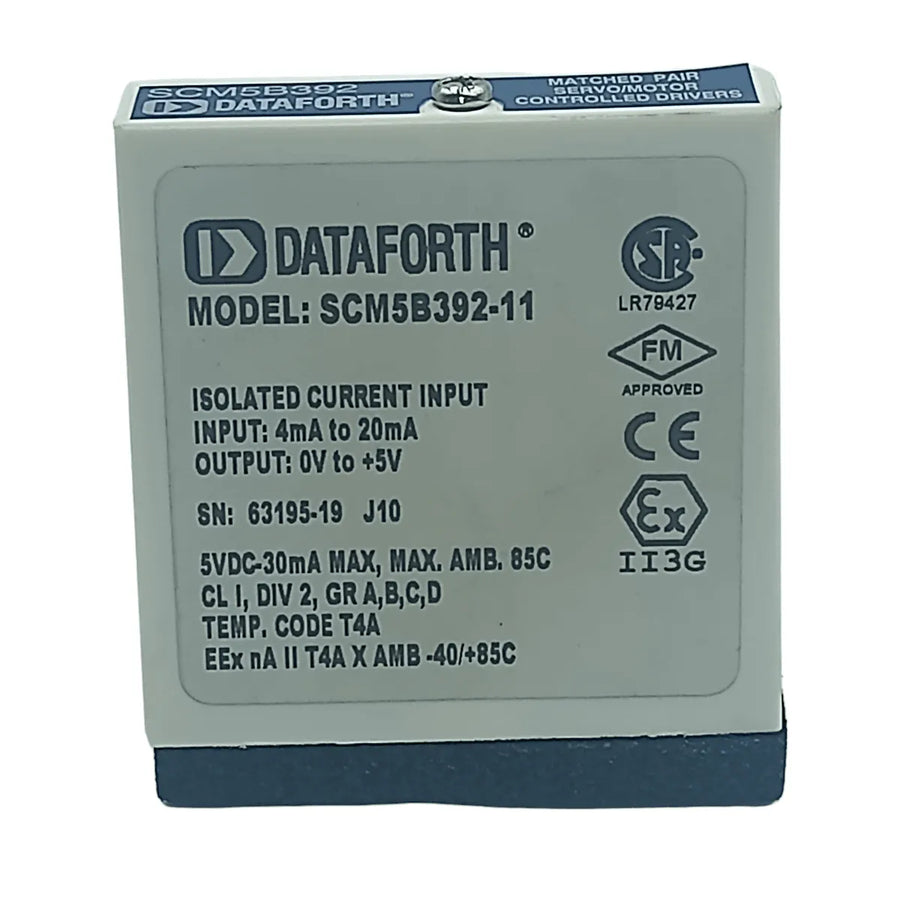

DataForth SCM5B392-11 Motor Control Module
Last unit- Code
- 1369
- Category
- Module
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- DataForth
- SKU / Internal code
- 1369
- Product type
- Module
- Condition
- Condition shown in specs
- Stock
- Last unit
- Weight
- 0,07 g
- Dimensions
- 6X6X2
About this item
Brand: DataForth
Model: SCM5B392-11
Date: 27/05/2021
Measurements: 6X6X2
Locator: GP4CL25P4
Cabo Eletro Comercial ltda thanks you
The SCM5B392 servo/motor controller module set is designed to solve the problem of extending a servo or motor controller signal over a long distance with the possibility of noise pickup and/or contact with hazardous voltages. Each SCM5B392 module set consists of two modules: a voltage input/current output module and a current input/voltage output module.
The voltage input module connects to the servo or motor controller's voltage output and provides an isolated 4 to 20 mA output that connects to the current input module's input. The current input module isolates and provides an output voltage identical to that of the servo or motor controller. Thus, the original control signal has been isolated (twice) and extended via a 4 to 20 mA current loop.
Several mounting options are available for the SCM5B392 module set. If a large number of channels are required, the 16-channel SCMPB01 backpanel and the 8-channel SCMPB05 backpanel are available. Smaller channel counts can be accommodated with the single-channel SCMPB03 mounting panel and the dual-channel SCMPB04 mounting panel. These can be DIN rail mounted
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
DataForth SCM5B392-11 Motor Control Module
New product
Brand: DataForth
Model: SCM5B392-11
Date: 27/05/2021
Weight: 0.070g
Measurements: 6X6X2
Locator: GP4CL25P4
Cabo Eletro Comercial ltda thanks you
GS
The SCM5B392 servo/motor controller module set is designed to solve the problem of extending a servo or motor controller signal over a long distance with the possibility of noise pickup and/or contact with hazardous voltages. Each SCM5B392 module set consists of two modules: a voltage input/current output module and a current input/voltage output module.
The voltage input module connects to the servo or motor controller's voltage output and provides an isolated 4 to 20 mA output that connects to the current input module's input. The current input module isolates and provides an output voltage identical to that of the servo or motor controller. Thus, the original control signal has been isolated (twice) and extended via a 4 to 20 mA current loop.
Several mounting options are available for the SCM5B392 module set. If a large number of channels are required, the 16-channel SCMPB01 backpanel and the 8-channel SCMPB05 backpanel are available. Smaller channel counts can be accommodated with the single-channel SCMPB03 mounting panel and the dual-channel SCMPB04 mounting panel. These can be DIN rail mounted
