Ge Fanuc Bus Switch Module IC660BSM021D
Only 2 left- Code
- 3460
- Category
- Module
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- GE Fanuc
- SKU / Internal code
- 3460
- Product type
- Module
- Condition
- Condition shown in specs
- Stock
- Only 2 left
- Weight
- 0,25 g
- Dimensions
- 24X9X10
About this item

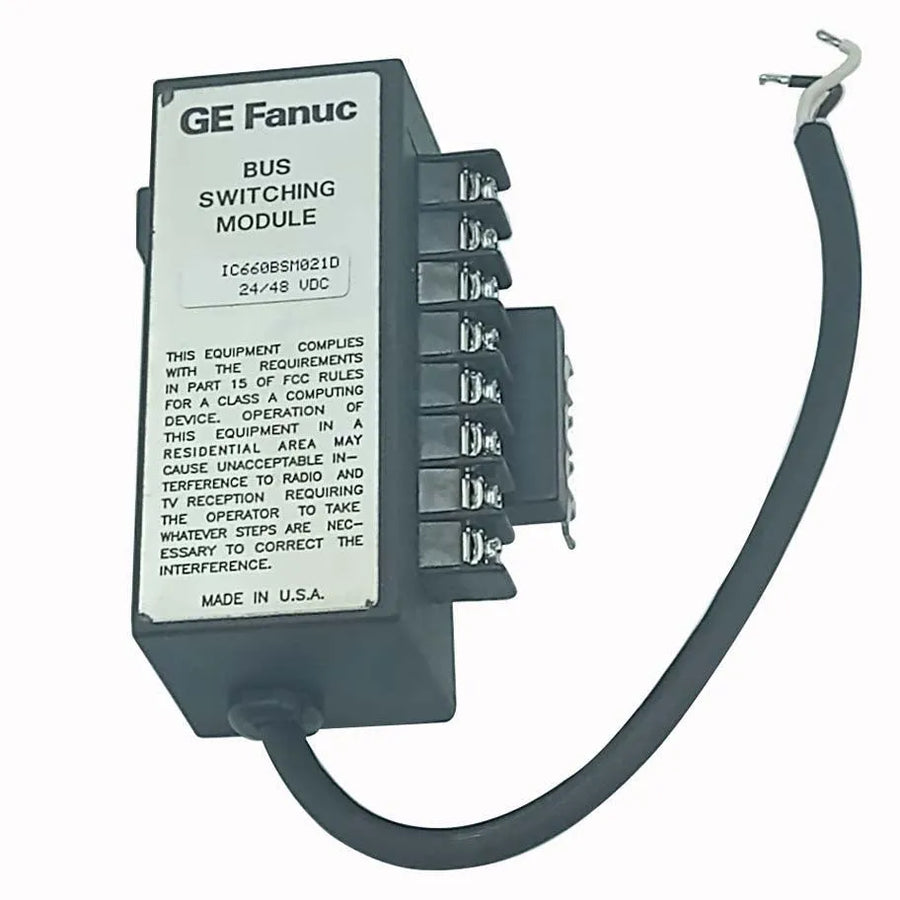

Ge Fanuc IC660BSM021D Bus Switching Module
New product in box
Brand:Ge Fanuc
Model:IC660BSM021D
The IC660BSM021 is a Genius I/O Bus Switching Module (BSM) used to connect input/output devices to two serial buses simultaneously. The IC660BSM021 exists in two versions, the 115 VAC/125 VDC BSM cataloged as IC660BSM120 and the 24/48 VDC BSM cataloged as IC660BSM021. The IC660BSM021 BSM version is capable of connecting a maximum of eight discrete and analog blocks to a dual bus. The IC660BSM021 version is also capable of allowing up to 30 I/O blocks to interface with the same dual bus if additional BSMs are used. This type of dual bus configuration provides a backup communication path that can be used in the event of a bus failure. Each bus of the dual bus pair is coupled to a bus controller or PCIM. The system can also support CPU redundancy if each bus interface module resides on a different CPU.
The phase B discrete block in the cluster controls all IC660BSM021 operations. The first circuit is an output dedicated to the IC660BSM021 BSM. This specific output enables bus switching every time communication is lost on the current bus. If an operating bus cannot be found with an IC660BSM021 switch, the BSM must wait for communication to be restored on the connected bus or until power can be turned on and off to the BSM controller block. This prevents unnecessary switching. De-energized, the IC660BSM021 connects the blocks to bus A. The IC660BSM021 BSM becomes energized only when bus B selection is required. The LED on the IC660BSM021 illuminates when bus B is active. IC660BSM021 The BSM can also be commanded to switch buses using the CPU or the handheld monitor. IC660BSM021 and IC660BSM120 are identical except for the power supply. IC660BSM021 is powered by 24/48VDC, while IC660BSM120 is powered by 115 VAC/125 VDC.
Genius technology provides the basis for redundancy - When connected in a redundant configuration with two or more CPUs running simultaneously, the Genius blocks will automatically switch to a backup CPU if the primary controller fails to communicate.
Date:24/08/2021
Measurements:24X9X10
Locator:GP4CL83P2
Cabo Eletro Comercial ltda thanks you
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Ge Fanuc IC660BSM021D Bus Switching Module
New product in box
Brand:Ge Fanuc
Model:IC660BSM021D
The IC660BSM021 is a Genius I/O Bus Switching Module (BSM) used to connect input/output devices to two serial buses simultaneously. The IC660BSM021 exists in two versions, the 115 VAC/125 VDC BSM cataloged as IC660BSM120 and the 24/48 VDC BSM cataloged as IC660BSM021. The IC660BSM021 BSM version is capable of connecting a maximum of eight discrete and analog blocks to a dual bus. The IC660BSM021 version is also capable of allowing up to 30 I/O blocks to interface with the same dual bus if additional BSMs are used. This type of dual bus configuration provides a backup communication path that can be used in the event of a bus failure. Each bus of the dual bus pair is coupled to a bus controller or PCIM. The system can also support CPU redundancy if each bus interface module resides on a different CPU.
The phase B discrete block in the cluster controls all IC660BSM021 operations. The first circuit is an output dedicated to the IC660BSM021 BSM. This specific output enables bus switching every time communication is lost on the current bus. If an operating bus cannot be found with an IC660BSM021 switch, the BSM must wait for communication to be restored on the connected bus or until power can be turned on and off to the BSM controller block. This prevents unnecessary switching. De-energized, the IC660BSM021 connects the blocks to bus A. The IC660BSM021 BSM becomes energized only when bus B selection is required. The LED on the IC660BSM021 illuminates when bus B is active. IC660BSM021 The BSM can also be commanded to switch buses using the CPU or the handheld monitor. IC660BSM021 and IC660BSM120 are identical except for the power supply. IC660BSM021 is powered by 24/48VDC, while IC660BSM120 is powered by 115 VAC/125 VDC.
Genius technology provides the basis for redundancy - When connected in a redundant configuration with two or more CPUs running simultaneously, the Genius blocks will automatically switch to a backup CPU if the primary controller fails to communicate.
Date:24/08/2021
Weight:0,250G
Measurements:24X9X10
Locator:GP4CL83P2
