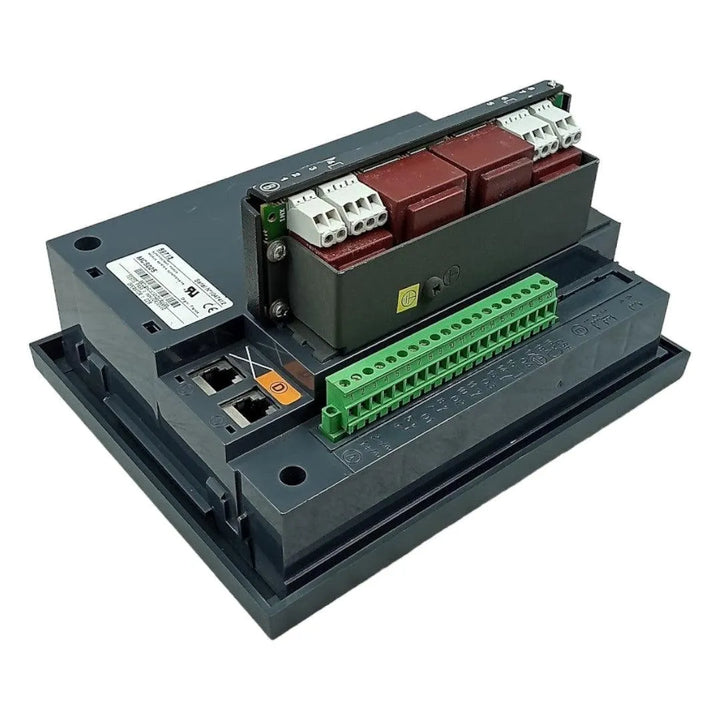

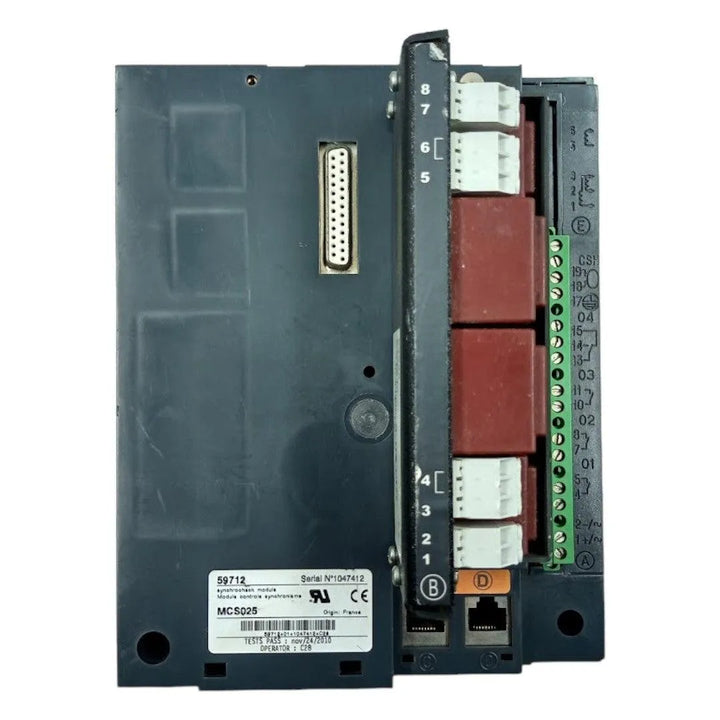

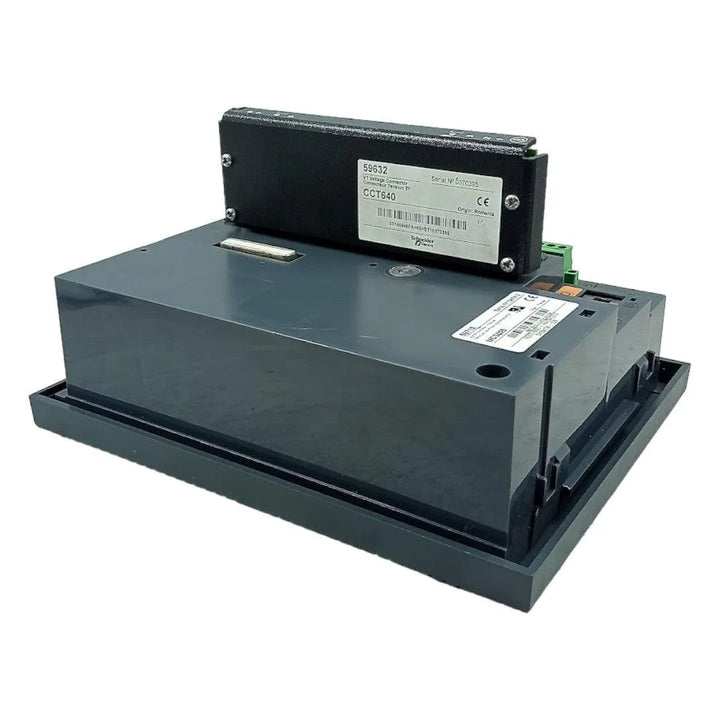

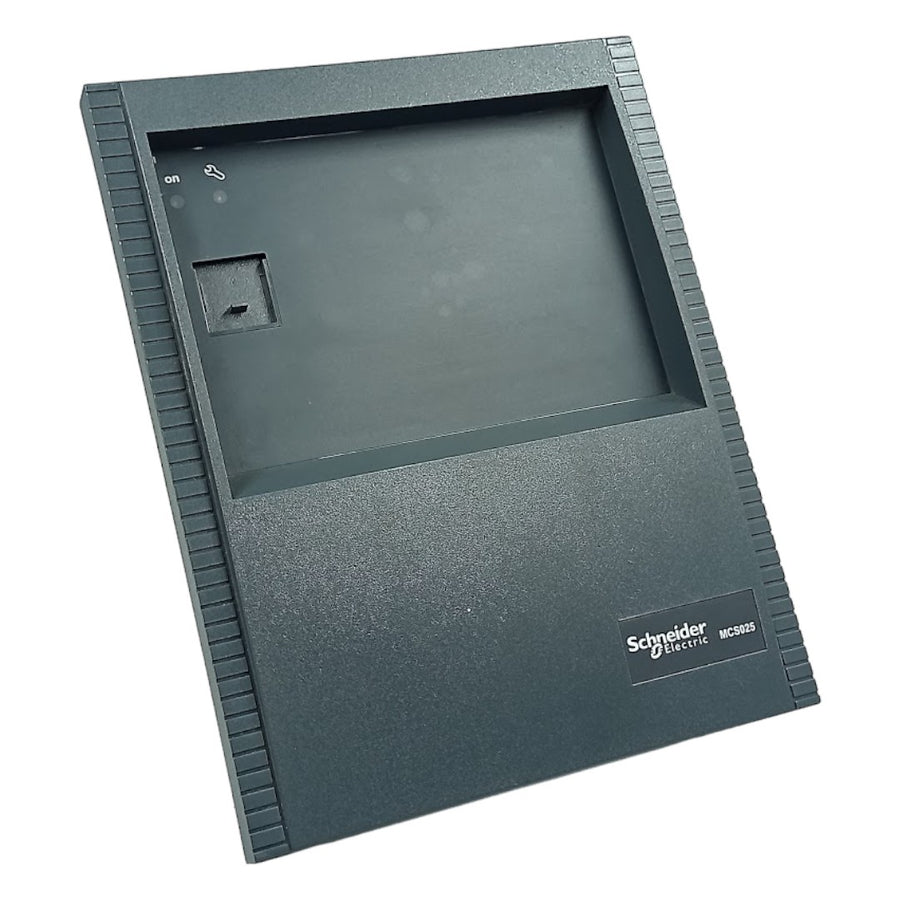

Schneider MCS025 59712 Synchronization Check Module

New product out of manufacturer's box

Brand: Schneider

Model: MCS025 59712



 SYNCHRONIZATION CHECK MODULE FOR RELAY





Easergy Sepam Series 80 is a line of protection relays designed for substations, feeders, busbars, motors, transformers, generators, and capacitor banks. It provides 16 types of digital current or voltage protection for any distribution system, each dedicated to a single application. The MCS025 Sepam series 60, 80 synchronization check module includes CCA785 connection cable and 3 relay outputs. This device can be fixed on the mounting plate. The supply voltage ranges from 10 V AC to 240 V AC at 47.5 to 63 Hz and 24 V DC to 250 V DC.





Main

Product line

Sepam series 80

Sepam series 80 NPP

Sepam series 60

Device short name

MCS025

Complementary

Number of outputs

3 relay

Output type

Relay: 100..0.240 V AC 47.5...63 Hz Continuous current: 2 A breaking capacity: 5 A cos > 0.3

Relay: 100..0.240 V AC 47.5...63 Hz Continuous current: 8 A breaking capacity: 5 A cos > 0.3 making capacity: < 15 A in 200 ms

Relay: 100..0.240 V AC 47.5...63 Hz Continuous current: 8 A breaking capacity: 8 A resistive making capacity: < 15 A in 200 ms

Relay: 127 V DC Continuous current: 2 A breaking capacity: 0.5 A L/R < 20 ms

Relay: 127 V DC Continuous current: 8 A breaking capacity: 0.2 A L/R < 40 ms making capacity: < 15 A in 200 ms

Relay: 127 V DC Continuous current: 8 A breaking capacity: 0.5 A L/R < 20 ms making capacity: < 15 A in 200 ms

Relay: 127 V DC Continuous current: 8 A breaking capacity: 0.7 A resistive making capacity: < 15 A in 200 ms

Relay: 220 V DC Continuous current: 2 A breaking capacity: 0.15 A L/R < 20 ms

Relay: 220 V DC Continuous current: 8 A breaking capacity: 0.1 A L/R < 40 ms making capacity: < 15 A in 200 ms

Relay: 220 V DC Continuous current: 8 A breaking capacity: 0.2 A L/R < 20 ms making capacity: < 15 A in 200 ms

Relay: 220 V DC Continuous current: 8 A breaking capacity: 0.3 A resistive making capacity: < 15 A in 200 ms

Relay: 24 V DC Continuous current: 2 A breaking capacity: 2 A L/R < 20 ms

Relay: 24 V DC Continuous current: 8 A breaking capacity: 4 A L/R < 40 ms making capacity: < 15 A in 200 ms

Relay: 24 V DC Continuous current: 8 A breaking capacity: 6 A L/R < 20 ms making capacity: < 15 A in 200 ms

Relay: 24 V DC Continuous current: 8 A breaking capacity: 8 A resistive making capacity: < 15 A in 200 ms

Relay: 48 V DC Continuous current: 2 A breaking capacity: 1 A L/R < 20 ms

Relay: 48 V DC Continuous current: 8 A breaking capacity: 1 A L/R < 40 ms making capacity: < 15 A in 200 ms

Relay: 48 V DC Continuous current: 8 A breaking capacity: 2 A L/R < 20 ms making capacity: < 15 A in 200 ms

Relay: 48 V DC Continuous current: 8 A breaking capacity: 4 A resistive making capacity: < 15 A in 200 ms

Rated supply voltage [Us]

10..0.240 V AC 47.5...63 Hz tolerance: - 20 %...+ 0 % consumption OFF: 9 VA

24...250 V DC tolerance: - 10...10 % consumption OFF: 6 W

Power supply inrush current

< 10 A of 10 ms at 24...250 V DC

< 15 A at 110..0.240 V AC

Mounting mode

Fixed

Mounting support

Mounting plate



Power frequency dielectric strength

1 kV (indication output) for 1 min to ANSI C37.90

1.5 kV (control output) for 1 min to ANSI C37.90

2 kV for 1 min to IEC 60255-5

[Uimp] rated impulse withstand voltage

5 kV (1.2/50 us) according to IEC 60255-5

Mechanical robustness

Earthquakes In operation (level: 2) : 1 Gn (vertical axes) according to IEC 60255-21-3

Earthquakes In operation (level: 2) : 2 Gn (horizontal axes) according to IEC 60255-21-3

Shocks De-energization (level: 2) : 20 Gn/16 ms according to IEC 60255-21-2

Shocks De-energization (level: 2) : 27 Gn/11 ms according to IEC 60255-21-2

Shocks In operation (level: 2) : 10 Gn/11 ms according to IEC 60255-21-2

Vibrations De-energization (level: 2) : 2 Gn, 10 Hz...150 Hz according to IEC 60255-21-1

Vibrations In operation (level: 2) : 1 Gn, 10 Hz...150 Hz according to IEC 60255-21-1

Vibrations In operation (level: Fc) : 2 Hz...13.2 Hz, a = +/- 1 mm according to IEC 60068-2-6

Environment

Standards

EN 50263

UL 508

CSA C22.2, No 14-95

CSA C22.2, No 0.17-00

CSA C22.2, No 94-M91

Product certifications

UL 508 file No 212533

CE

C22.2 file No 210625

Fire resistance

650 °C according to IEC 60695-2-11

IP protection degree

Other panels: IP20 conforming to IEC 60529

Front panel: IP52 conforming to IEC 60529

NEMA protection degree

Type 12 according to NEMA

Micro-interruption immunity

100 ms



Date: 2023/01/10

Weight: 1.400Kg

Measurements: 7X18X22

Locator: B14P3B
