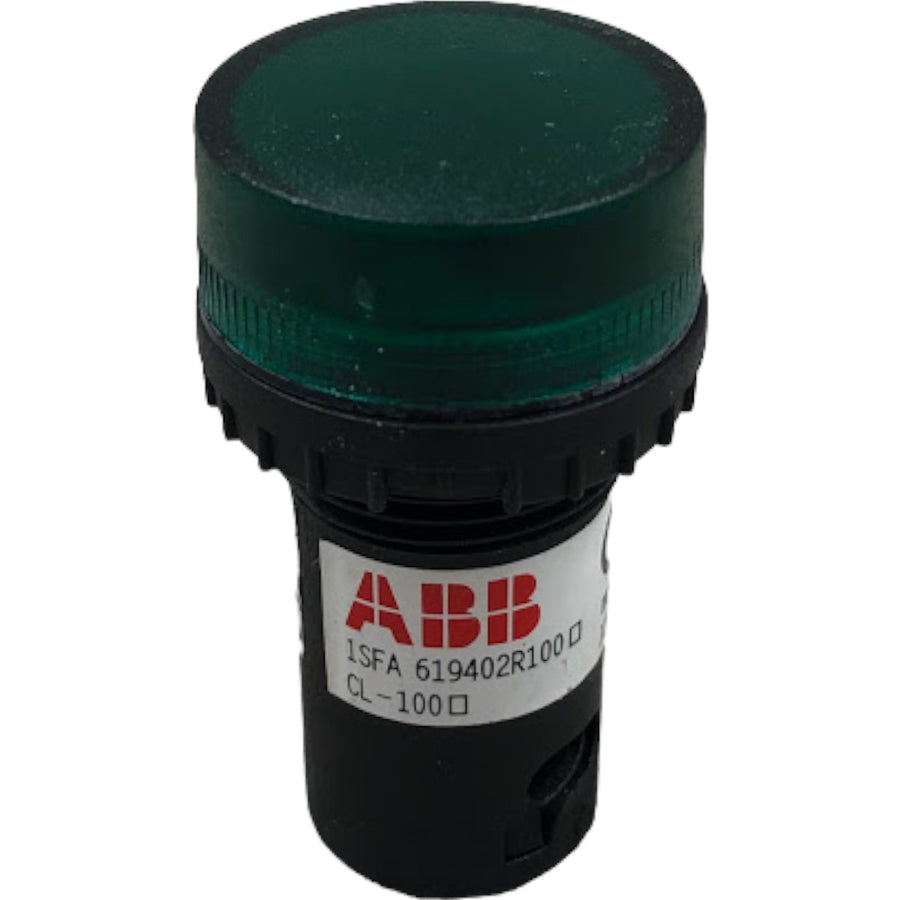

ABB CL-100G 1SFA619402R1002 240v Green Pilot Light
Only 2 left- Code
- WS6332
- GTIN
- 7893356016886
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- ABB
- SKU / Internal code
- WS6332
- GTIN
- 7893356016886
- Condition
- Condition shown in specs
- Stock
- Only 2 left
- A luz piloto CL-100G é
- Compacta - Luz piloto - Cabeça de luz piloto - Verde - Iluminada - 240 V
- Weight
- 0,018 kg
- Dimensions
- 10X15X24
About this item
NEW product out of manufacturer's box
Model: CL-100G 1SFA619402R1002
A pilot light is a visual signaling device used in electrical systems and control panels to indicate the operating status of equipment or circuits. It serves as an indicator that provides information about the operational state of machines, processes, or electrical systems, helping operators monitor and control processes efficiently.
The CL-100G pilot light is: Compact - Pilot light - Pilot light head - Green - Illuminated - 240 V
This Pilot Light is part of ABB's compact range, the most efficient multi-functional solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Ambient temperature:
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Pilot light head
Bezel material:
NEMA enclosure type:
Pollution degree:
Rated frequency (f):
Supply Circuit 60 50 Hz
Rated operational voltage:
Rated operational current DC-13 (Ie):
Rated Operational Current AC-15 (Ie):
Connection capacity:
Flexible with ferrule 1 x 0.75...2.5 mm²
Flexible with ferrule 2 x 0.75...2.5 mm²
Flexible with insulated ferrule 1 x 0.75...2.5 mm²
Flexible with insulated ferrule 2 x 0.75...2.5 mm²
Flexible 1 x 0.75 ... 2.5 mm²
Flexible 2 x 0.75 ... 2.5 mm²
Solid 1 x 0.75...2.5 mm²
Solid 2 x 0.75...2.5 mm²
Connection type:
Screw terminals
Wire stripping length:
Suitable for a product class:
Date: 20/08/2024
Weight: 0.018Kg
Measurements: 10X15X24
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may be applied. If the transaction is subject to this tax, payment responsibility is exclusively with the buyer.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
ABB CL-100G 1SFA619402R1002 240v Green Pilot Light
NEW product out of manufacturer's box
Brand: ABB
Model: CL-100G 1SFA619402R1002
A pilot light is a visual signaling device used in electrical systems and control panels to indicate the operating status of equipment or circuits. It serves as an indicator that provides information about the operational state of machines, processes, or electrical systems, helping operators monitor and control processes efficiently.
The CL-100G pilot light is: Compact - Pilot light - Pilot light head - Green - Illuminated - 240 V
This Pilot Light is part of ABB's compact range, the most efficient multi-functional solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Technical
Ambient temperature:
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Color:
Green
Actuator type:
Pilot light head
Bezel material:
N/A
Illumination:
Illuminated
Lamp type:
Ba9s
NEMA enclosure type:
Type 1
Type 12
Type 13
Type 3R
Type 4
Type 4X
Pollution degree:
3
Rated frequency (f):
Supply Circuit 60 50 Hz
Rated operational voltage:
Maximum 240 V
Rated operational current DC-13 (Ie):
(24V) 0.3A
(125V) 0.2A
Rated Operational Current AC-15 (Ie):
(24/127V) 1.5A
(220/240V) 1A
Connection capacity:
Flexible with ferrule 1 x 0.75...2.5 mm²
Flexible with ferrule 2 x 0.75...2.5 mm²
Flexible with insulated ferrule 1 x 0.75...2.5 mm²
Flexible with insulated ferrule 2 x 0.75...2.5 mm²
Flexible 1 x 0.75 ... 2.5 mm²
Flexible 2 x 0.75 ... 2.5 mm²
Solid 1 x 0.75...2.5 mm²
Solid 2 x 0.75...2.5 mm²
Connection type:
Screw clamp
Terminal type:
Screw terminals
Open torque:
0.9 N·m
Wire stripping length:
8mm
Suitable pair:
Lamp 3W max.
Suitable for a product class:
Pilot Devices
Date: 20/08/2024
Weight: 0.018Kg
Measurements: 10X15X24
Locator: B2P3A
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may be applied. If the transaction is subject to this tax, payment responsibility is exclusively with the buyer.
Cabo Eletro Comercial LTDA thanks you.
