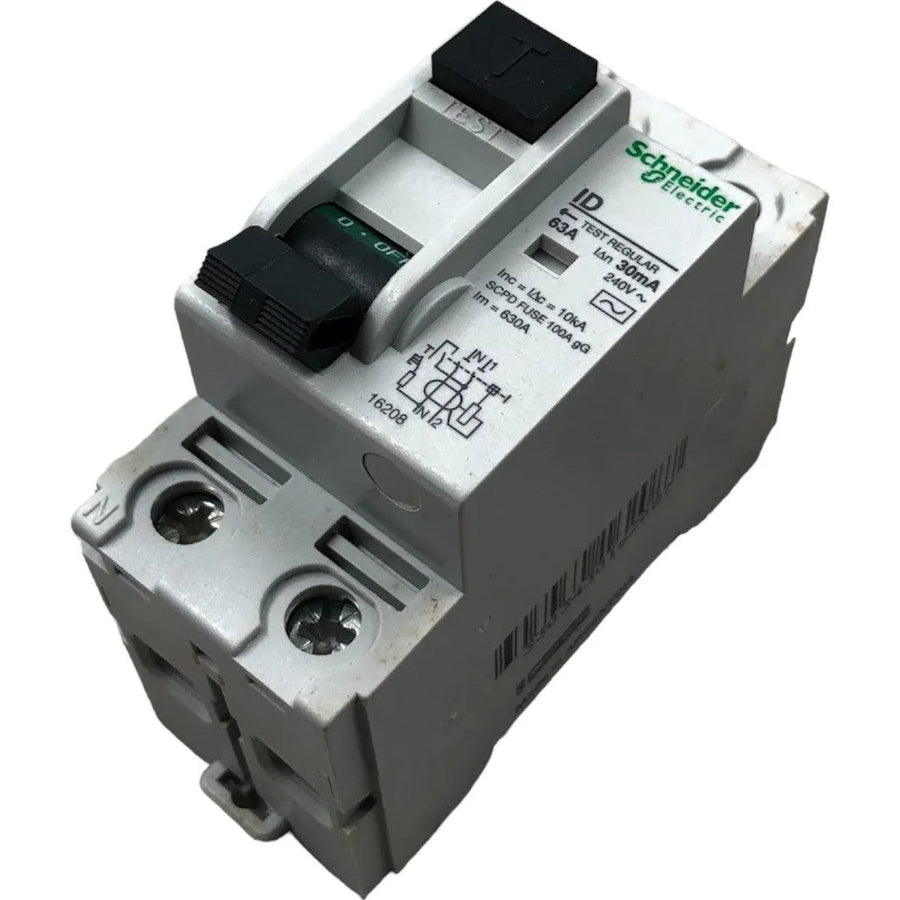

Schneider ID Residual Current Device 16208 2P 63A 30mA AC

NEW product in manufacturer's box

Brand: Schneider

Model: 16208

A Residual Current Device (RCD), also known as a Residual Current Circuit Breaker (RCCB) or Residual Current Interrupter (RCI), is an electrical safety device designed to protect people from electric shocks and prevent fires caused by insulation faults. It detects differences between the currents flowing through the phase and neutral conductors in a circuit, disconnecting the power supply if it detects an earth fault.

Acti 9 xID residual current circuit breaker - 63 A - 2P - 30mA AC class instantaneous

This product is an Acti9 xID double-connected residual current circuit breaker (RCCB). It is a 2P circuit breaker with a rated current of 63A In, 30mA sensitivity with AC type protection class. This product protects against electric shocks from direct or indirect contact and fire hazards. Connection is made downstream by a biconnect comb busbar or upstream/downstream by tunnel terminals. It complies with IEC/EN 61008-1 standard. The rated breaking and short-circuit capacity is up to 630A. Mechanical endurance is up to 4,000 cycles and electrical endurance is up to 4,000 cycles. The operating voltage Ue is 230 VAC to 240 VAC. The rated insulation voltage Ui is 500VAC. The rated impulse withstand voltage Uimp is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9 mm pitches is 4. The product color is white (RAL9003). The dimensions are (W) 36 mm x (H) 81 mm x (D) 75 mm

Main

Range

Acti9

Product Name

Acti9 xID

Product or component type

Residual current circuit breaker (RCCB)

Device short name

xID

Pole description

2P

Neutral position

Left

[In] rated current

63A

Network type

AC

Earth leakage sensitivity

30 mA

Earth leakage protection time delay

Instantaneous

Earth leakage protection class

AC type

Rated breaking and making capacity

630 A conforming to EN/IEC 61008-1

Suitability for isolation

Yes

Complementary

Network frequency

50Hz

[Ue] rated operational voltage

230...240 V AC 50 Hz

[Ui] rated insulation voltage

500 V AC 50 Hz

[Uimp] rated impulse withstand voltage

6kV

Date: 29/07/2024

Weight: 0.216Kg

Measurements: 9X4X8

Locator: A18P2C
