AMETEK 700-0207-001 69kPa Point Level Switch
Only 2 left- Code
- WS1288
- Category
- Electrical switches
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Ametek
- SKU / Internal code
- WS1288
- Product type
- Electrical switches
- Condition
- Condition shown in specs
- Stock
- Only 2 left
- Brand
- AMETEK
- Model
- 700-0207-001
- LEDs
- Green Power, Red Relay 1.
- Date
- 24/07/2023
- Weight
- 5,630g
- Measurements
- 30x30x12
- Locator
- B10P3D
About this item

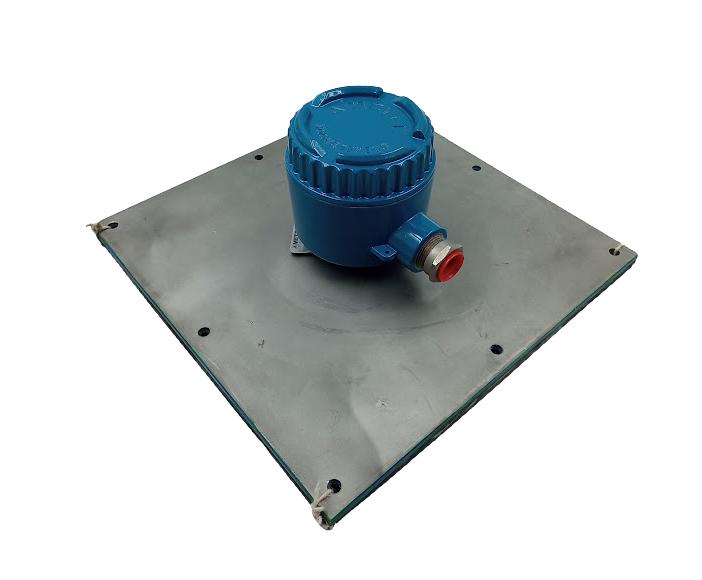

AMETEK 700-0207-001 Point Level Switch 69kPa
New Product Out of Manufacturer's Box
Model:700-0207-001
ThePoint™ Series Line Powered RF Point Level Switch
One of the Drexelbrook RF Point
Switches you won't have to calibrate
Just install ThePoint Series into the tank
and apply power... that's it! Unlike other RF or
capacitance systems that require calibration via
setpoint potentiometers, jumpers, magnets or
push-buttons, ThePoint Series reliably detects
the absence or presence of material without any
ThePoint Series software continuously monitors
for changes in composition, dielectric
or conductivity, and maintains a repeatable trip
point at the probe. Other RF and capacitance
systems require calibration adjustments when the
process material is changed. Since ThePoint Series
recognizes changes in material, it is ideal for non-dedicated tanks that are used for a wide variety of
None (for most applications).
Operating Modes:
High and low level.
2 mm (0.08 in.) conductive liquids.
Less than one second.
Ambient Electronic Temperature:
-40 to 70°C (-40 to 158°F) FM, FMc
Storage Temperature:
-40 to 85°C (-40 to 185°F).
LEDs: Green Power, Red Relay 1.
0-60 seconds, direct or reverse action.
Supply Voltage:
Automatic detection without jumpers.
Power Consumption:
Relay Contacts:
DPDT dry contacts at 5A, 120Vac.
Max Contact Load:
5A/250 VAC Max switching capacity:
2000 VA/150 Watt.
Min Contact Load (DC):
0 -200 mA / 12 VDC (Optional)
Powder-coated aluminum with two cable entries.
Ingress Protection:
Date: 24/07/2023
Measurements: 30x30x12
Locator: B10P3D
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the transaction is subject to this tax, the responsibility for payment lies solely with the buyer.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
AMETEK 700-0207-001 Point Level Switch 69kPa
New Product Out of Manufacturer's Box
Brand: AMETEK
Model:700-0207-001
ThePoint™ Series Line Powered RF Point Level Switch
One of the Drexelbrook RF Point
Switches you won't have to calibrate
Just install ThePoint Series into the tank
and apply power... that's it! Unlike other RF or
capacitance systems that require calibration via
setpoint potentiometers, jumpers, magnets or
push-buttons, ThePoint Series reliably detects
the absence or presence of material without any
adjustments.
ThePoint Series software continuously monitors
for changes in composition, dielectric
or conductivity, and maintains a repeatable trip
point at the probe. Other RF and capacitance
systems require calibration adjustments when the
process material is changed. Since ThePoint Series
recognizes changes in material, it is ideal for non-dedicated tanks that are used for a wide variety of
products.
Technology:
RF Admittance.
Calibration:
None (for most applications).
Operating Modes:
High and low level.
Repeatability:
2 mm (0.08 in.) conductive liquids.
Response Time:
Less than one second.
Ambient Electronic Temperature:
-40 to 70°C (-40 to 158°F) FM, FMc
Storage Temperature:
-40 to 85°C (-40 to 185°F).
Indicators:
LEDs: Green Power, Red Relay 1.
Time Delay:
0-60 seconds, direct or reverse action.
Supply Voltage:
19-250 VAC
18-200 VDC
Automatic detection without jumpers.
Power Consumption:
2 watts max.
Relay Contacts:
DPDT dry contacts at 5A, 120Vac.
Max Contact Load:
5A/30 VDC
5A/250 VAC Max switching capacity:
2000 VA/150 Watt.
Min Contact Load (DC):
100 mA/12 VDC
0 -200 mA / 12 VDC (Optional)
Housing:
Powder-coated aluminum with two cable entries.
Cable Entry:
M20 x 1.5
3/4 inch NPT
Ingress Protection:
IP66 NEMA 4X
Date: 24/07/2023
Weight: 5,630g
Measurements: 30x30x12
Locator: B10P3D
