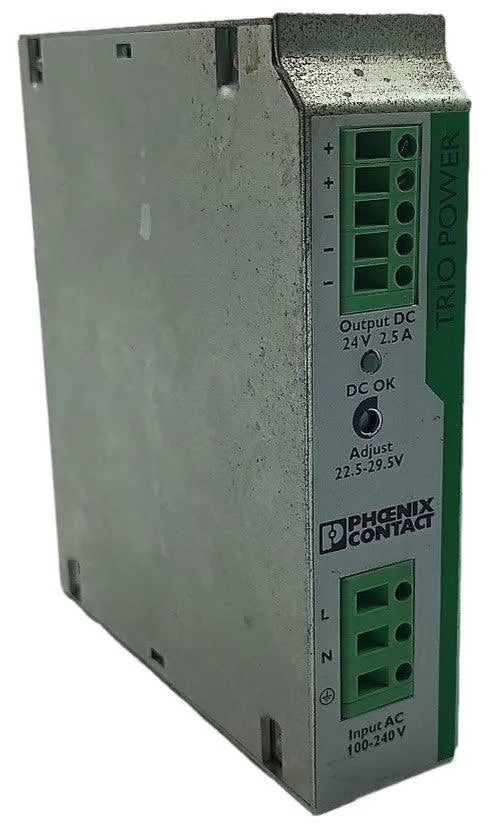

Phoenix Contact TRIO-PS/1AC/24DC/2.5 Power Supply

Phoenix Contact TRIO-PS/1AC/24DC/2.5 Power Supply (Used)

Used product out of manufacturer's box

Brand: Phoenix Contact

Model: TRIO-PS/1AC/24DC/2.5 2866268

TRIO POWER primary-switched power supplies for DIN rail mounting, input: single-phase, output: 24 V DC / 2.5 A.

TRIO POWER power supplies with standard functionality

With single-phase and three-phase variants up to 960 W, TRIO POWER is particularly suitable for series machine building. The wide-range input and international certification package enable worldwide application.

The robust metal housing, high dielectric strength, and wide temperature range ensure high supply reliability.

AC operation

Nominal input voltage range 100 V AC ... 240 V AC

Input voltage range 85 V AC ... 264 V AC (Derating < 90 V AC: 2.5 %/V)

Derating < 90 V AC (2.5 %/V)

AC input voltage range 85 V AC ... 264 V AC (Derating < 90 V AC: 2.5 %/V)

Max. dielectric strength 300 V AC

Voltage type of supply voltage AC

Inrush current < 15 A

Integral of inrush current (I2t) 0.5 A2s

AC frequency range 45 Hz ... 65 Hz

Permissible mains failure time > 20 ms (120 V AC)

> 100 ms (230 V AC)

Power consumption 0.95 A (120 V AC)

0.5 A (230 V AC)

Nominal power consumption 97 VA

Protection circuit Transient overvoltage protection; Varistor

Power factor (cos phi) 0.72

Typical switch-on time < 1 s

Input fuse 2 A (slow-blow, internal)

Additional pre-protective fuse B6 B10 B16

Suitable fuse selection for input contactor 6 A ... 16 A (Characteristic B, C, D, K)

Leakage current against PE < 3.5 mA

Efficiency 86 % (at 230 V AC and nominal values)

Output characteristic U/I

Nominal output voltage 24 V DC +-1 %

Output voltage setting range (USet) 22.5 V DC ... 29.5 V DC (> 24 V DC, constant power limited)

Nominal output current (IN) 2.5 A (UOUT = 24 V DC)

Derating 55 °C ... 70 °C (2.5 % / K)

Feedback resistance 35 V DC

Output overvoltage protection (OVP) < 35 V DC

Maximum capacitive load unlimited

Active current limiting 5 A approximately (with short circuit)

Tolerance < 1 % (Static load change 10 % ... 90 %)

< 2 % (Dynamic load change 10 % ... 90 %)

< 0.1 % (Input voltage change +-10 %)

Residual ripple < 30 mVSS

Output power 60 W

Switch-on peaks with nominal load < 20 mVSS

Power dissipation without max. nominal load 0.8 W

Power dissipation max. nominal load 10 W

Rise time < 2 ms (UOUT (10 % ... 90 %))

Can be paralleled yes, for redundancy and capacity increase.

Can be series-connected Yes

Date 05/05/2023

Weight: 0.724

Measurements 7x17x18

Locator: GP04CL59P1
