Furukawa Optical Extension 02F SM SC-APC 1.5M 35260318

Furukawa 02F SM SC-APC 1.5M 35260318 Connectorized Optical Extension

New product out of the manufacturer's box

Brand: Furukawa

Model: 02F SM SC-APC 1.5M 35260318



A connectorized optical extension is an optical cable that has an optical connector at one or both ends. Optical connectors are devices that allow two optical cables to be connected. They are essential for the installation and maintenance of optical networks.



CONNECTORIZED OPTICAL EXTENSION 02F SC-APC 1.5M BR COG



An optical extension is a single-fiber optical element or optical cable with an optical connector at one end only.



The Connectorized Optical Extension consists of two main items:



Optical Extension: single-fiber optical cable connectorized at one end;



Optical Adapter: coupler that interconnects two optical connectors of the same type as the extension being supplied.







Advantage



Recommended for indoor use for terminating optical cables inside optical distribution frames in low-loss and high-bandwidth optical systems, such as: long-distance systems, backbone networks, data and video distribution and transmission;



Exceeds the performance requirements specified in EIA/TIA-568-C.3;



Supports the main applications according to IEEE 802.3 (Gigabit and 10 Gigabit Ethernet) and ANSI T11.2 (Fibre Channel) standards;



100% polished, assembled and factory tested;



High performance in insertion loss and return loss;



Available for various types of optical connectors;



Available in single-mode and multi-mode fibers;



Available in PC and APC polish.







Polishing Type



PC (SPC/UPC) - Multimode and Singlemode Fibers





APC - Singlemode Fibers

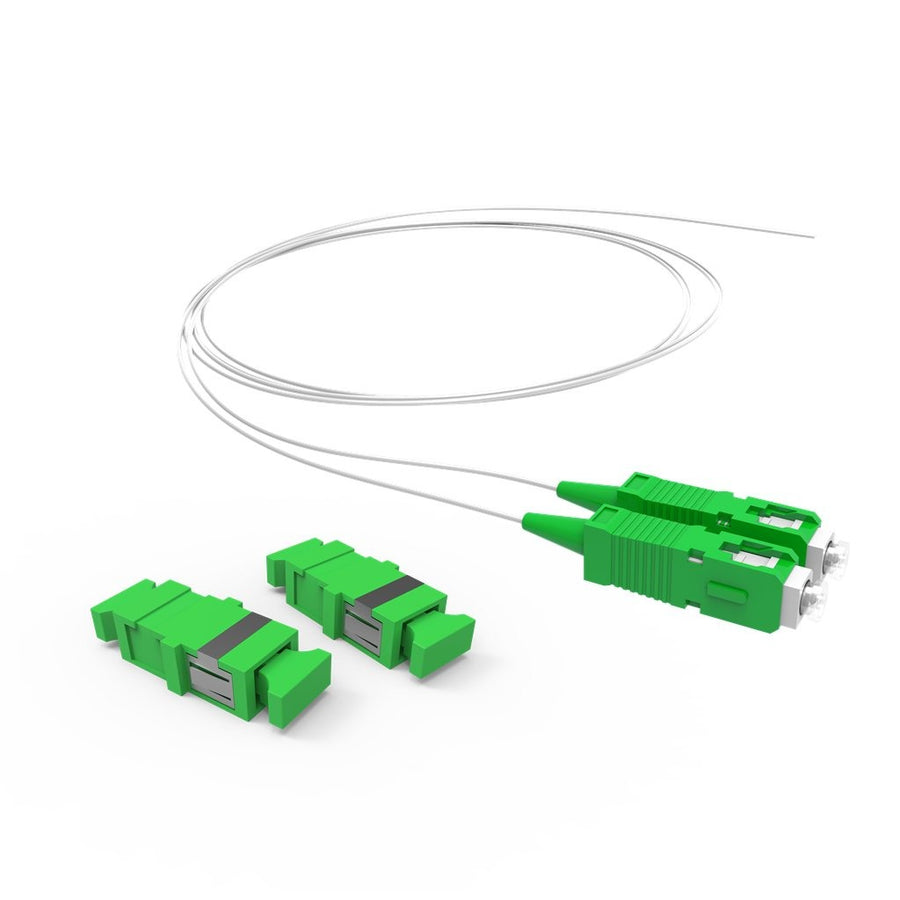

The Furukawa 35260318 Connectorized Optical Extension is a single-fiber tight buffer optical cable with SC-APC optical connectors at one end and adapters at both ends.



The cable is 1.5 meters long and is made of 9/125 µm SM (single-mode) optical fiber. The SC-APC connectors are high quality and have an 8° cleave angle. The adapters are COG (connector on gland) type, which are more resistant and provide better connector protection.



The optical extension is suitable for applications in optical communication networks, such as Ethernet networks, FTTH (Fiber to the Home), and FTTx (Fiber to the x). It can be used to connect optical equipment, such as switches, transmitters, and receivers.



Below are the main features of the Furukawa 35260318 Connectorized Optical Extension:

Type: Single-fiber

Length: 1.5 meters

Optical fiber: SM (single-mode)

Optical fiber diameter: 9/125 um

Connectors: SC-APC

Adapters: COG

Applications: Optical communication networks



The optical extension is a quality product and can be used in a wide variety of applications. It is an efficient and economical solution to extend the distance of an optical network.



Here are some tips for installing the optical extension:

Make sure the optical extension is properly insulated to prevent damage to the optical fiber.



Use a quality optical connector to crimp the connectors.

Verify that the connectors are properly connected before powering on the optical extension.

Date: 12/01/2023

Weight: 0.015

Measurements: 3x20x20

Locator: A5P2C
