Siemens 3SB34 00-0D 2NO Contact Block
Only 3 left- Code
- 2646
- GTIN
- 4011209159747
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- SIEMENS
- SKU / Internal code
- 2646
- GTIN
- 4011209159747
- Condition
- Condition shown in specs
- Stock
- Only 3 left
- Weight
- 0,015 kg
- Dimensions
- 10X10X2
About this item

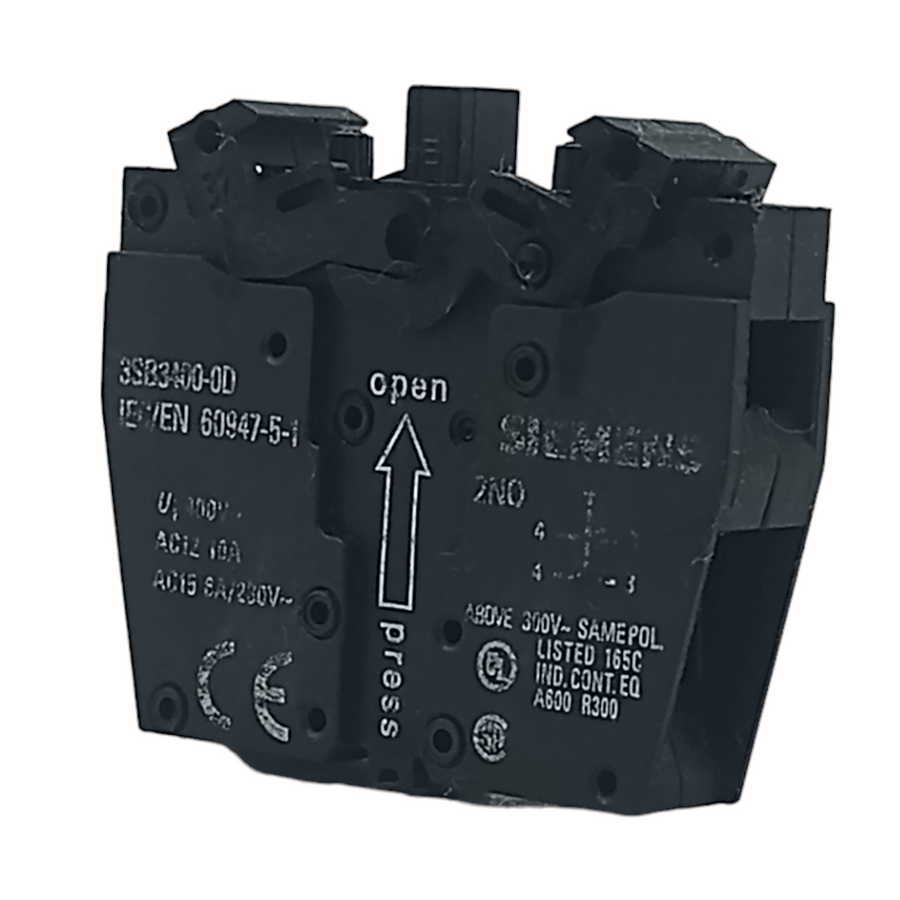

Siemens Contact Element 3SB34 00-0D 2NO
New product out of manufacturer's box
Model: 3SB34 00-0D
A contact block, in the electrical and automation context, refers to a set of electrical contacts grouped into a single unit. This block is frequently used in devices such as relays, contactors, pushbuttons, and other electrical control components. The contact block generally consists of one or more normally open (NO) and/or normally closed (NC) electrical contacts.
The main function of a contact block is to allow or interrupt the passage of electrical current in a circuit when the device to which it is associated is activated or deactivated. Depending on the configuration and type of the contact block, it can be an integral part of a larger control system, playing a crucial role in the automation and safe operation of machines and electrical equipment.
Contact block with 2 contact elements, 2 NO, screw terminal, for front plate mounting
product component
- lamp transformer No
- light source No
- series resistor No
rated insulation voltage 400 V
degree of pollution class 3
- of the operating voltage AC/DC
rated surge voltage resistance 4 kV
IP protection class
- of the enclosure IP40
- of the terminal IP20
maximum operating frequency 1,000 1/h
mechanical life (operating cycles) typical 10,000,000
electrical resistance (operating cycles) with contactors
3RT1015 to 3RT1026 typical
thermal current 10 A
Measurements: 10X10X2
Location: GP04CL59P3
Dear customers, if the material is intended for resale, ST (Tax Substitution) may be applied. If the operation is subject to this tax, payment is the sole responsibility of the buyer.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Siemens Contact Element 3SB34 00-0D 2NO
New product out of manufacturer's box
Brand: Siemens
Model: 3SB34 00-0D
A contact block, in the electrical and automation context, refers to a set of electrical contacts grouped into a single unit. This block is frequently used in devices such as relays, contactors, pushbuttons, and other electrical control components. The contact block generally consists of one or more normally open (NO) and/or normally closed (NC) electrical contacts.
The main function of a contact block is to allow or interrupt the passage of electrical current in a circuit when the device to which it is associated is activated or deactivated. Depending on the configuration and type of the contact block, it can be an integral part of a larger control system, playing a crucial role in the automation and safe operation of machines and electrical equipment.
Contact block with 2 contact elements, 2 NO, screw terminal, for front plate mounting
product component
- diode No
- lamp transformer No
- light source No
- series resistor No
rated insulation voltage 400 V
degree of pollution class 3
voltage type
- of the operating voltage AC/DC
rated surge voltage resistance 4 kV
IP protection class
- of the enclosure IP40
- of the terminal IP20
maximum operating frequency 1,000 1/h
mechanical life (operating cycles) typical 10,000,000
electrical resistance (operating cycles) with contactors
3RT1015 to 3RT1026 typical
10,000,000
thermal current 10 A
Date: 07/14/21
Weight: 0.015
Measurements: 10X10X2
Location: GP04CL59P3
