Phoenix Contact VAL-MS BE Base Element 2817141
Sob consulta- Código
- WS6387
- GTIN
- 4017918148164
- Despacho
- Em até 1 dia útil para itens em estoque.
- Top seller no Mercado Livre & eBay
- NF-e e faturamento por CNPJ
- Despacho em até 1 dia útil
- Pagamento seguro (Pix, boleto, cartão)
Escolha o tipo de cadastro — abrimos o formulário com os dados deste produto já preenchidos.
Dados principais do item
- Marca
- Phoenix Contact
- SKU / Código interno
- WS6387
- GTIN
- 4017918148164
- Condição
- Condição na ficha
- Estoque
- Sob consulta
- Brand
- Phoenix Contact
- Model
- VAL-MS BE 2817141
- Date
- 27/08/2024
- Weight
- 0.068Kg
- Measurements
- 10X15X24
- Locator
- B4P2A
Sobre o produto

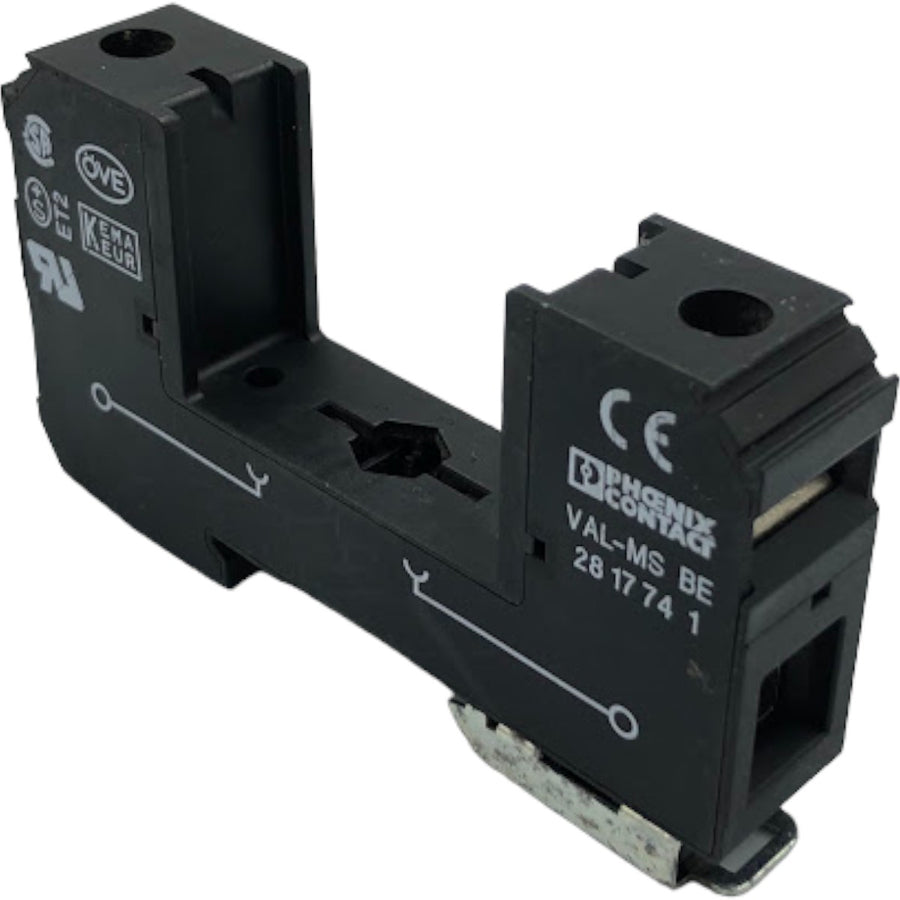

Phoenix Contact VAL-MS BE 2817141 Base Element
NEW product out of manufacturer's box
Brand: Phoenix Contact
Model: VAL-MS BE 2817141
Type 2 surge protection base element
Base for Type 2 arrester from the VALVETRAB MS series. Version: 1-channel
For mounting in a touch-proof enclosure. For applications with UC 500 V, lateral clearances and clearances in the connection area of at least 5 mm between different active parts, including grounded parts, must be observed.
Product type Base element
Product family VALVETRAB MS
Type of protection according to IEC II
Format Base element, DIN rail mounting
Number of poles 1
Indication of faulty surge protection none
Article revision 20
Insulation properties
Overvoltage category III
Pollution degree 2
Nominal frequency fN 50 Hz (60 Hz)
Connection type Screw connection
Insulation length 16 mm
Rated frequency fN 50 Hz (60 Hz)
Maximum continuous operating voltage UC 600 V AC
Nominal load current IL 80 A
Short-circuit withstand current ISCCR 25 kA
Date: 27/08/2024
Weight: 0.068Kg
Measurements: 10X15X24
Dear customers, if the material is for resale, the ST (Tax Substitution) value may apply. If the transaction is subject to this tax, payment is the sole responsibility of the buyer.
Cabo Eletro Comercial LTDA thanks you.
-------------------------- ATTENTION -------------------------------
New material, never used but with stock marks.
Please check the photos to verify the condition of the items that will be delivered after purchase.
------------------------------------------------------------------------------------------------
5 motivos para comprar na Cabo Eletro
- 01 Reputação comprovada Top seller no Mercado Livre & eBay, com histórico público de vendas.
- 02 Procedência e NF-e Faturamento por CNPJ e nota fiscal eletrônica em toda compra.
- 03 Estoque difícil de achar 12.000+ SKUs, inclusive itens fora de linha e de reposição.
- 04 Despacho rápido Itens em estoque saem em até 1 dia útil após a confirmação.
- 05 Apoio técnico Validamos código e aplicação com você antes da compra.
Vai levar vários itens? Peça um orçamento por e-mail
Envie este e outros códigos/SKUs e receba um orçamento consolidado, com nota fiscal e condições para volume. Atendemos pessoa física, jurídica e compradores internacionais.
Phoenix Contact VAL-MS BE Base Element 2817141
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Phoenix Contact VAL-MS BE 2817141 Base Element
NEW product out of manufacturer's box
Brand: Phoenix Contact
Model: VAL-MS BE 2817141
Type 2 surge protection base element
Base for Type 2 arrester from the VALVETRAB MS series. Version: 1-channel
For mounting in a touch-proof enclosure. For applications with UC 500 V, lateral clearances and clearances in the connection area of at least 5 mm between different active parts, including grounded parts, must be observed.
Product type Base element
Product family VALVETRAB MS
Type of protection according to IEC II
T2
EN types T2
Format Base element, DIN rail mounting
Number of poles 1
Indication of faulty surge protection none
Article revision 20
Insulation properties
Overvoltage category III
Pollution degree 2
Nominal frequency fN 50 Hz (60 Hz)
Connection type Screw connection
Thread M5
Insulation length 16 mm
Rated frequency fN 50 Hz (60 Hz)
Maximum continuous operating voltage UC 600 V AC
Nominal load current IL 80 A
Short-circuit withstand current ISCCR 25 kA
Date: 27/08/2024
Weight: 0.068Kg
Measurements: 10X15X24
Locator: B4P2A
Dear customers, if the material is for resale, the ST (Tax Substitution) value may apply. If the transaction is subject to this tax, payment is the sole responsibility of the buyer.
Cabo Eletro Comercial LTDA thanks you.
-------------------------- ATTENTION -------------------------------
New material, never used but with stock marks.
Please check the photos to verify the condition of the items that will be delivered after purchase.
------------------------------------------------------------------------------------------------
