ABB OVR PV T1-T2 5-1000 P QS Surge Protection Device

Surge Protection Device ABB OVR PV T1-T2 5-1000 P QS 2CTB812050R1000

New product in manufacturer's box

Brand: ABB

Model: OVR PV T1-T2 5-1000 P QS 2CTB812050R1000

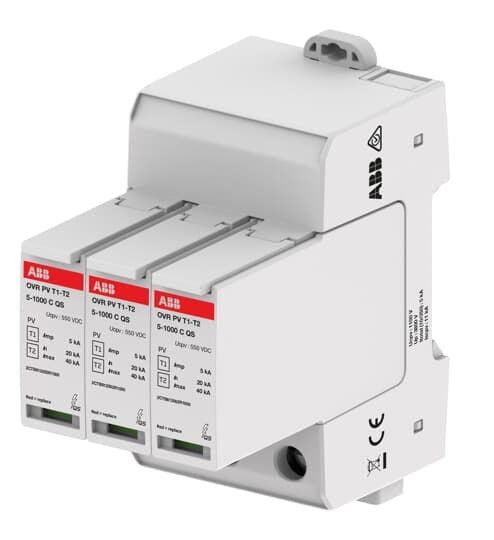

(Cover photo for illustration purposes only)

Surge protection device OVR PV T1-T2 5-1000 P QS

A surge protection device, also known as SPD (Surge Protective Device) or lightning protection system (SPDA in Portuguese, usually known as LPS in English), is an electrical component designed to protect electronic equipment, electrical systems, and structures from damage caused by electrical surges. These surges can be caused by lightning, power grid maneuvers, or other sources of transient high voltage.

Surge protection devices work by detecting a rapid and significant increase in electrical voltage and diverting this unwanted energy to the ground, away from the devices or circuits that need to be protected. They play a critical role in preventing electrical damage, including equipment burnout, deterioration of sensitive electronic components, and the risk of fire.

Technical

Standards: IEC 61 643-11 / EN 50539-11

Suitable for: Protecting systems against transient overvoltages (lightning)

Rated voltage (Ur): 1000 V DC

DC voltage rating: 1000V

Voltage protection level (Up): 3.8kV

Maximum Continuous Operating Voltage (Uc): (L-PE) 1100 V

(LL) 1100 V

(LN) 0 V

(N-PE) 0 V

Maximum power point voltage (MPP): 1000V

Rated service short-circuit breaking capacity (Ics): 11 kA

Discharge current: Rated (8/20 µs) 20 kA

I (max, 8/20 µs) 20 kA

Impulse current: I (imp, 10/350 µs) 5 kA

I (total, 10/350 µs) 5 kA

Short-circuit withstand Icc: 11 kA

Devices with short-circuit protection: gG type fuses NA

Lightning arrester class: I

II

Number of poles: 3

Number of Protected Poles: 2

Number of conductors: 2

Transmission standard: Optical

Version: Plug-in

Support type: Rail

Product type: QS

Options provided: Solar

Preventive maintenance feature: No

Status indicator: Yes

Number of batteries: 0

Fuse size: 3 modular spacing

Environmental

Protection degree: IP20

Date: 04/09/2023

Weight: 0.300

Measurements: 10x11x6

Locator: B13P2A
