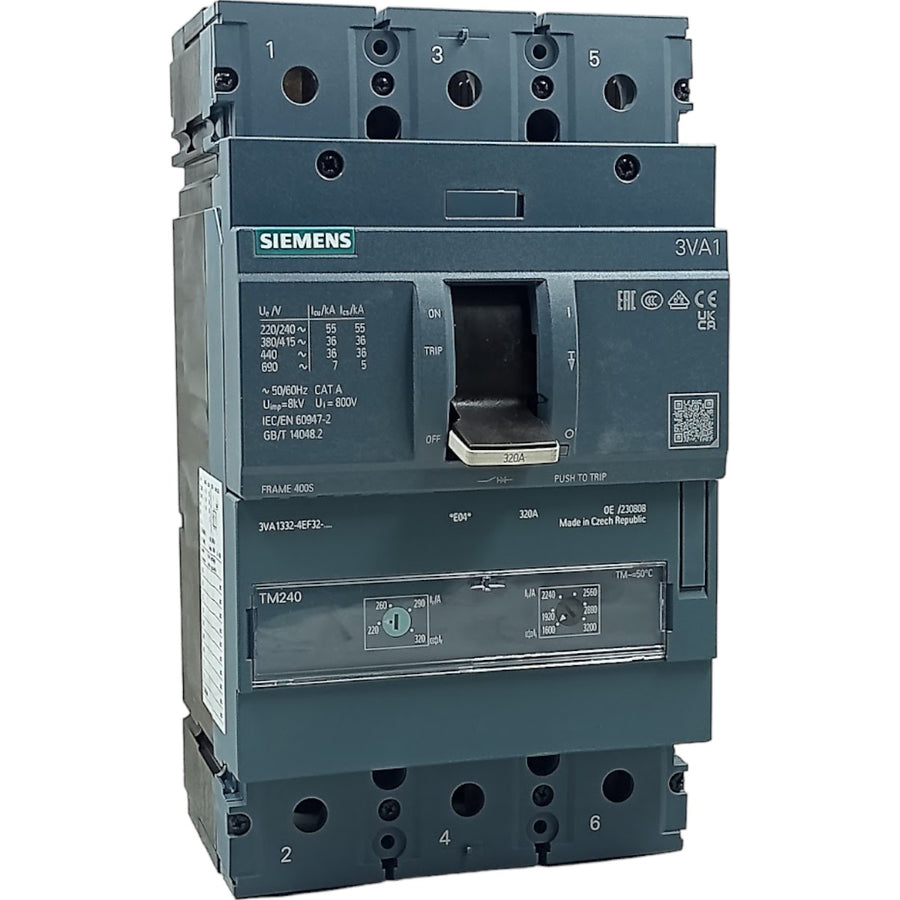

Siemens 3VA1332-4EF32-0AA0 Three-Pole Circuit Breaker 320A 415V 36kA
Only 2 left- Code
- WS5022
- GTIN
- 4042948809501
- Category
- Circuit breakers
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- SIEMENS
- SKU / Internal code
- WS5022
- GTIN
- 4042948809501
- Product type
- Circuit breakers
- Condition
- Condition shown in specs
- Stock
- Only 2 left
- Weight
- 4,84 kg
- Dimensions
- 27x17x18
About this item
Siemens 3VA1332-4EF32-0AA0 320A 415v 36kA Three-Pole Molded Case Circuit Breaker
New product in manufacturer's box
Model: 3VA1332-4EF32-0AA0
A three-pole molded case circuit breaker (MCCB) is a type of circuit breaker designed to provide overcurrent protection, including overloads and short circuits, in medium and high-capacity electrical circuits. The "three-pole" designation indicates that the circuit breaker is capable of protecting three phases (or conductors) simultaneously, which is common in three-phase power distribution systems.
The circuit breaker is enclosed in a molded insulating material case, which offers mechanical and electrical protection to the internal components. This case is designed to withstand adverse conditions and provide durability.
It has three poles, each corresponding to one phase of a three-phase system. Each pole is capable of interrupting the current of its respective phase, offering complete protection for three-phase systems.
Overcurrent Protection:
Molded case circuit breakers are equipped with tripping mechanisms that respond to overloads and short circuits. These mechanisms can be thermal (for overloads) and magnetic (for short circuits).
3VA1 IEC circuit breaker Frame 400 breaking capacity class S Icu=36 kA @ 415 V 3-pole, line protection TM240, ATAM, In=320 A overload protection Ir=224 A...320 A short-circuit protection Ii=5...10 x nut guard kit
product brand SENTRON
product designation Molded case circuit breaker
product design Line protection
overcurrent release design TM240
overcurrent release protection function LI
number of poles 3
General technical data
insulation voltage / rated value 800 V
operating voltage / at DC / rated value 500 V
operating voltage / at AC / rated value 690 V
power loss [W] / maximum 80.1 W
power loss [W] / for rated value of current / at AC / in hot
operating state / per pole
mechanical service life (operating cycles) / typical 20,000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V 6,000
electrical endurance (operating cycles) / at AC-1 / at 690 V 4,200
product feature / for neutral conductors / upgradable/retrofittable
/ short-circuit and overload proof
Date: 05/06/2024
Weight: 4.840Kg
Measurements: 27x17x18
Locator: A14P3C
Dear customers, if the material is for resale, the ST (Tax Substitution) value may be incurred. If the operation is subject to this tax, the responsibility for payment lies solely with the buyer.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Siemens 3VA1332-4EF32-0AA0 320A 415v 36kA Three-Pole Molded Case Circuit Breaker
New product in manufacturer's box
Brand: Siemens
Model: 3VA1332-4EF32-0AA0
A three-pole molded case circuit breaker (MCCB) is a type of circuit breaker designed to provide overcurrent protection, including overloads and short circuits, in medium and high-capacity electrical circuits. The "three-pole" designation indicates that the circuit breaker is capable of protecting three phases (or conductors) simultaneously, which is common in three-phase power distribution systems.
Molded Case:
The circuit breaker is enclosed in a molded insulating material case, which offers mechanical and electrical protection to the internal components. This case is designed to withstand adverse conditions and provide durability.
Three-Pole:
It has three poles, each corresponding to one phase of a three-phase system. Each pole is capable of interrupting the current of its respective phase, offering complete protection for three-phase systems.
Overcurrent Protection:
Molded case circuit breakers are equipped with tripping mechanisms that respond to overloads and short circuits. These mechanisms can be thermal (for overloads) and magnetic (for short circuits).
3VA1 IEC circuit breaker Frame 400 breaking capacity class S Icu=36 kA @ 415 V 3-pole, line protection TM240, ATAM, In=320 A overload protection Ir=224 A...320 A short-circuit protection Ii=5...10 x nut guard kit
product brand SENTRON
product designation Molded case circuit breaker
product design Line protection
overcurrent release design TM240
overcurrent release protection function LI
number of poles 3
General technical data
insulation voltage / rated value 800 V
operating voltage / at DC / rated value 500 V
operating voltage / at AC / rated value 690 V
power loss [W] / maximum 80.1 W
power loss [W] / for rated value of current / at AC / in hot
operating state / per pole
26.7W
mechanical service life (operating cycles) / typical 20,000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V 6,000
electrical endurance (operating cycles) / at AC-1 / at 690 V 4,200
product feature / for neutral conductors / upgradable/retrofittable
/ short-circuit and overload proof
No
Date: 05/06/2024
Weight: 4.840Kg
Measurements: 27x17x18
Locator: A14P3C
