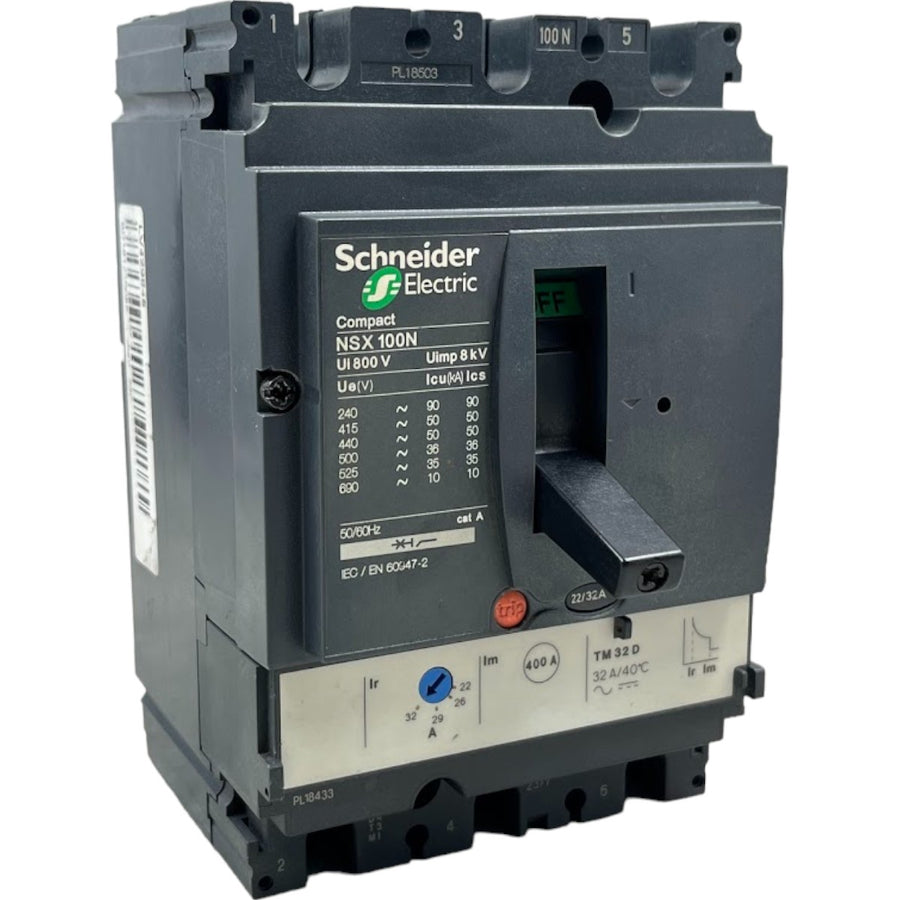

Circuit Breaker SCHNEIDER NSX100N TM32D 22/32A 800V 8KV
Last unit- Code
- WS4167
- GTIN
- 7895580392514
- Category
- Three-pole circuit breaker
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- SCHNEIDER
- SKU / Internal code
- WS4167
- GTIN
- 7895580392514
- Product type
- Three-pole circuit breaker
- Condition
- Condition shown in specs
- Stock
- Last unit
- Brand
- SCHNEIDER
- Model
- NSX 100N
- L
- for overload protection (thermal)
- I
- for short-circuit protection (magnetic)
- Date
- 04/17/2024
- Weight
- 1.69 kg
- Measurements
- 10X15X24
- Locator
- A11P3A
About this item
Tripolar Circuit Breaker SCHNEIDER NSX100N TM32D 22/32A 800V 8KV
New product out of manufacturer's box
Brand: SCHNEIDER
Model: NSX 100N
A circuit breaker is an electrical device designed to protect electrical circuits from overloads and short circuits. It acts as an automatic switch that turns off the electrical circuit in case of abnormal conditions that may pose a risk of damage to equipment or fire.
Circuit breakers are essential components in residential, commercial, and industrial electrical systems, and are installed in electrical panels to protect electrical wires and connected equipment. They work by monitoring the electrical current flowing through the circuit and automatically switching off when they detect an excessive current that could cause damage.
ComPact NSX100...250
Device short name
Product or component type
Circuit breaker
Device application
Number of poles
Description of protected poles
Neutral position
[In] rated current
[Ue] rated operational voltage
690 V AC 50/60 Hz
Network frequency
Suitability for isolation
Yes conforming to EN/IEC 60947-2
Utilisation category
[Icu] rated ultimate short-circuit breaking capacity
85 kA at 240 V AC 50/60 Hz for UL 508
10 kA Icu at 660/690 V AC 50/60 Hz for IEC 60947-2
35 kA Icu at 525 V AC 50/60 Hz for IEC 60947-2
20 kA at 600 V AC 50/60 Hz for UL 508
50 kA at 480 V AC 50/60 Hz for UL 508
36 kA Icu at 500 V AC 50/60 Hz for IEC 60947-2
50 kA Icu at 380/415 V AC 50/60 Hz for IEC 60947-2
50 kA Icu at 440 V AC 50/60 Hz for IEC 60947-2
90 kA Icu at 220/240 V AC 50/60 Hz for IEC 60947-2
Performance level
N 50 kA 415 V AC
Trip unit technology
Thermal-magnetic
Trip unit protection functions
Circuit breaker mounting mode
[Ui] rated insulation voltage
800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
[Ics] rated service short-circuit breaking capacity
10 kA at 660/690 V AC 50/60 Hz for IEC 60947-2
35 kA at 525 V AC 50/60 Hz for IEC 60947-2
36 kA at 500 V AC 50/60 Hz for IEC 60947-2
50 kA at 380/415 V AC 50/60 Hz for IEC 60947-2
50 kA at 440 V AC 50/60 Hz for IEC 60947-2
90 kA at 220/240 V AC 50/60 Hz for IEC 60947-2
Mechanical durability
Electrical durability
10000 cycles at 690 V In
20000 cycles at 690 V In/2
30000 cycles at 440 V In
50000 cycles at 440 V In/2
Mounting support
Connections upstream
Connections downstream
Connection pitch
Protection type
L: for overload protection (thermal)
I: for short-circuit protection (magnetic)
Trip unit rating
Long-time pick-up adjustment type Ir (thermal protection)
Date: 04/17/2024
Measurements: 10X15X24
Locator: A11P3A
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment is exclusively the buyer's.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Tripolar Circuit Breaker SCHNEIDER NSX100N TM32D 22/32A 800V 8KV
New product out of manufacturer's box
Brand: SCHNEIDER
Model: NSX 100N
A circuit breaker is an electrical device designed to protect electrical circuits from overloads and short circuits. It acts as an automatic switch that turns off the electrical circuit in case of abnormal conditions that may pose a risk of damage to equipment or fire.
Circuit breakers are essential components in residential, commercial, and industrial electrical systems, and are installed in electrical panels to protect electrical wires and connected equipment. They work by monitoring the electrical current flowing through the circuit and automatically switching off when they detect an excessive current that could cause damage.
Main
Range
Compact
Product name
Compact NSX
Product line
ComPact NSX100...250
Device short name
NSX100N
Product or component type
Circuit breaker
Device application
Distribution
Number of poles
4P
Description of protected poles
3t
Neutral position
Left
[In] rated current
32 A at 40 °C
[Ue] rated operational voltage
690 V AC 50/60 Hz
Network type
AC
Network frequency
50/60 Hz
Suitability for isolation
Yes conforming to EN/IEC 60947-2
Utilisation category
Category A
[Icu] rated ultimate short-circuit breaking capacity
85 kA at 240 V AC 50/60 Hz for UL 508
10 kA Icu at 660/690 V AC 50/60 Hz for IEC 60947-2
35 kA Icu at 525 V AC 50/60 Hz for IEC 60947-2
20 kA at 600 V AC 50/60 Hz for UL 508
50 kA at 480 V AC 50/60 Hz for UL 508
36 kA Icu at 500 V AC 50/60 Hz for IEC 60947-2
50 kA Icu at 380/415 V AC 50/60 Hz for IEC 60947-2
50 kA Icu at 440 V AC 50/60 Hz for IEC 60947-2
90 kA Icu at 220/240 V AC 50/60 Hz for IEC 60947-2
Performance level
N 50 kA 415 V AC
Trip unit name
TM-D
Trip unit technology
Thermal-magnetic
Trip unit protection functions
LI
Control type
Toggle
Circuit breaker mounting mode
Fixed
Complementary
[Ui] rated insulation voltage
800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
8 kV
[Ics] rated service short-circuit breaking capacity
10 kA at 660/690 V AC 50/60 Hz for IEC 60947-2
35 kA at 525 V AC 50/60 Hz for IEC 60947-2
36 kA at 500 V AC 50/60 Hz for IEC 60947-2
50 kA at 380/415 V AC 50/60 Hz for IEC 60947-2
50 kA at 440 V AC 50/60 Hz for IEC 60947-2
90 kA at 220/240 V AC 50/60 Hz for IEC 60947-2
Mechanical durability
50000 cycles
Electrical durability
10000 cycles at 690 V In
20000 cycles at 690 V In/2
30000 cycles at 440 V In
50000 cycles at 440 V In/2
Mounting support
Backplate
Connections upstream
Front
Connections downstream
Front
Connection pitch
35 mm
Protection type
L: for overload protection (thermal)
I: for short-circuit protection (magnetic)
Trip unit rating
32 A at 40 °C
Long-time pick-up adjustment type Ir (thermal protection)
Adjustable
Date: 04/17/2024
Weight: 1.690
Measurements: 10X15X24
Locator: A11P3A
