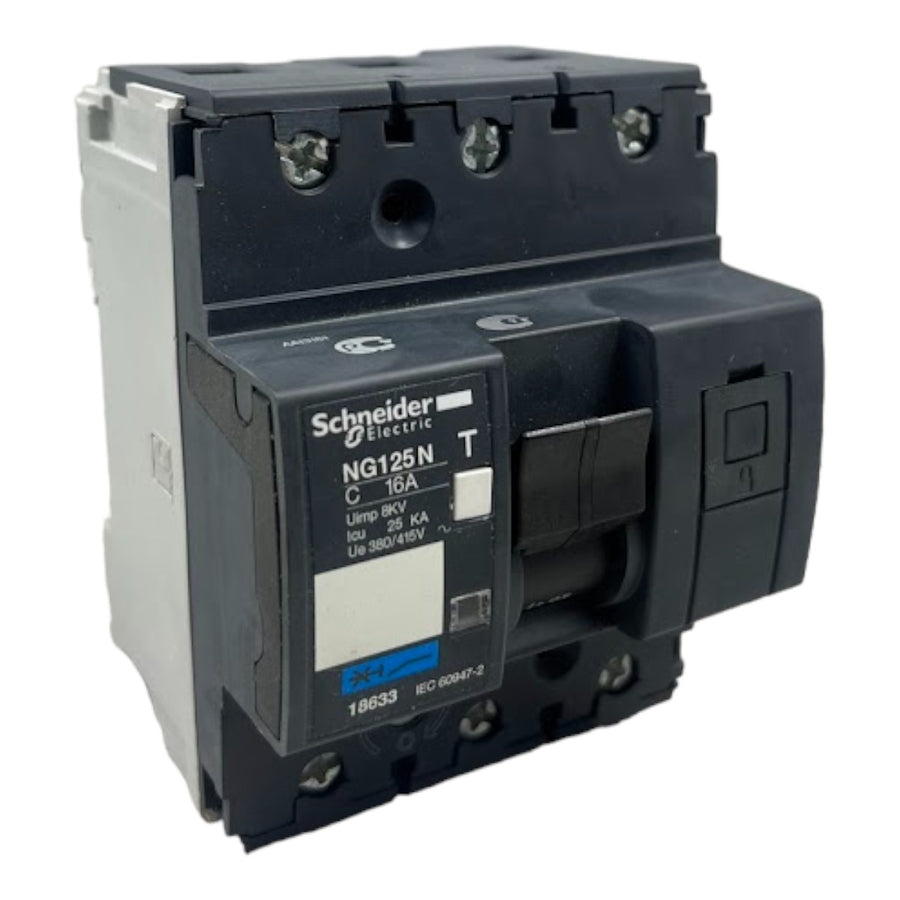

Schneider NG125N Three-Pole Circuit Breaker C-Curve 16A 415V 25kA
12 in stock- Code
- WS4189
- GTIN
- 3303430186335
- Category
- Three-pole circuit breaker
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- SCHNEIDER
- SKU / Internal code
- WS4189
- GTIN
- 3303430186335
- Product type
- Three-pole circuit breaker
- Condition
- Condition shown in specs
- Stock
- 12 in stock
- Brand
- Schneider
- Model
- NG125N 18633
- Date
- 04/18/2024
- Weight
- 0.75 kg
- Measurements
- 12x12x8
- Locator
- B12P2A
About this item
Schneider NG125N C Curve 16A 415V 25kA 18633 Three-Pole Circuit Breaker
New product in manufacturer's box
Brand: Schneider
Model: NG125N 18633
A circuit breaker is an electrical device designed to protect electrical circuits from overloads and short circuits. It functions as an automatic switch that disconnects the electrical circuit when it detects abnormal conditions that could pose a risk of damage to equipment or fire.
Circuit breakers are essential components in residential, commercial, and industrial electrical systems, installed in electrical panels to protect electrical wires and connected equipment. They operate by monitoring the electrical current flowing through the circuit and automatically tripping when they detect excessive current that could cause damage.
NG125N 3P C CURVE 16A 500V CIRCUIT BREAKER
Product or component type
Modular circuit breaker
Device short name
Device application
Poles description
Number of protected poles
[In] rated current
Trip unit technology
Thermal-magnetic
Time-current curve
Breaking capacity
20 kA Icu at 10 kA Icu at 500 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
25 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
50 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
Utilization category
Category A conforming to IEC 60947-2
Suitability for isolation
Yes conforming to IEC 60947-2
Network frequency
[Ue] rated operational voltage
380...415 V AC 50/60 Hz
500 V AC 50/60 Hz
220...240 V AC 50/60 Hz
440 V AC 50/60 Hz
Magnetic tripping limit
[Ics] rated service breaking capacity
37.5 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz
18.75 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz
15 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz
7.5 kA 75 % conforming to EN/IEC 60947-2 - 500 V AC 50/60 Hz
20 kA 100 % conforming to EN/IEC 60947-2 - [Ui] rated insulation voltage
690 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kV conforming to EN/IEC 60947-2
Contact position indicator
Manual trip test
Local signaling
ON/OFF indication
Mounting support
Mounting position
Combined busbar distribution block compatibility
Date: 04/18/2024
Measurements: 12x12x8
Locator: B12P2A
Dear customers, if the material is for resale, the ST (Tax Substitution) value may apply.
If the transaction is subject to this tax, the buyer is solely responsible for payment.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Schneider NG125N C Curve 16A 415V 25kA 18633 Three-Pole Circuit Breaker
New product in manufacturer's box
Brand: Schneider
Model: NG125N 18633
A circuit breaker is an electrical device designed to protect electrical circuits from overloads and short circuits. It functions as an automatic switch that disconnects the electrical circuit when it detects abnormal conditions that could pose a risk of damage to equipment or fire.
Circuit breakers are essential components in residential, commercial, and industrial electrical systems, installed in electrical panels to protect electrical wires and connected equipment. They operate by monitoring the electrical current flowing through the circuit and automatically tripping when they detect excessive current that could cause damage.
NG125N 3P C CURVE 16A 500V CIRCUIT BREAKER
Main
Product line
NG125
Range
Acti 9
Product name
Acti9 NG125
Product or component type
Modular circuit breaker
Device short name
NG125N
Device application
Distribution
Poles description
3P
Number of protected poles
3
[In] rated current
16 A at 40 °C
Network type
AC
DC
Trip unit technology
Thermal-magnetic
Time-current curve
C
Breaking capacity
20 kA Icu at <= 375 V DC conforming to EN/IEC 60947-2
10 kA Icu at 500 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
25 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
50 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
Utilization category
Category A conforming to IEC 60947-2
Suitability for isolation
Yes conforming to IEC 60947-2
Complementary
Network frequency
50/60 Hz
[Ue] rated operational voltage
<= 375 V DC
380...415 V AC 50/60 Hz
500 V AC 50/60 Hz
220...240 V AC 50/60 Hz
440 V AC 50/60 Hz
Magnetic tripping limit
8 x In
[Ics] rated service breaking capacity
37.5 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz
18.75 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz
15 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz
7.5 kA 75 % conforming to EN/IEC 60947-2 - 500 V AC 50/60 Hz
20 kA 100 % conforming to EN/IEC 60947-2 - <= 375 V DC
[Ui] rated insulation voltage
690 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kV conforming to EN/IEC 60947-2
Contact position indicator
Yes
Control type
Manual trip test
Toggle handle
Local signaling
Trip indicator
ON/OFF indication
Mounting mode
Clip-on
Mounting support
35mm DIN rail
Mounting position
Vertical
Combined busbar distribution block compatibility
Yes
Date: 04/18/2024
Weight: 0.750
Measurements: 12x12x8
Locator: B12P2A
