Schneider Tripolar Circuit Breaker EZC100H3080 80A 415v 30kA
Contact us- Code
- WS4516
- GTIN
- 3303430301288
- Category
- Three-pole circuit breaker
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- SCHNEIDER
- SKU / Internal code
- WS4516
- GTIN
- 3303430301288
- Product type
- Three-pole circuit breaker
- Condition
- Condition shown in specs
- Stock
- Contact us
- Brand
- Schneider
- Model
- EZC100H3080
- Category A
- 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
- Date
- 03/05/2024
- Weight
- 0.74 kg
- Measurements
- 14x8x10
- Locator
- A13P2A
About this item

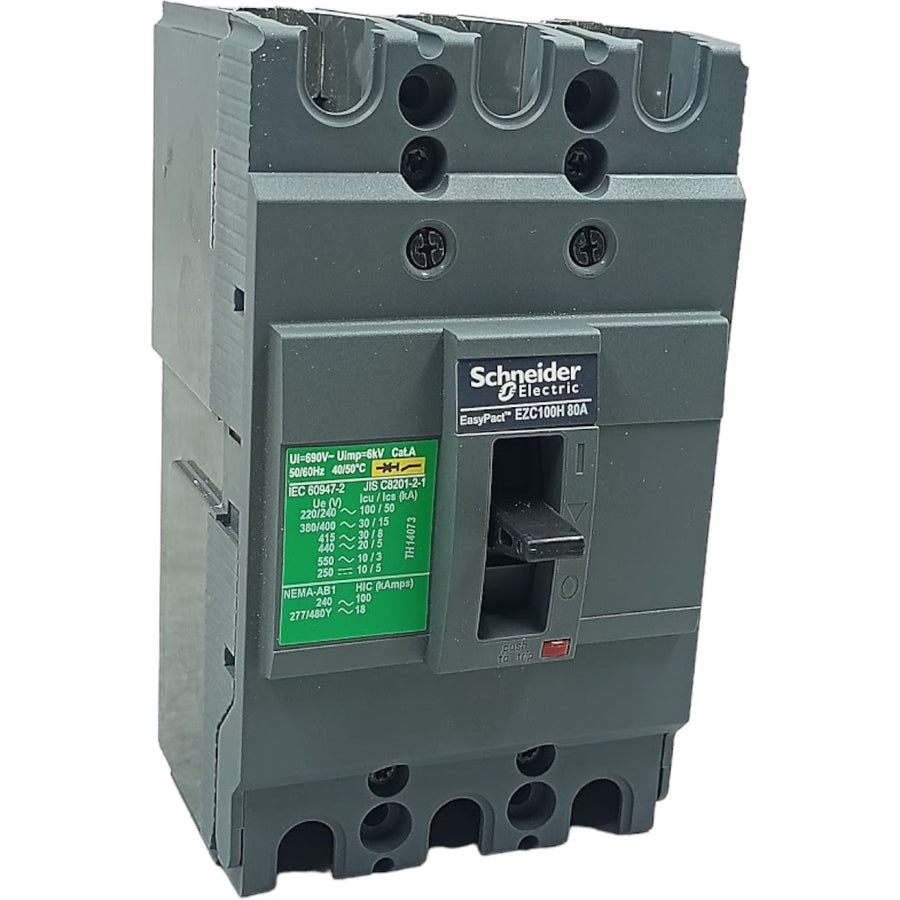

Schneider EZC100H3080 80A 415v 30kA Triple-Pole Circuit Breaker
New product in manufacturer's box
Brand: Schneider
Model: EZC100H3080
A circuit breaker is an electromechanical device designed to protect electrical circuits from electrical overloads and short circuits. It acts as an automatic switch that interrupts the flow of electric current when it detects an abnormal condition in the circuit, such as excessive current.
Circuit breakers are installed in electrical panels or distribution boards and are used in a wide range of applications, from residential electrical systems to high-power industrial systems. They play a fundamental role in preventing damage to electrical equipment, fires, and other safety risks.
When an electrical overload occurs, such as when equipment draws more current than designed, the circuit breaker reacts by heating the internal bimetallic element, which causes the circuit to open. In the event of a short circuit, where a very high current flows through the circuit, the circuit breaker trips instantly to interrupt the current flow and prevent damage to equipment and safety hazards.
CIRCUIT BREAKER 80A 3P EZC100H EZC100H3080
Product or component type
Circuit breaker
Device short name
Easypact EZC100H
Circuit breaker name
Easypact EZC100H
Device application
Poles description
Description of protected poles
Network frequency
[In] rated current
[Ui] rated insulation voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-2
[Ue] rated operational voltage
550 V AC 50/60 Hz conforming to IEC 60947-2
250 V DC conforming to IEC 60947-2
Breaking capacity code
Breaking capacity
10 kA Icu at 125 V DC 1P conforming to IEC 60947-2
10 kA Icu at 250 V DC 2P conforming to IEC 60947-2
10 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity
15 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
5 kA at 125 V DC conforming to IEC 60947-2
5 kA at 250 V DC conforming to IEC 60947-2
50 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2
50 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2
7.5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Suitability for isolation
Yes conforming to IEC 60947-2
Utilization category
Trip unit technology
Thermal-magnetic
Trip unit rating
Protection type
Overload protection
Short-circuit protection
Pollution degree
3 conforming to IEC 60664-1
3 conforming to IEC 947-1
Mounting support
Upstream connections
Downstream connection
Mechanical durability
Electrical durability
Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
Connection pitch
Local signaling
Positive contact indication
Neutral protection setting
Earth-leakage protection
Date: 03/05/2024
Measurements: 14x8x10
Locator: A13P2A
Dear customers, if the material is for resale, the ST (Tax Substitution) value may apply.
If the operation is subject to this tax, payment is the sole responsibility of the buyer.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Schneider EZC100H3080 80A 415v 30kA Triple-Pole Circuit Breaker
New product in manufacturer's box
Brand: Schneider
Model: EZC100H3080
A circuit breaker is an electromechanical device designed to protect electrical circuits from electrical overloads and short circuits. It acts as an automatic switch that interrupts the flow of electric current when it detects an abnormal condition in the circuit, such as excessive current.
Circuit breakers are installed in electrical panels or distribution boards and are used in a wide range of applications, from residential electrical systems to high-power industrial systems. They play a fundamental role in preventing damage to electrical equipment, fires, and other safety risks.
When an electrical overload occurs, such as when equipment draws more current than designed, the circuit breaker reacts by heating the internal bimetallic element, which causes the circuit to open. In the event of a short circuit, where a very high current flows through the circuit, the circuit breaker trips instantly to interrupt the current flow and prevent damage to equipment and safety hazards.
CIRCUIT BREAKER 80A 3P EZC100H EZC100H3080
Main
Product line
EasyPact
Product or component type
Circuit breaker
Device short name
Easypact EZC100H
Circuit breaker name
Easypact EZC100H
Device application
Distribution
Poles description
3P
Description of protected poles
3t
Network type
DC
AC
Network frequency
50/60 Hz
[In] rated current
80 A at 40 °C
[Ui] rated insulation voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-2
[Ue] rated operational voltage
550 V AC 50/60 Hz conforming to IEC 60947-2
250 V DC conforming to IEC 60947-2
Breaking capacity code
H
Breaking capacity
10 kA Icu at 125 V DC 1P conforming to IEC 60947-2
10 kA Icu at 250 V DC 2P conforming to IEC 60947-2
10 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity
15 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
5 kA at 125 V DC conforming to IEC 60947-2
5 kA at 250 V DC conforming to IEC 60947-2
50 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2
50 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2
7.5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Suitability for isolation
Yes conforming to IEC 60947-2
Utilization category
Category A
Trip unit name
TM-D
Trip unit technology
Thermal-magnetic
Trip unit rating
80 A at 50 °C
Protection type
Overload protection
Short-circuit protection
Pollution degree
3 conforming to IEC 60664-1
3 conforming to IEC 947-1
Complementary
Control type
Toggle
Mounting mode
Fixed
Mounting support
Backplate
Upstream connections
Front
Downstream connection
Front
Mechanical durability
8500 cycles
Electrical durability
Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
Connection pitch
25 mm
Local signaling
Positive contact indication
Neutral protection setting
No protection
Earth-leakage protection
None
Date: 03/05/2024
Weight: 0.740
Measurements: 14x8x10
Locator: A13P2A
