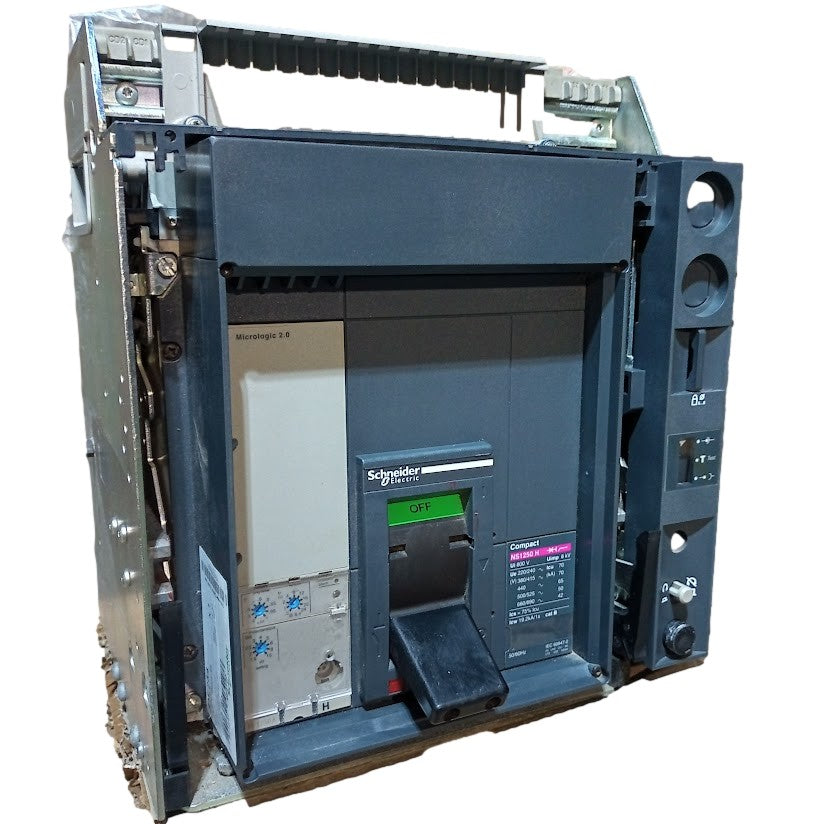

Schneider ComPact NS1250H Three-Pole Circuit Breaker 1250A 800V 70kA
Last unit- Code
- WS147
- Category
- Three-pole circuit breaker
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Schneider
- SKU / Internal code
- WS147
- Product type
- Three-pole circuit breaker
- Condition
- Condition shown in specs
- Stock
- Last unit
- Brand
- Schneider
- Model
- NS1250H
- L
- for overload protection (long delay)
- I
- for short-circuit protection (instantaneous)
- Date
- 22/05/2023
- Weight
- 33.0 kg
- Dimensions
- 30x28x32
- Locator
- B4P2C
About this item
Schneider ComPact NS1250H 1250A 415v 70kA Three-Pole Circuit Breaker
New product, out of manufacturer's box
Brand: Schneider
ComPact NS630b...1600
Short device name
NS1250H Compact
Product or component type
Circuit breaker
Device application
Number of poles
Protected pole description
(In) rated current up to 65 °C
1250 A at 50 °C
[Ue] rated operational voltage
690 V AC 50/60 Hz
Network frequency
Suitability for isolation
Yes, conforming to EN/IEC 60947-2
Utilization category
[Icu] rated ultimate short-circuit breaking capacity
42 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
Performance level
H 70 kA 415 V AC
Trip unit technology
Trip unit protection functions
Circuit breaker mounting mode
[Ui] rated insulation voltage
800 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kV conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity
50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
30 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
40 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
[Icw] rated short-time withstand current
19.2 kA 1s conforming to IEC 60947-2
Mechanical durability
Electrical durability
2000 cycles at 690 V In
3000 cycles at 690 V In/2
4000 cycles at 440 V In
5000 cycles at 440 V In/2
Mounting support
Upstream connection
Downstream connection
Connection offset
Protection type
L: for overload protection (long delay)
I: for short-circuit protection (instantaneous)
Trip unit rating
1250 A at 50 °C
Long-time pick-up adjustment type Ir (thermal protection)
9 adjustable settings
[Ir] long-time protection pick-up adjustment range
Long-time protection delay adjustment type tr
9 adjustable settings
[tr] long-time protection delay adjustment range
12.5…600 s at 1.5 x Ir
0.5…24 s at 6 x Ir
0.7…16.6 s at 7.2 x Ir
Instantaneous protection pick-up adjustment type Ii
[Ii] instantaneous protection pick-up adjustment range
Earth leakage protection
Zone Selective Interlocking (ZSI)
Auxiliary contact composition
Local signaling
For fault indication 4 LEDs (red)
For overload 1 LED (yellow)
Date: 22/05/2023
Dimensions: 30x28x32
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the payment responsibility rests solely with the buyer.
Cabo Eletro Comercial ltda thanks you
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Schneider ComPact NS1250H 1250A 415v 70kA Three-Pole Circuit Breaker
New product, out of manufacturer's box
Brand: Schneider
Model: NS1250H
Main
Range
Compact
Product name
Compact NS
Product range
ComPact NS630b...1600
Short device name
NS1250H Compact
Product or component type
Circuit breaker
Device application
Distribution
Number of poles
3P
Protected pole description
3D
(In) rated current up to 65 °C
1250 A at 50 °C
[Ue] rated operational voltage
690 V AC 50/60 Hz
Network type
AC
Network frequency
50/60 Hz
Suitability for isolation
Yes, conforming to EN/IEC 60947-2
Utilization category
Category B
[Icu] rated ultimate short-circuit breaking capacity
42 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
Performance level
H 70 kA 415 V AC
Trip unit name
Micrologic 2.0
Trip unit technology
Electronic
Trip unit protection functions
LI
Control type
Rotary handle
Toggle
Circuit breaker mounting mode
Fixed
Complementary
[Ui] rated insulation voltage
800 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kV conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity
50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
30 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
40 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
[Icw] rated short-time withstand current
19.2 kA 1s conforming to IEC 60947-2
Mechanical durability
10000 cycles
Electrical durability
2000 cycles at 690 V In
3000 cycles at 690 V In/2
4000 cycles at 440 V In
5000 cycles at 440 V In/2
Power losses
44 W
Mounting support
Backplate
Upstream connection
Front
Downstream connection
Front
Connection offset
70 mm
Protection type
L: for overload protection (long delay)
I: for short-circuit protection (instantaneous)
Trip unit rating
1250 A at 50 °C
Long-time pick-up adjustment type Ir (thermal protection)
9 adjustable settings
[Ir] long-time protection pick-up adjustment range
0.4...1 x In
Long-time protection delay adjustment type tr
9 adjustable settings
[tr] long-time protection delay adjustment range
12.5…600 s at 1.5 x Ir
0.5…24 s at 6 x Ir
0.7…16.6 s at 7.2 x Ir
Thermal memory
20 min
Instantaneous protection pick-up adjustment type Ii
Adjustable
[Ii] instantaneous protection pick-up adjustment range
1.5...10 x Ir
Earth leakage protection
No
Zone Selective Interlocking (ZSI)
No
Auxiliary contact composition
1 NO/NC
Local signaling
For fault indication 4 LEDs (red)
For overload 1 LED (yellow)
Date: 22/05/2023
Weight: 33,000
Dimensions: 30x28x32
Locator: B4P2C
