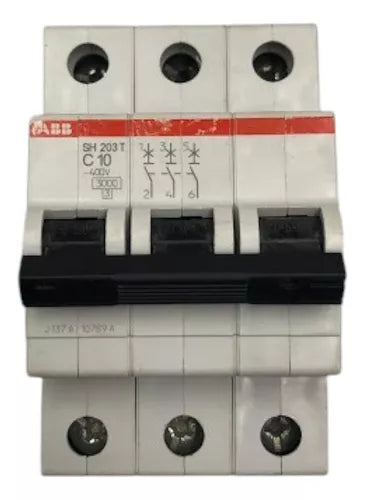

ABB SH203T C10 Tri-polar Circuit Breaker Curve C 10A 400V 3kA

ABB SH203T C10 Tripolar Circuit Breaker Curve C 10A 400V 3kA

NEW product out of manufacturer's box

Brand: ABB

Model: SH203T C10



A circuit breaker is an electrical protection device designed to automatically interrupt the flow of current in a circuit when it detects abnormal conditions, such as overload or short circuit. It acts as an "automatic switch", protecting circuits and connected equipment from damage caused by excessive current.



Inside a circuit breaker, there is a mechanism that moves to open the contacts when the current exceeds a certain limit. This limit can be adjusted so that the circuit breaker operates at different current levels, depending on the application. Interrupting the current prevents cables, devices and other components from being damaged.



Circuit breakers are essential in residential, commercial and industrial systems, where they protect lighting circuits, motors, transformers, control panels and transmission lines. In industrial installations, they are often connected to control systems for remote monitoring, increasing the reliability and safety of the electrical system.



Compact Home SH200T miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanical tripping mechanism for short-circuit protection. They are available in different characteristics (B, C), configurations (1P, 1P+N, 2P, 3P, 3P+N, 4P), breaking capacities (up to 3 kA at 230/400 V AC) and rated currents (up to 40 A). All MCBs in the SH200T product range comply with IEC/EN 60898-1, allowing use in residential applications.



Technical

Standards:

CEI/EN 60898-1

Tripping characteristic:

C

Rated operational voltage:

acc. to IEC 60898-1 400 V

Operating voltage:

Maximum (incl. tolerance) 440 V AC

Minimum 12 V AC

Rated insulation voltage (Ui):

acc. to IEC/EN 60664-1 440 V

Rated impulse withstand voltage (Uimp):

4kV

at 2,000 m 5 kV

at sea level 6.2 kV

Dielectric test voltage:

50/60 Hz-1 min: 2 kV

Input voltage type:

AC

Rated current (In):

10A

Rated short-circuit capacity:

(AC) 3 kA

(400 V AC) 3 kA

(400 V) 3 kA

Rated conditional short-circuit current (Inc):

(230 V) 3 kA

(400 V) 3 kA

Rated frequency (f):

50/60Hz

Power loss:

6.3W

at rated operating conditions per pole 2.1 W

Power supply connection:

Arbitrary

Contact position indication:

ON/OFF

Energy limiting class:

3

Electrical endurance:

20,000 AC cycles

Mechanical endurance:

20,000 cycles

Number of protected poles:

3

Number of poles:

3

Overvoltage category:

III

Opening torque:

2 N·m

Actuator type:

Toggle

Screw terminal type:

Cage terminal

Actuator marking:

I/O

Actuator material:

Insulation Group II, Black, Sealable

Housing material:

Insulation Group II, RAL 7035

DIN rail mounting:

TH35-15 (mounting rail 35 x 15 mm) acc. to IEC 60715

TH35-7.5 (mounting rail 35 x 7.5 mm) acc. to IEC 60715

Mounting position:

any

Recommended screwdriver:

Pozidriv 2

Available accessories:

No

Connection capacity:

Conductor 25/25 mm²

Flexible with ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation size:

acc. to DIN 43880 1

Terminal type:

Screw terminals





Date: 10/16/2024

Weight: 0.288Kg

Measurements: 10x15x24

Locator: A25P2A
